61 31 219 Removing and installing/replacing switch for rear seat backrest adjustment
WARNING: This page is about a different variant/trim than selected.
Remove rear ceiling light. Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

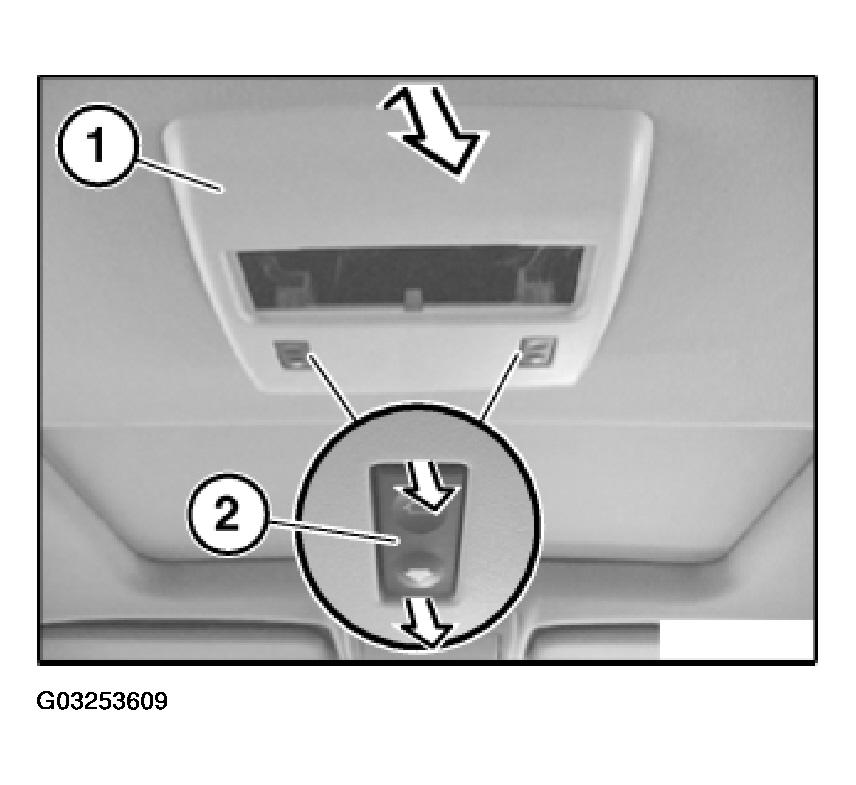

Lever out trim (1) at rear in direction of arrow.
Installation:
Make sure trim (1) is correctly installed and engaged.
Unlock and disconnect plug connections underneath and remove trim (1).
Press out switch for rear seat backrest adjustment (2) in direction of arrow and remove.
Installation:
Make sure switch for rear seat backrest adjustment (2) is correctly installed and engaged.
