61 31 175 Removing and installing/replacing switch for slide/tilt sunroof

WARNING: This page is about a different variant/trim than selected.

Remove front ceiling light. Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

Press out switch for sunroof (1) from inside.

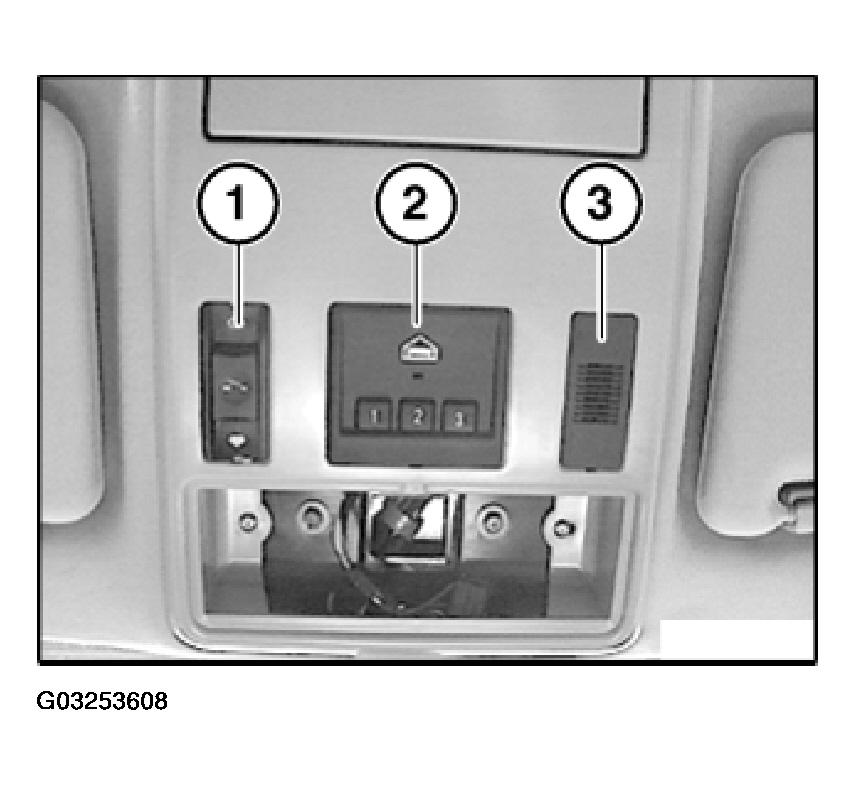

Fig 1: Removing Switch For Slide/Tilt Sunroof
G03253608Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

NOTE: Initialize sunroof.
  1. (2) = Remote control for garage door opening.
  2. (3) = Hands-free microphone.
