Rear Door:

WARNING: This page is about a different variant/trim than selected.

Lever out rocker switch for side window operation (1) in direction of arrow.

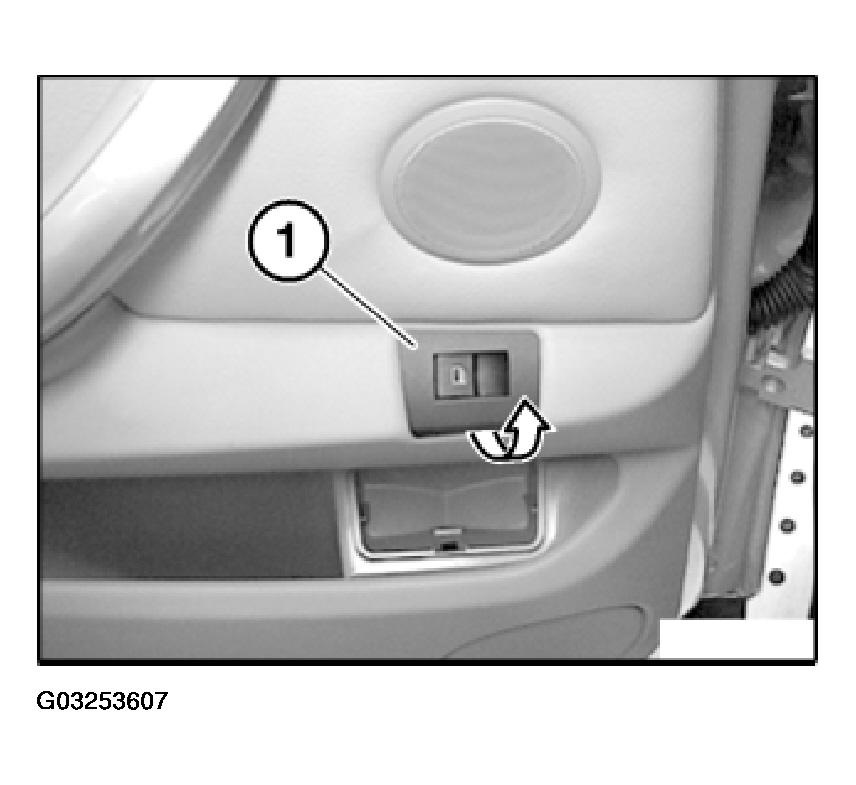

Fig 1: Removing Rocker Switch
G03253607Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection and remove rocker switch for side window operation (1).
