Front Door:

WARNING: This page is about a different variant/trim than selected.

Lever out door switch center (1) in direction of arrow.

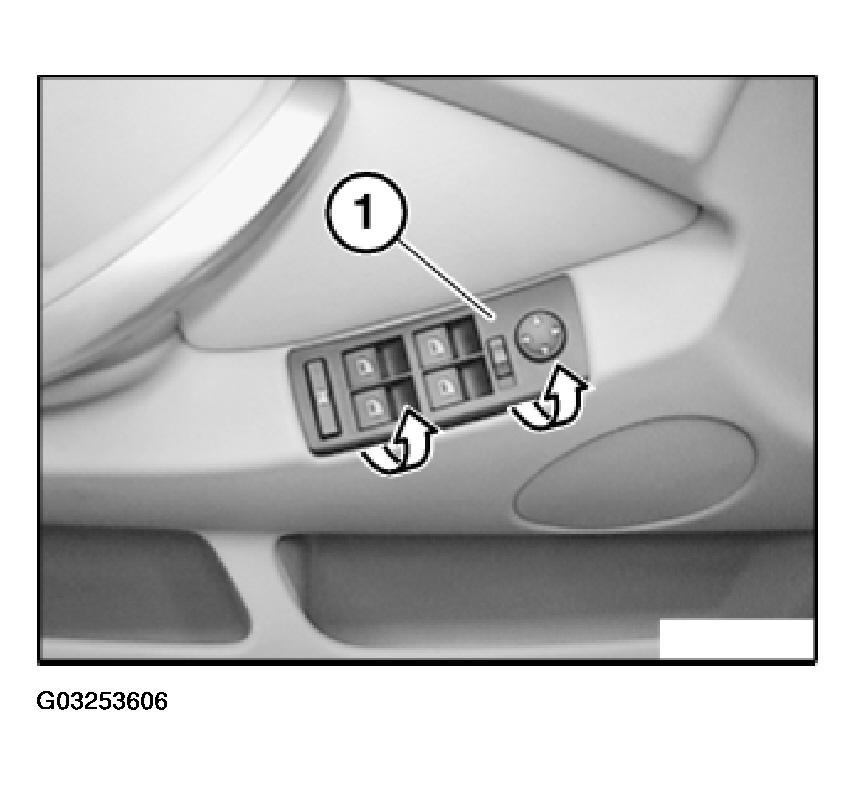

Fig 1: Removing Door Switch Center
G03253606Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection(s) and remove door switch center (1).
