61 31 079 Removing and installing/replacing switch for hazard warning flashers/central locking

WARNING: This page is about a different variant/trim than selected.

Remove finisher for preselector lever. Refer to 51 16 210 REMOVING AND INSTALLING/REPLACING TRIM FOR PRESELECTOR KNOB .

Press out switch for hazard warning flashers/central locking (1) through opening for preselector lever finisher.

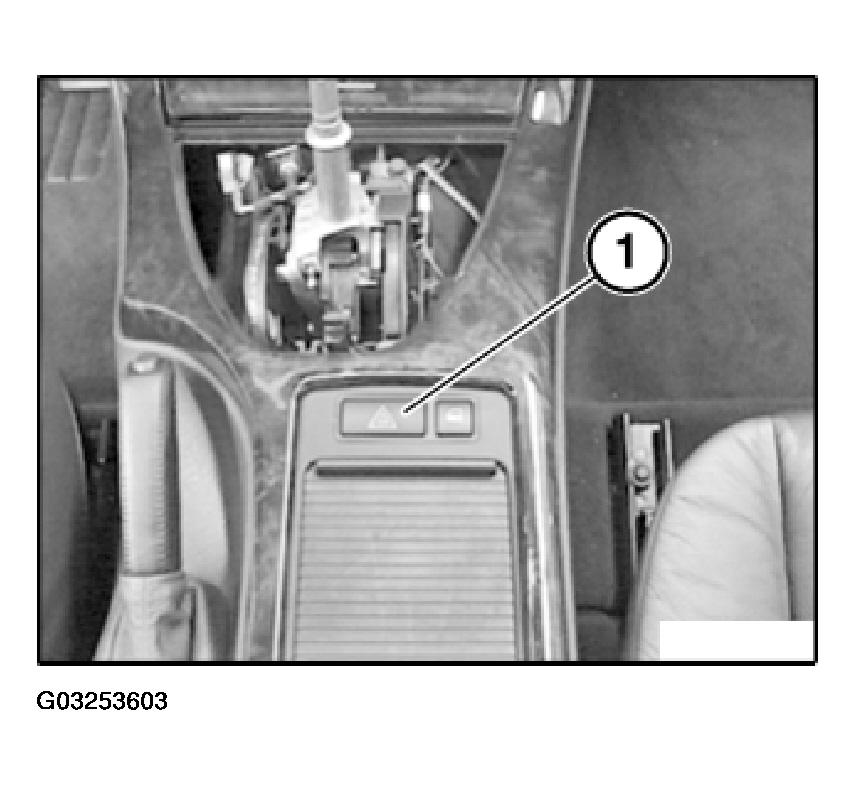

Fig 1: Removing Switch For Hazard Warning Flashers/Central Locking
G03253603Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug.
