61 31 035 Removing and installing/replacing stalk for steering column adjustment

WARNING: This page is about a different variant/trim than selected.

Remove lower section of steering column trim. Refer to STEERING COLUMN TRIM (LOWER SECTION) .

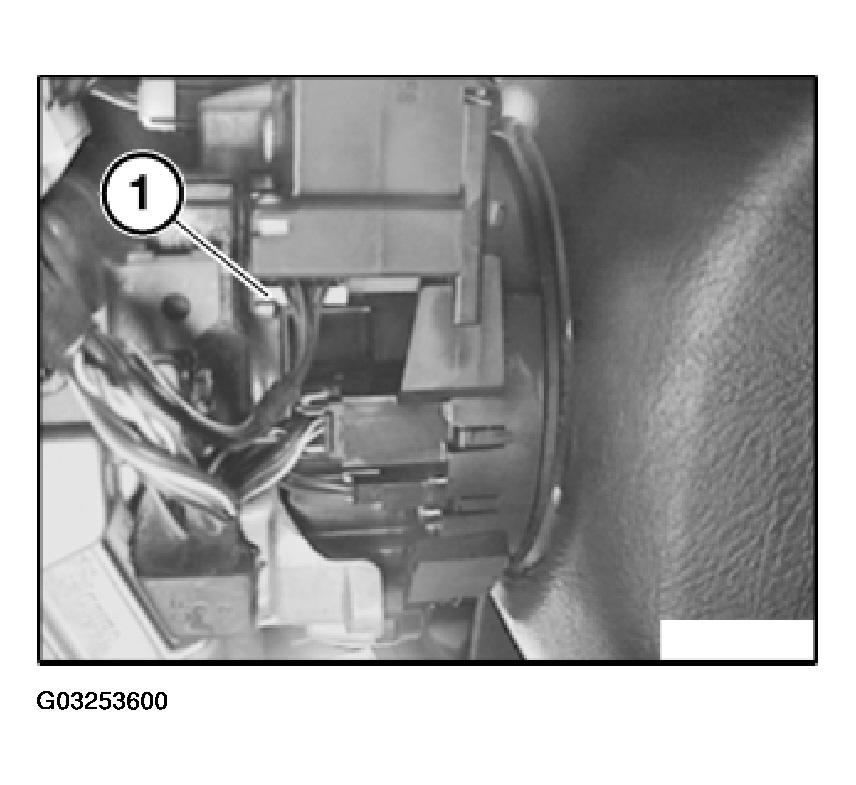

Disconnect plug connection (1).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

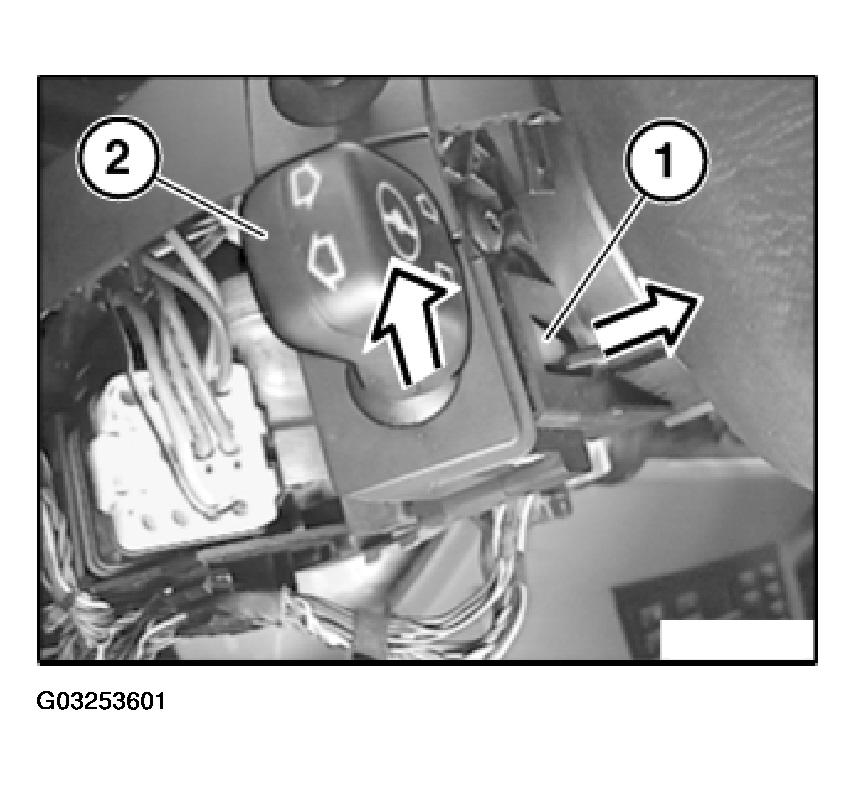

Raise lock (1) in direction of arrow and pull out stalk for steering column adjustment (2) in direction of arrow.

Fig 2: Pulling Out Stalk For Steering Column Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.
