61 31 020 Removing and installing ignition switch

WARNING: This page is about a different variant/trim than selected.

Remove upper section of steering column trim. Refer to STEERING COLUMN TRIM (UPPER SECTION) .

Remove lower section of steering column trim. Refer to STEERING COLUMN TRIM (LOWER SECTION) .

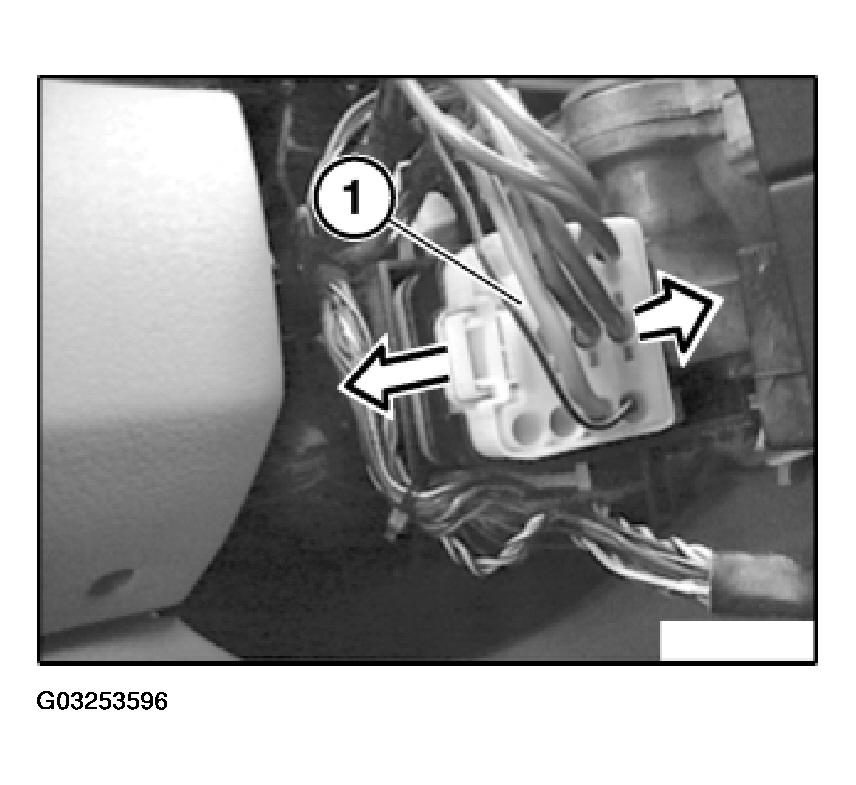

Unlock plug connection (1) and disconnect.

Fig 1: Unlocking Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

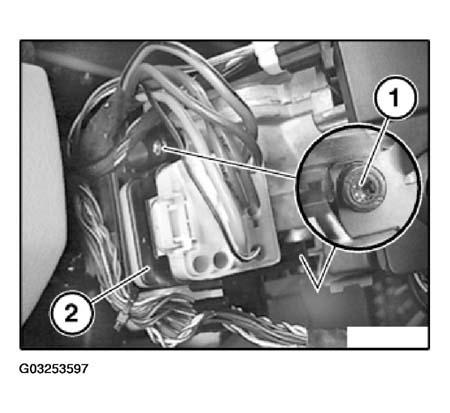

Loosen screws (1).

Fig 2: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move fixture (2) for wiring harness slightly.

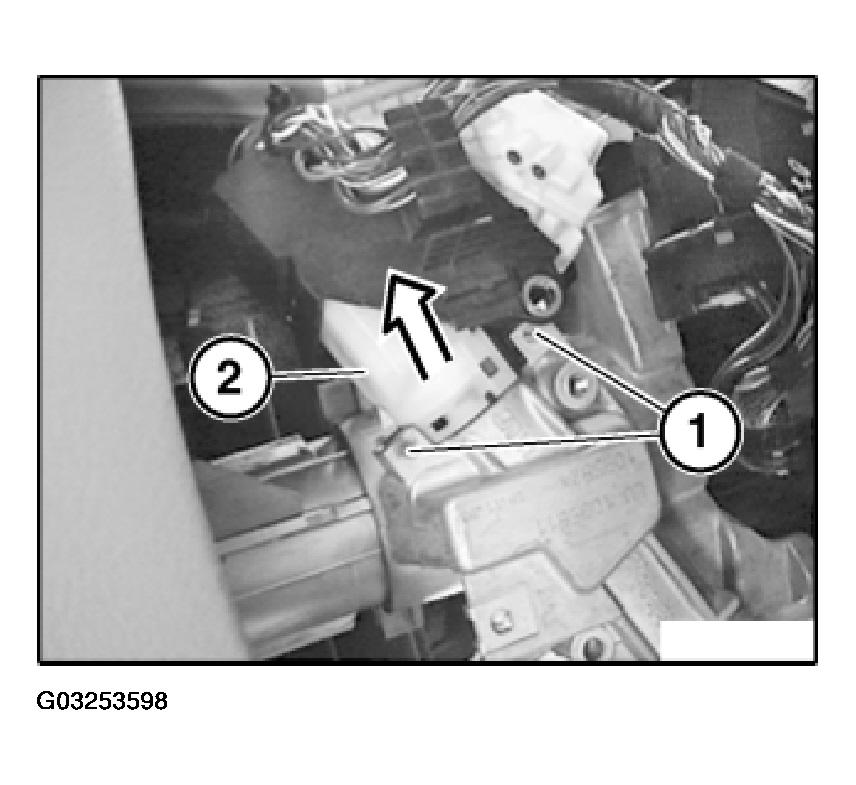

Remove sealing varnish and release headless setscrews (1).

Detach ignition switch (2) in direction of arrow.

Fig 3: Detaching Ignition Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure headless setscrews with sealing varnish.
