61 62 100 Adjusting Jet Nozzle For Rear Window Washer Unit
WARNING: This page is about a different variant/trim than selected.
NOTE:

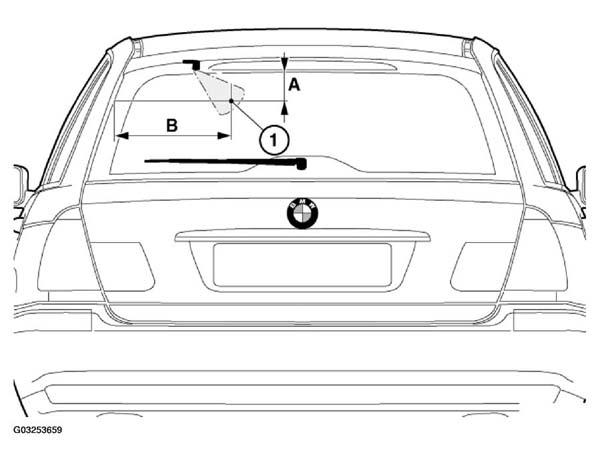

The spray must meet the contact point (1).
Adjustment measurements:
ADJUSTMENT MEASUREMENTS
| Measurement A [mm] | Measurement B [mm] | |
|---|---|---|
| E46 Touring | 100 | 320 |
| E53 | 100 | 450 |
| E83 | 180 | 460 |
IMPORTANT:
Do not insert any pointed objects in nozzle (risk of damage).

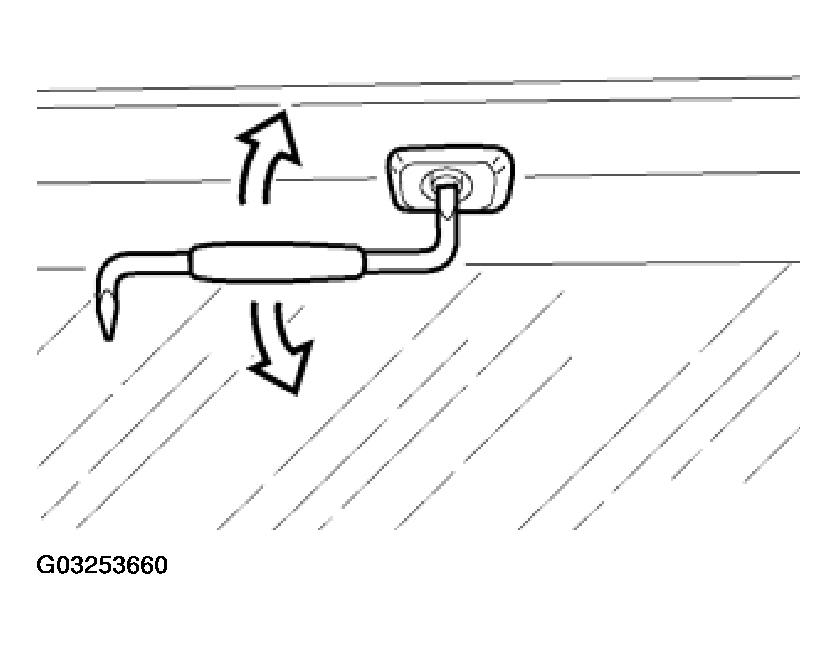

Mark contact point with crepe tape. Adjust jet nozzle with offset screwdriver (3.5 mm) in slot.
