61 62 030 Replacing Wiper Arm For Rear Window Wiper

Special tools required:

• 61 6 060

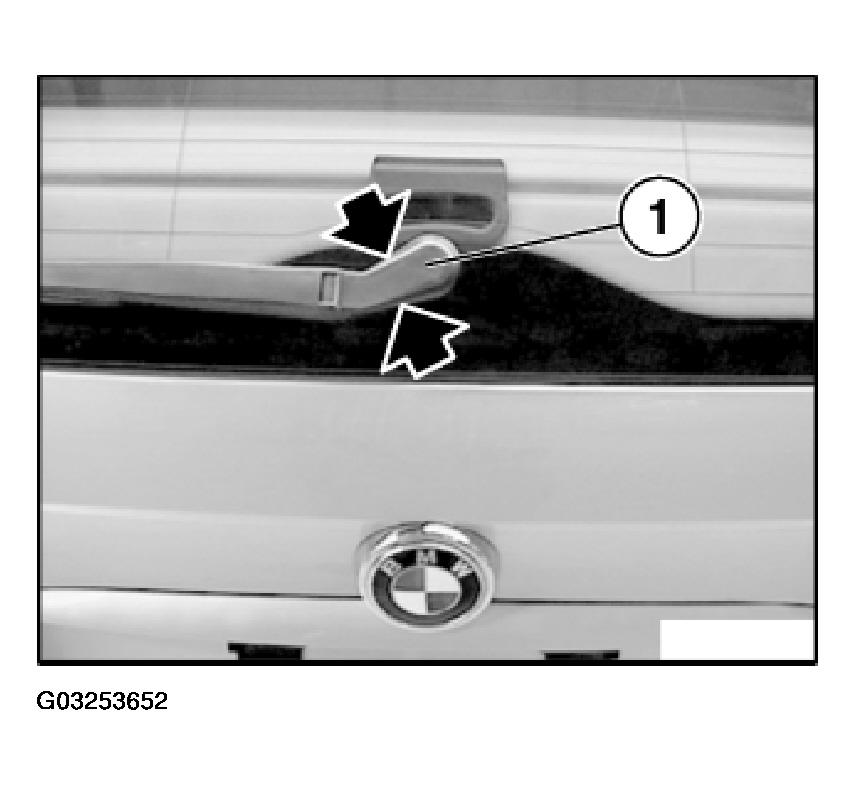

Lever out cap (1) at side and remove.

Fig 1: Removing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

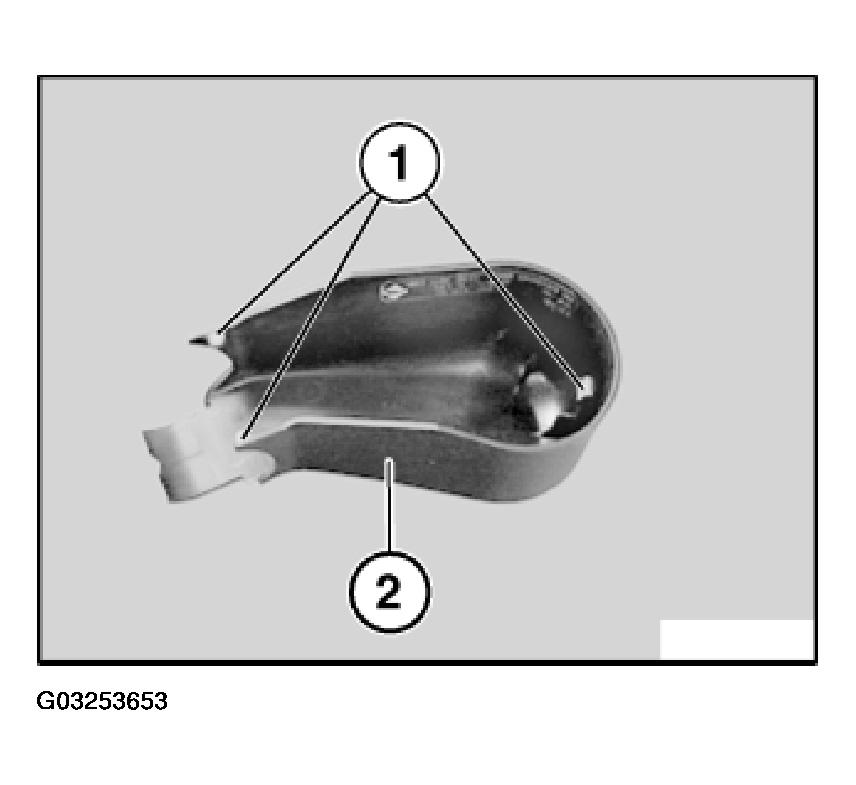

Catches (1) of cap (2) must not be damaged.

Fig 2: Identifying Catches Of Cap

Courtesy of BMW OF NORTH AMERICA, INC.

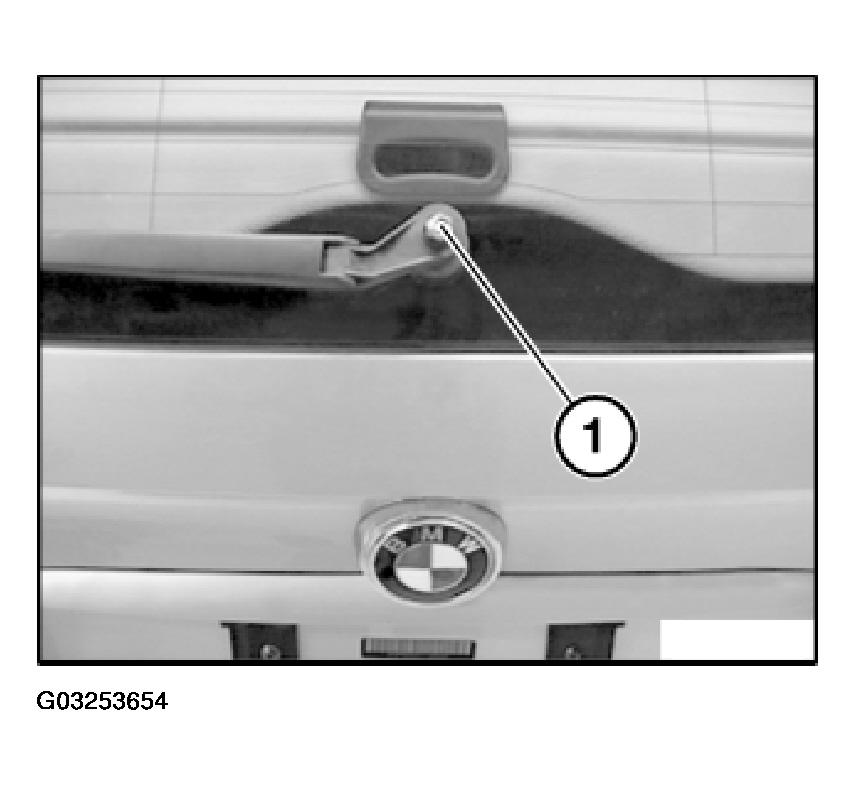

Unscrew nut (1).

Fig 3: Unscrewing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, 61 62 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

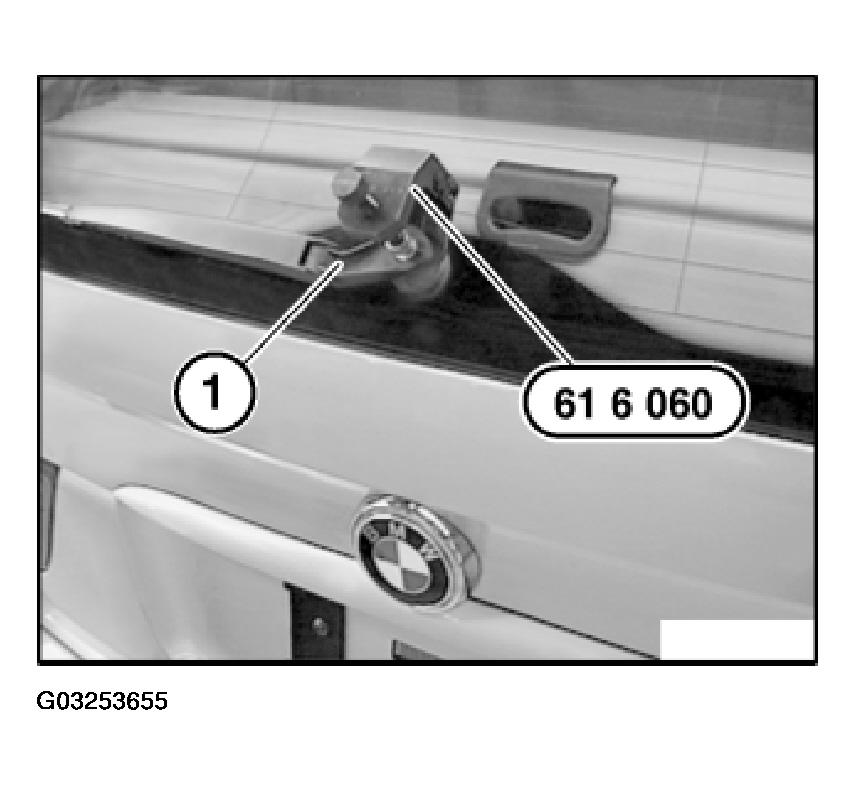

Detach wiper arm (1) with special tool 61 6 060 and remove.

Fig 4: Removing Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Wiper motor must be in end position.

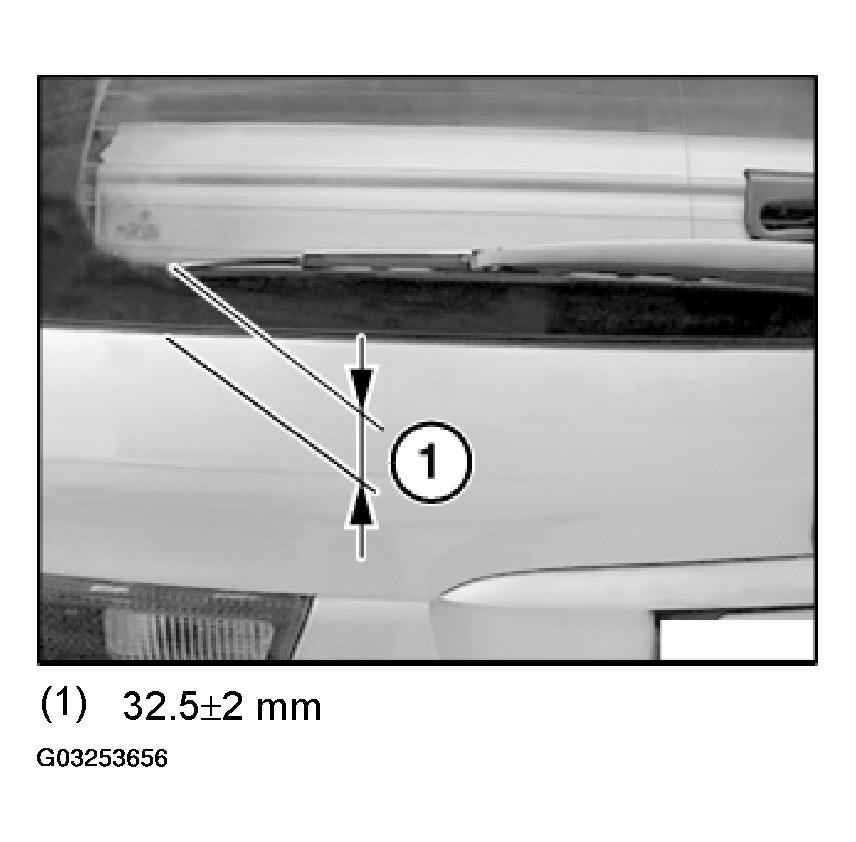

Adjust distance (1) between wiper arm and rear window edge.

Fig 5: Adjusting Distance Between Wiper Arm And Rear Window Edge

Courtesy of BMW OF NORTH AMERICA, INC.

1. 32.5+/-2 mm
