61 13 ... Repairing Ribbon Cables

WARNING: This page is about a different variant/trim than selected.

Special tools required:

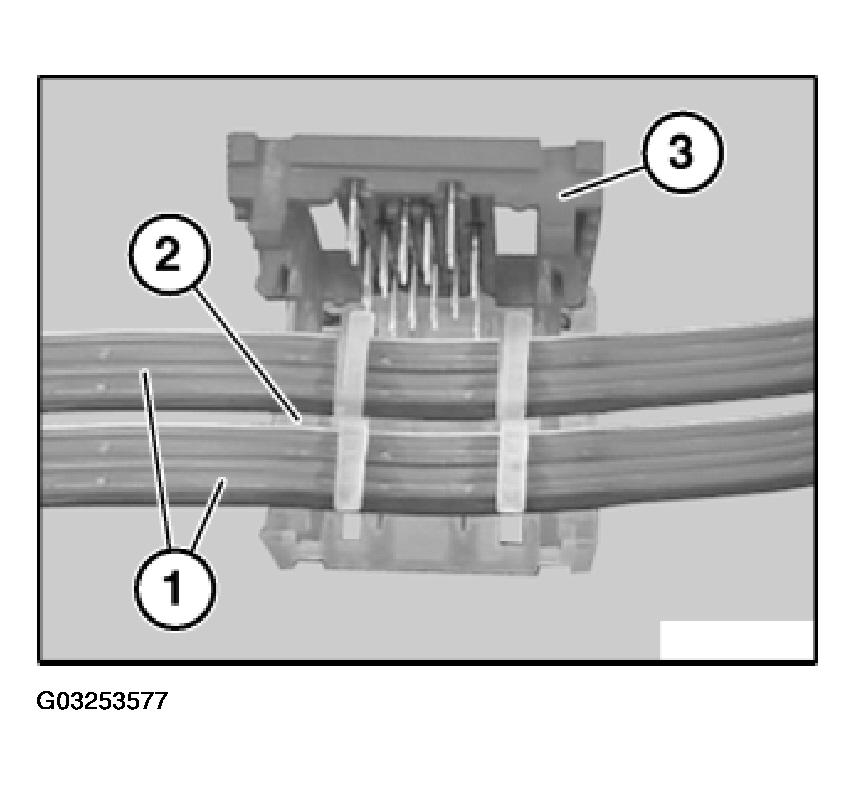

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Placing Ribbon Cables In Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

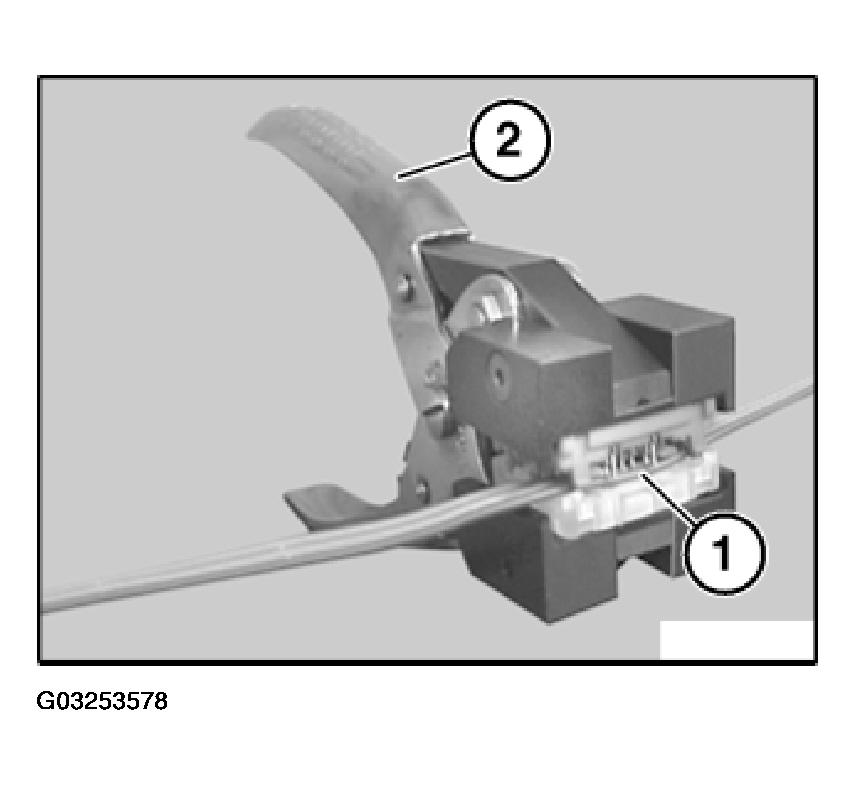

Place connector housing (1) in pliers (2) 61 1 190.

Fig 2: Placing Connector Housing In Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Close pliers (2).
