61 13 ... DME Master Relay Connector

WARNING: This page is about a different variant/trim than selected.

Unlock locking flap (1) of corresponding cable.

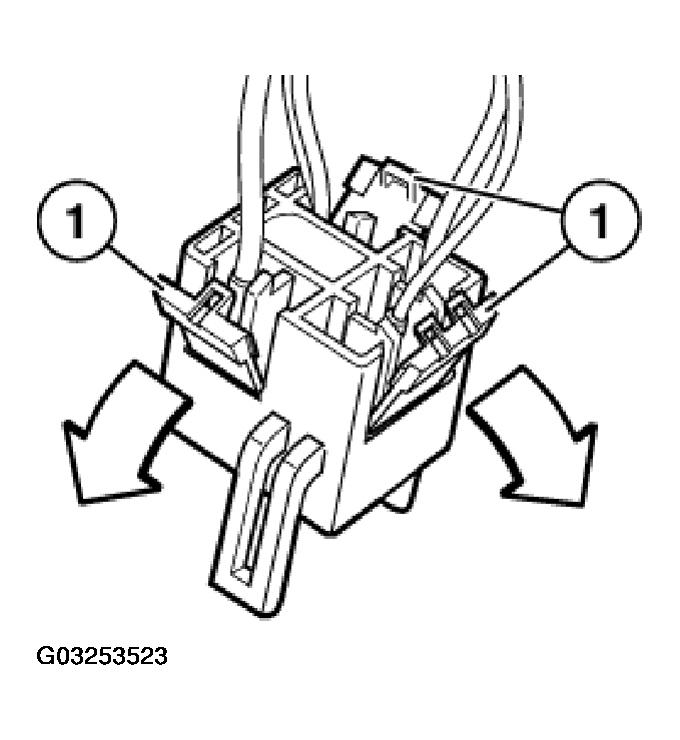

Fig 1: Unlocking Locking Flap Of Corresponding Cable

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

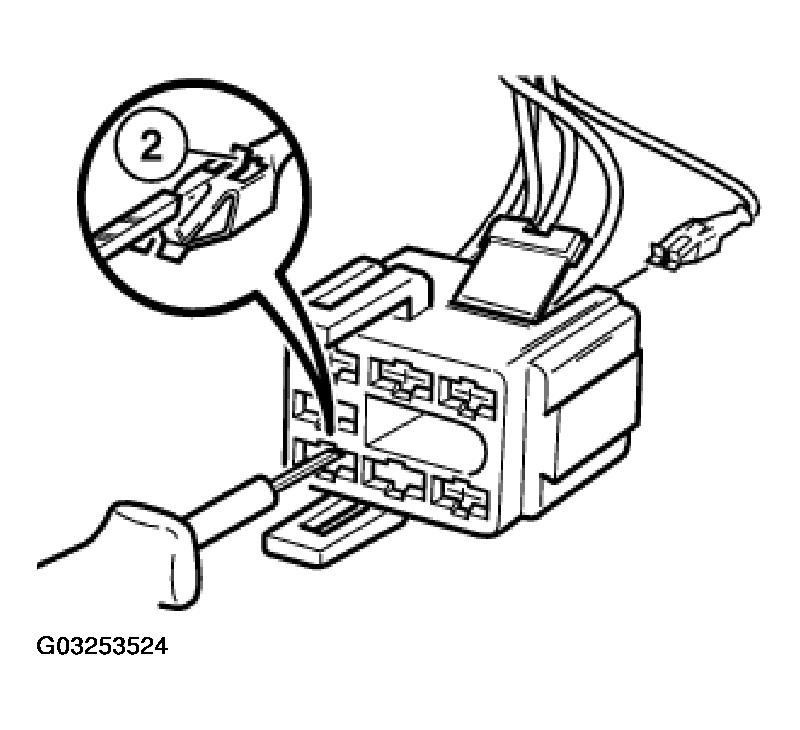

Fig 2: Pressing Back Arrester Hook

Courtesy of BMW OF NORTH AMERICA, INC.
