61 13 ... Base of tab connector housings

WARNING: This page is about a different variant/trim than selected.

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

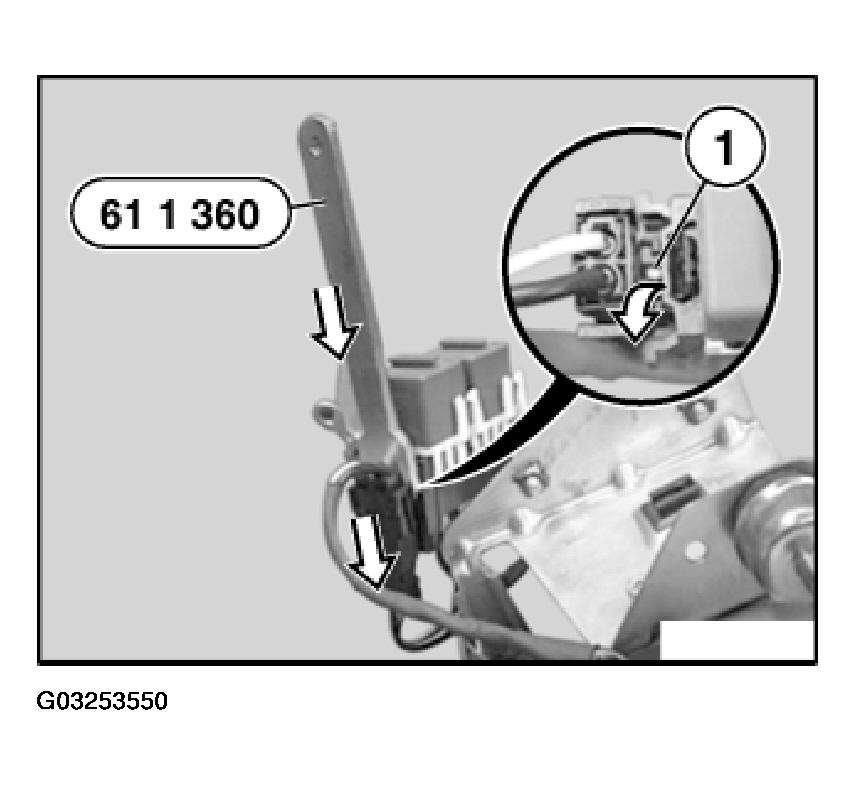

Fig 1: Unlocking Hook
G03253550Courtesy of BMW OF NORTH AMERICA, INC.
