61 33 000 Replacing Horn (Anti-Theft System)

WARNING: This page is about a different variant/trim than selected.

Unscrew nut (1).

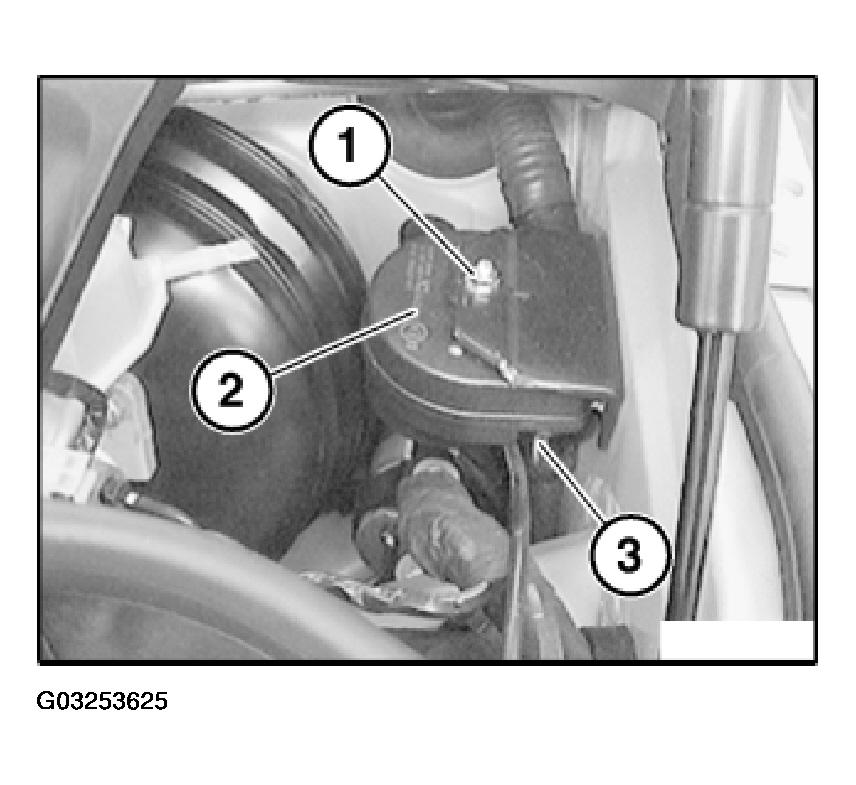

Fig 1: Removing Horn
G03253625Courtesy of BMW OF NORTH AMERICA, INC.

Remove horn (2) from fixture and disconnect plug connection (3).

Remove horn (2).
