61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

Necessary preliminary tasks:

• Remove fog lamp. Refer to 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (FROM 10/2003) or 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (UP TO 10/2003) .

Unlock hose connection (1) and disconnect.

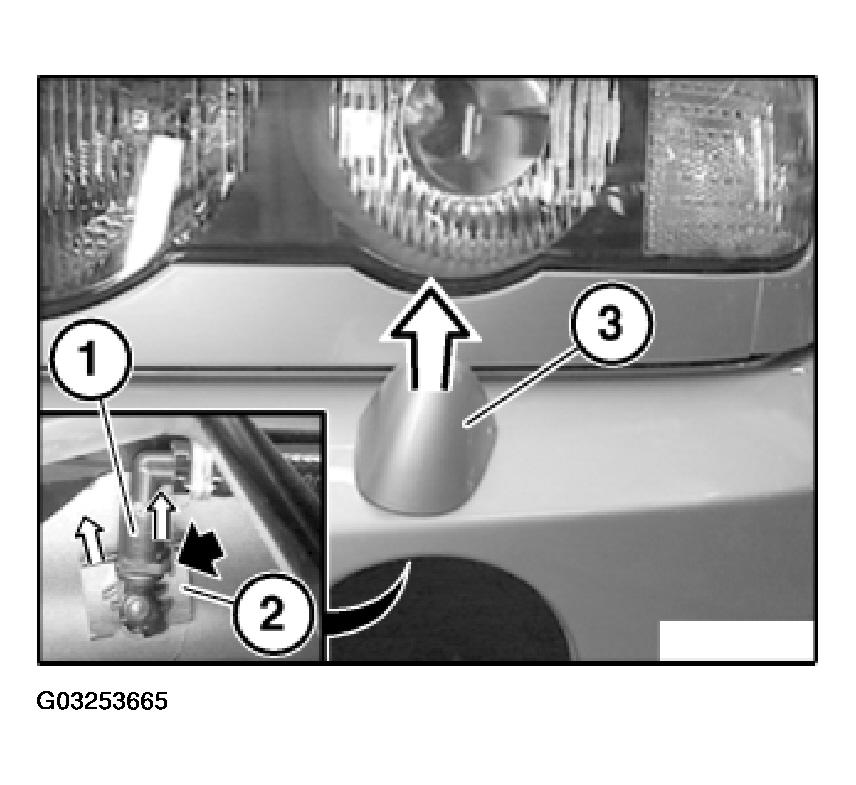

Fig 1: Pulling Out Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainer (2) in direction of arrow and remove.

Pull out spray nozzle of headlight cleaning system (3) in direction of arrow.

Installation:

If necessary, replace backing (1).

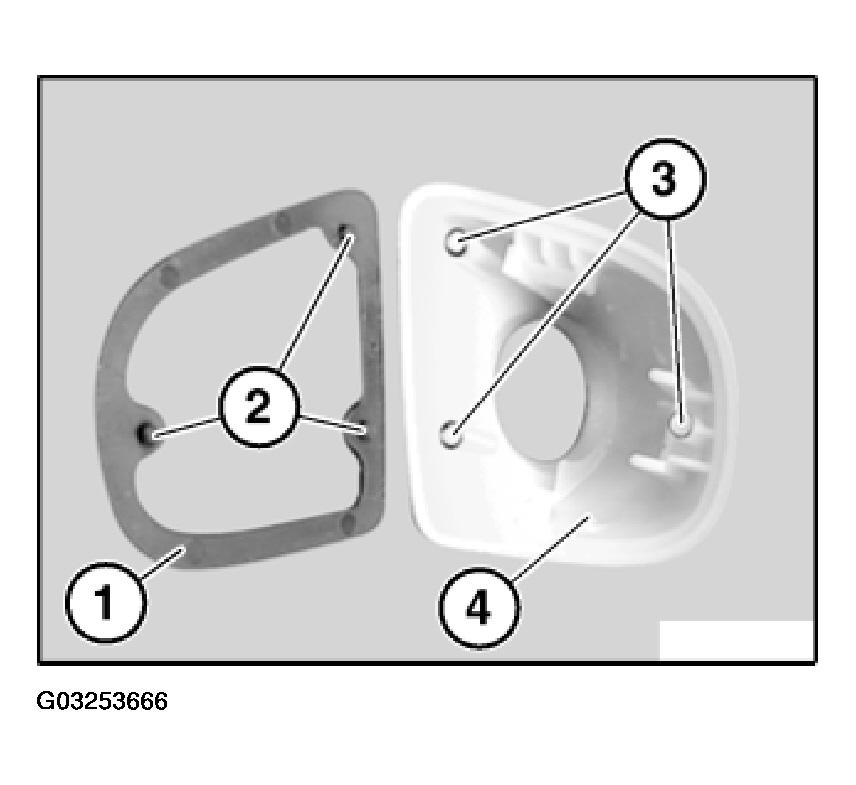

Fig 2: Replacing Backing

Courtesy of BMW OF NORTH AMERICA, INC.

Guides (2) of backing (1) must be located in openings (3) in trim (4).

Replacement:

Unclip spray nozzle (1) from trim (2).

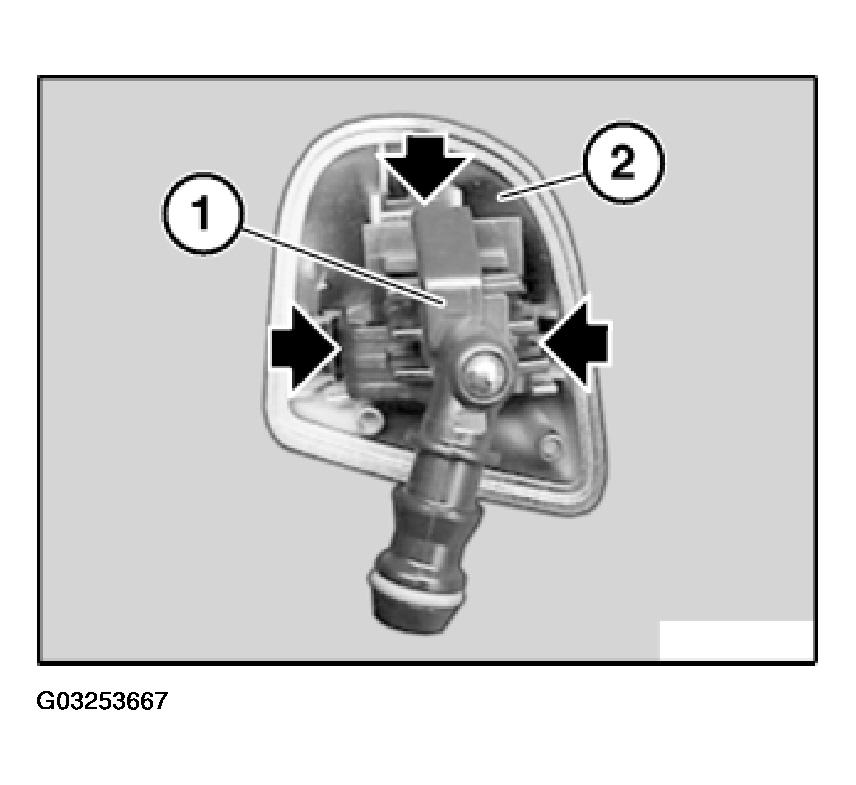

Fig 3: Unclipping Spray Nozzle From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
