61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Remove upper section of steering column trim. Refer to STEERING COLUMN TRIM (UPPER SECTION) .

Remove lower section of steering column trim. Refer to STEERING COLUMN TRIM (LOWER SECTION) .

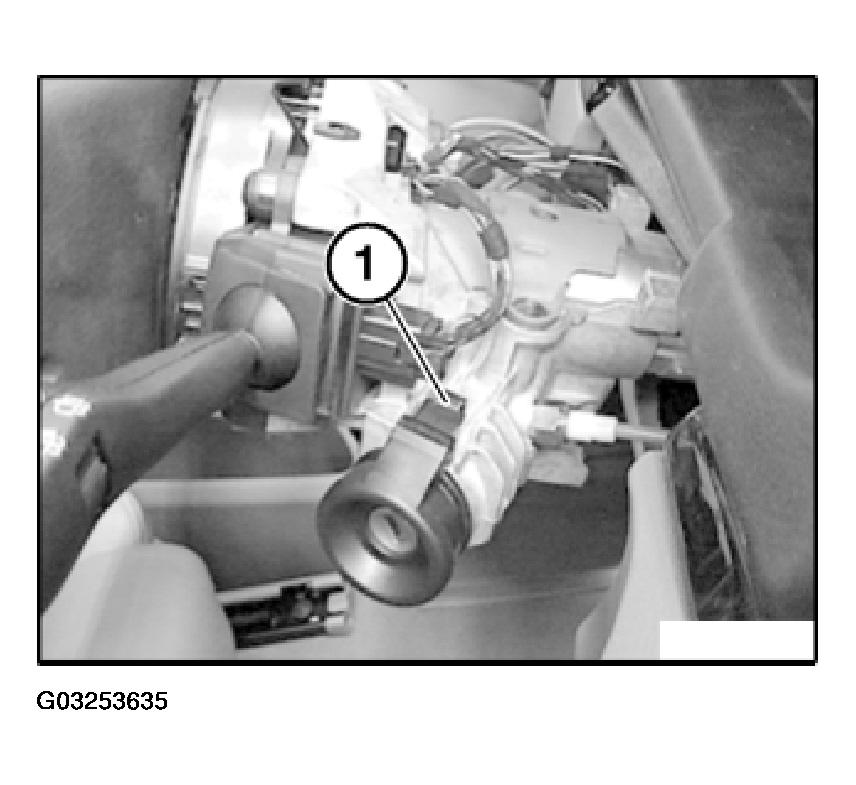

Disconnect plug connection (1).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

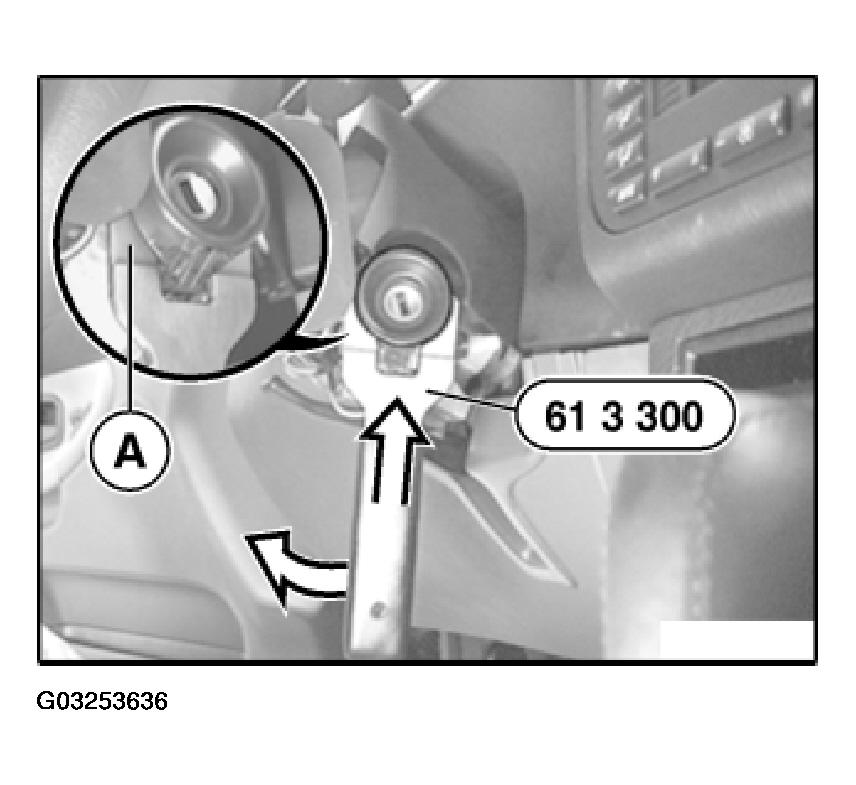

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.

Fig 2: Removing Ring Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
