61 35 795 Removing and installing (replacing) control unit for adaptive headlight

Necessary preliminary tasks:

• Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Unscrew bolt (1).

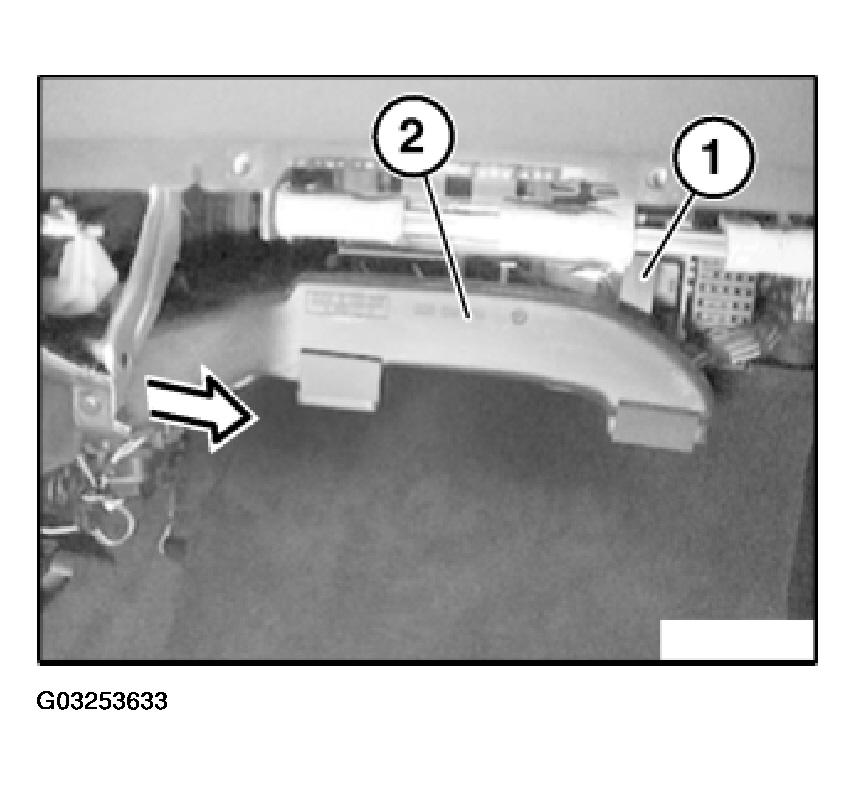

Fig 1: Detaching Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

Detach air duct for right footwell (2) in direction of arrow.

Unfasten plug connection (1) and disconnect.

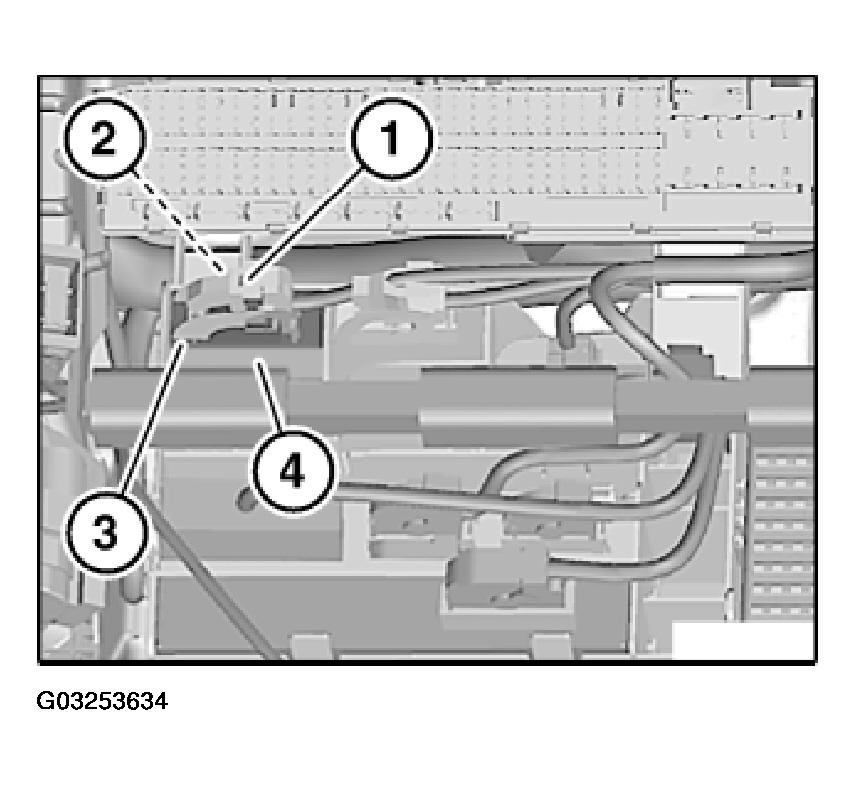

Fig 2: Removing Control Unit For Adaptive Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (2) towards top.

Pull control unit for adaptive headlight (3) out of equipment carrier (4) and remove.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING  .
