61 35 715 Removing and installing/replacing electronic control unit for slide/tilt sunroof (panoramic glass sunroof)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove bracket from roof liner at front, refer to 51 44 020 REMOVING AND INSTALLING/REPLACING BRACKET ON ROOF LINING AT FRONT
NOTE:

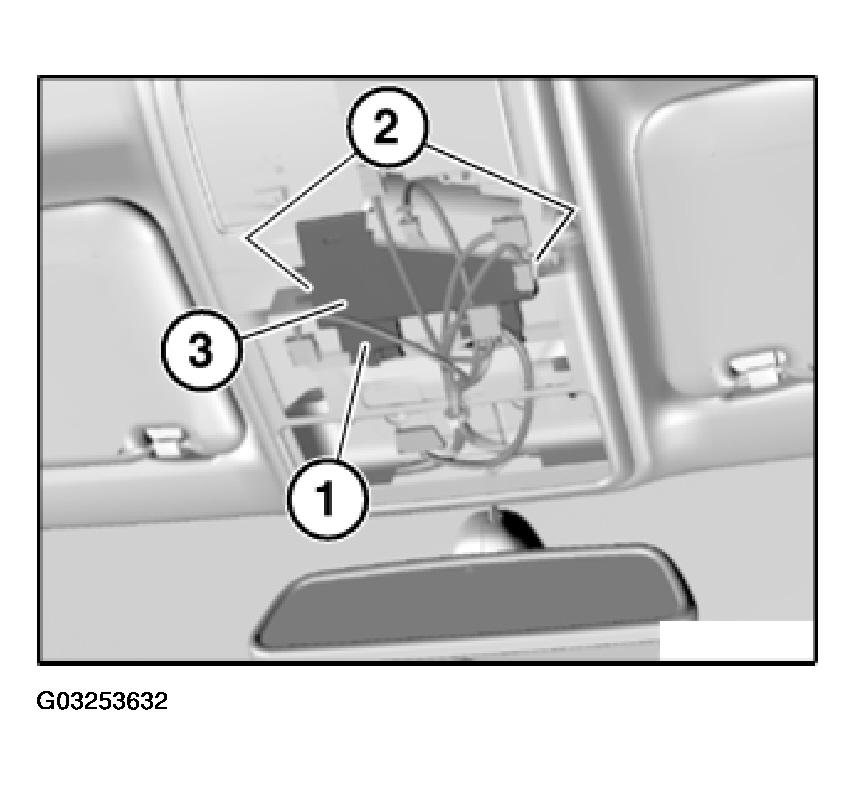

Secure drive for slide/tilt sunroof (3) against falling out.
Release screws (2).
Lower control unit for slide/tilt sunroof (3).
Unlock and disconnect plug connections (1) and remove control unit for slide/tilt sunroof (3).
Installation:
- Initialize slide/tilt sunroof. Refer to 54 0 ... NOTES ON PANORAMA GLASS ROOF (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
Replacement:
Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
IMPORTANT:
There is a risk of permanent battery discharge if programming/coding is not carried out!
