64 22 161 Removing and installing/replacing fresh-air grille center: Procedure

WARNING: This page is about a different variant/trim than selected.

For purposes of clarity:

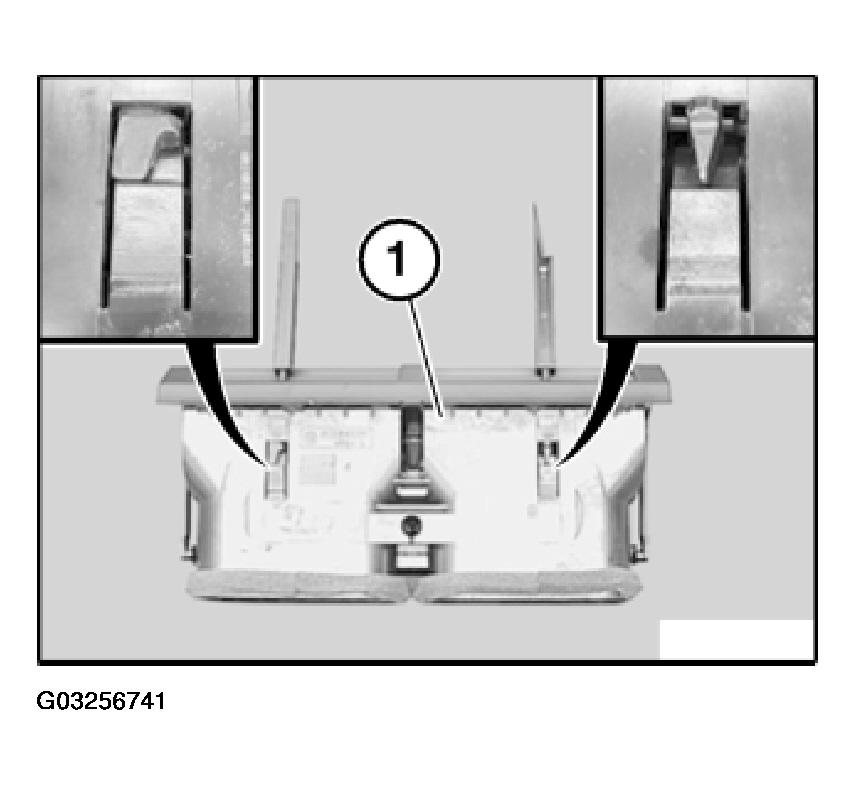

Fig. 1: Fresh air grill (1) in locked state.

Fig. 2: Fresh air grill (1) in unlocked state.

Fig 1: Locating Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Move air outlet adjuster (1) into illustrated position.

Insert special tool 641020 as illustrated at an angle downwards into openings of fresh air grill (2).

To unlock fresh air grill (2), turn special tool 641020 through approx. 90° in direction of arrow.

Withdraw fresh air grill (2) in direction of arrow.

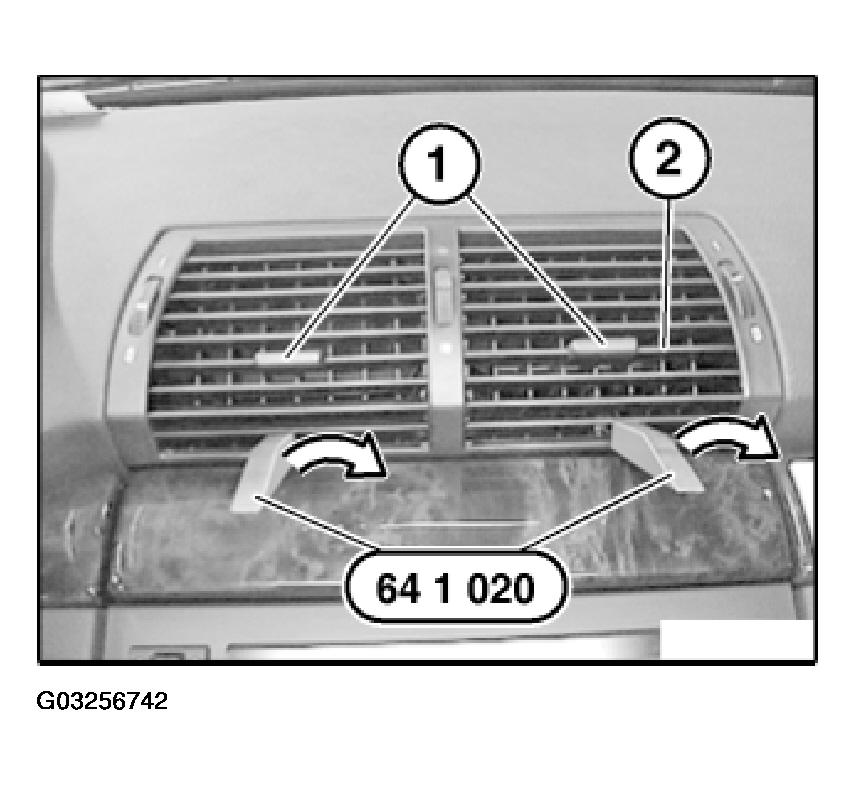

Fig 2: Removing Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: First allow fresh air grill (2) to snap into place at top.

Unclip Bowden cable (1) and unhook at eyelet (2).

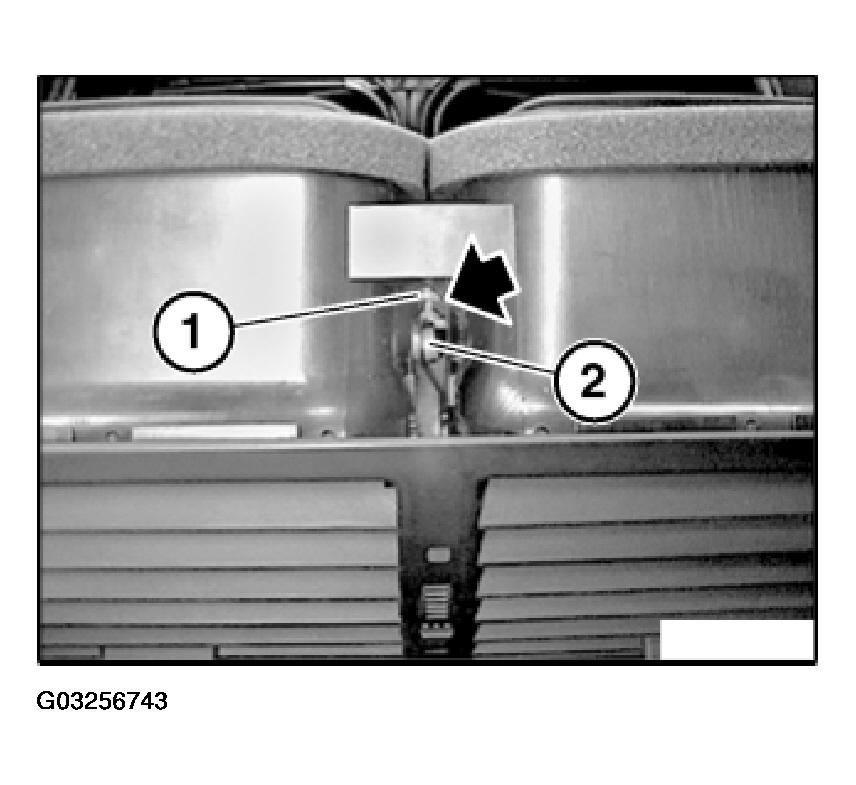

Fig 3: Unclipping Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
