64 22 135 Removing and installing/replacing left fresh-air grille: Procedure

WARNING: This page is about a different variant/trim than selected.

For purposes of clarity:

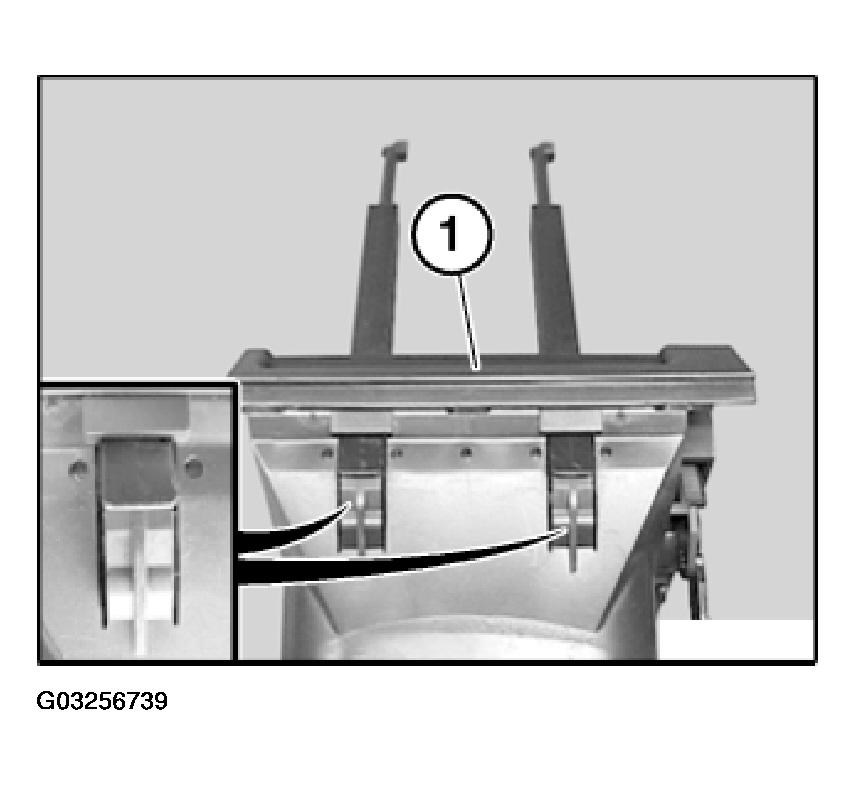

Fresh air grill (1) in unlocked state.

Fig 1: Identifying Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

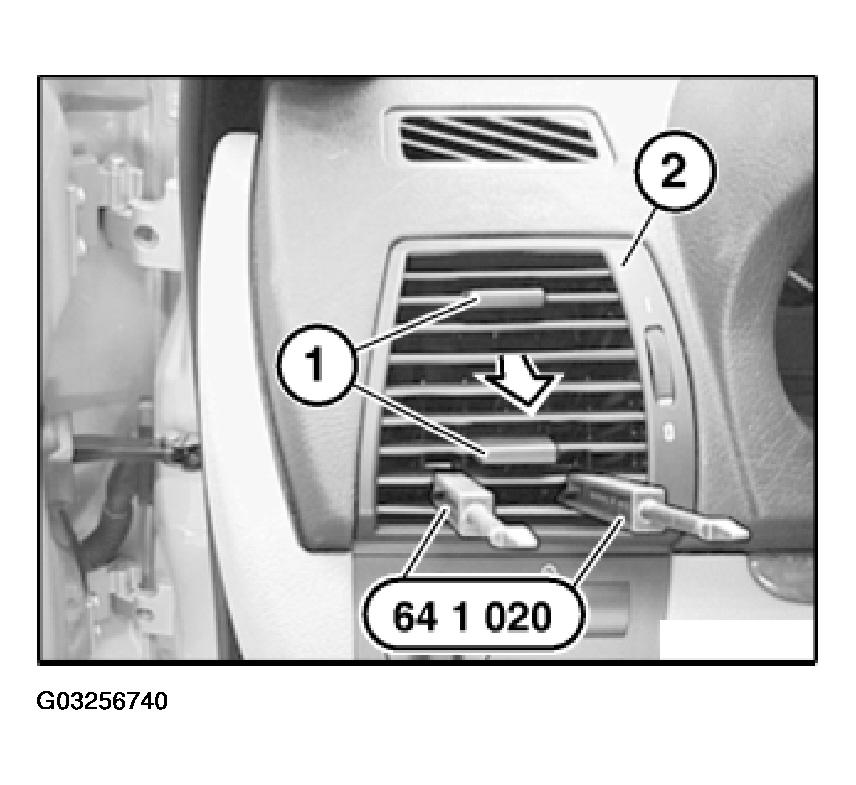

Move air outlet adjuster (1) into illustrated position.

Insert special tool 641020 as illustrated at an angle downwards into openings of fresh air grill (2) and unlock fresh air grill (2).

Withdraw fresh air grill (2) at air outlet adjusters (1) in direction of arrow.

Installation:

First allow fresh air grill (2) to snap into place at top.

Fresh air grill (2) must snap audibly into place.

Fig 2: Installing Fresh Air Grill At Air Outlet Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.
