64 11 949 Replacing temperature sensor for heater (A/C control)
WARNING: This page is about a different variant/trim than selected.
Heater controls removed. Refer to 64 11 748 REMOVING AND INSTALLING HEATER CONTROLS (A/C CONTROL) .

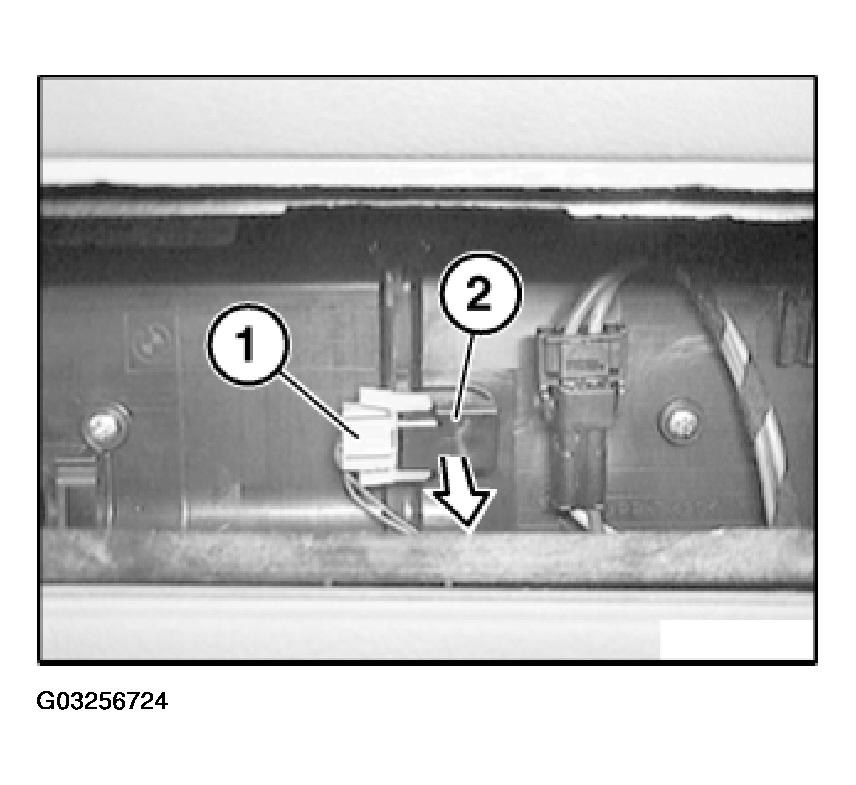

Disconnect plug connection (1).
Pull out temperature sensor (2) in direction of arrow.
Installation:
Ensure temperature sensor (2) is correctly seated.
