64 11 939 Replacing temperature sensor for heater
WARNING: This page is about a different variant/trim than selected.
Heater controls removed. Refer to 64 11 748 REMOVING AND INSTALLING HEATER CONTROLS (A/C CONTROL) .

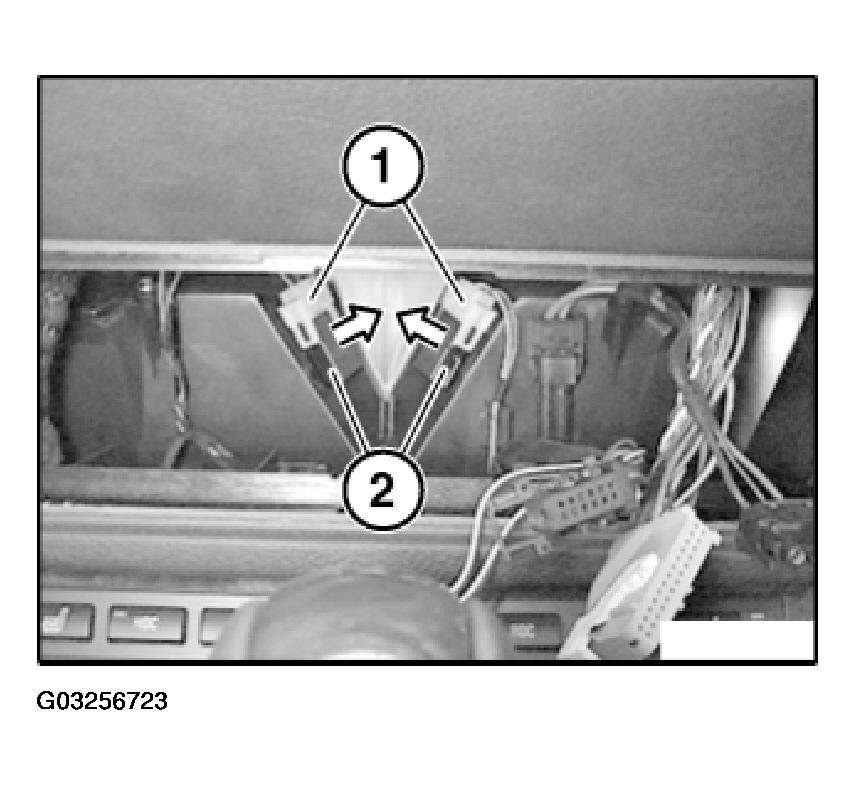

Disconnect plug connection (1).
Remove temperature sensor (2).
