64 11 937 Replacing evaporator temperature sensor (automatic A/C)

WARNING: This page is about a different variant/trim than selected.

Remove trim for instrument panel, bottom right, 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

Remove side carpet on right side of center console.

Disconnect plug connection (1).

Pull out evaporator temperature sensor (2) in direction of arrow.

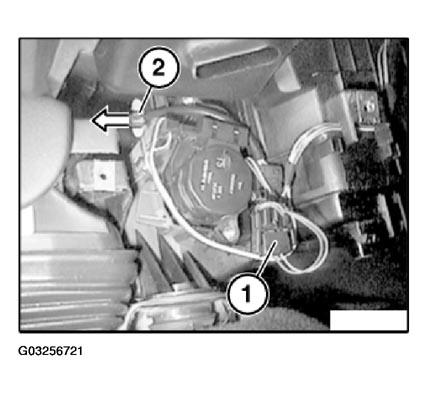

Fig 1: Removing Evaporator Temperature Sensor (Automatic A/C)
G03256721Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure evaporator temperature sensor (2) is correctly seated.
