64 11 932 Replacing evaporator temperature sensor (A/C control)

Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

E39, E53:

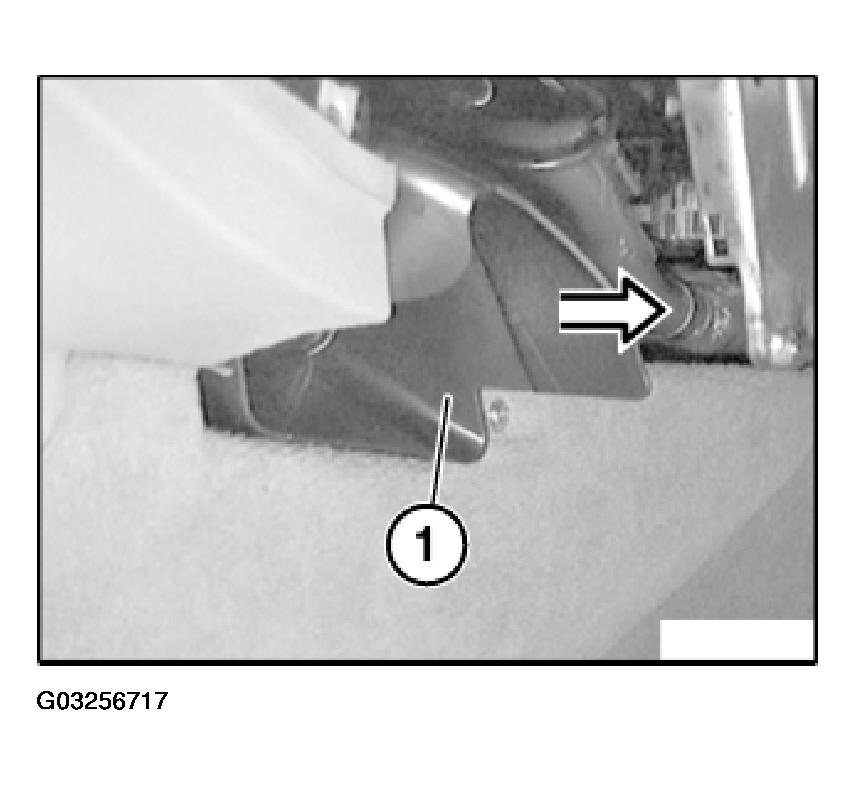

Unclip air duct for right footwell (1) and pull out in direction of arrow.

Fig 1: Removing Left Footwell Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

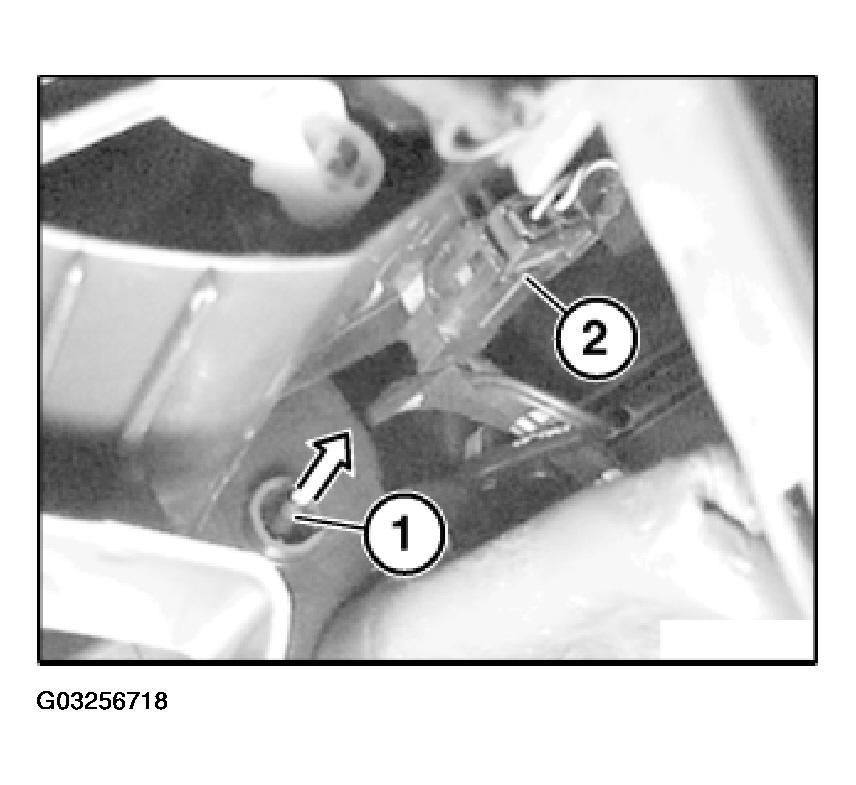

Break out repair cover (1) with pointed pliers in direction of arrow.

Fig 2: Removing Repair Cover

Courtesy of BMW OF NORTH AMERICA, INC.

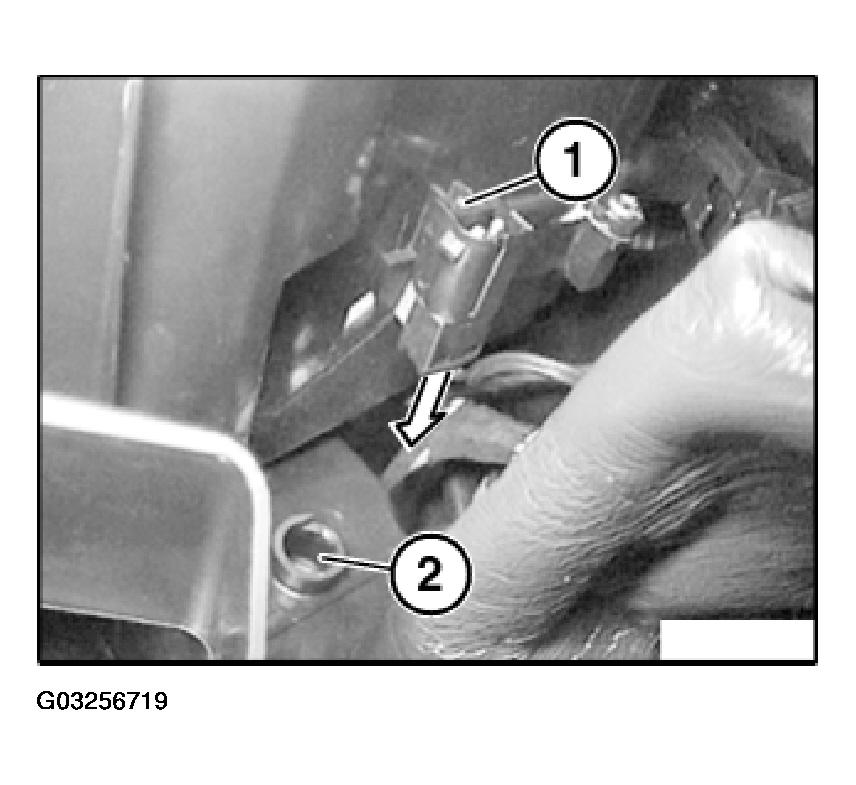

Disconnect connector (2).

Unlock plug of faulty evaporator temperature sensor (1) and pull out in direction of arrow.

Fig 3: Removing Evaporator Temperature Sensor (A/C Control)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert new evaporator temperature sensor in opening (2) and lock into place.

Installation:

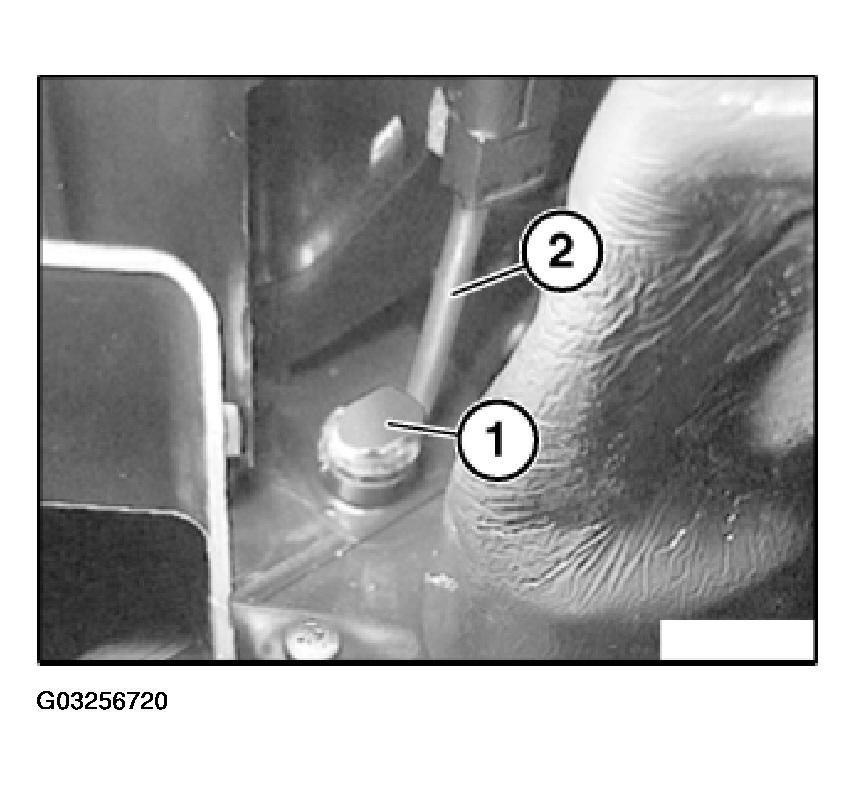

Make sure evaporator temperature sensor (1) and cable (2) are correctly seated.

Fig 4: Installing Evaporator Temperature Sensor (A/C Control)

Courtesy of BMW OF NORTH AMERICA, INC.
