64 11 850 Replacing servodrive of rear compartment flap (automatic A/C)

Remove trim for instrument panel, bottom right, 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

Remove side carpet on right side of center console.

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

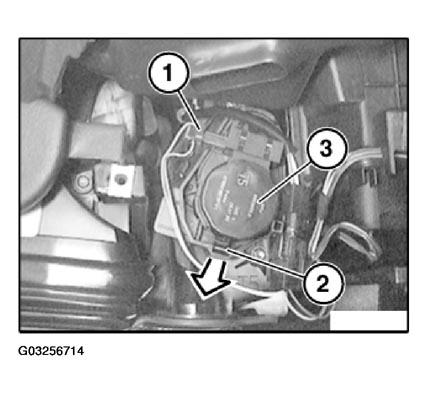

Fig 1: Removing Rear Compartment Flap Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of rear compartment flap to position of servodrive.

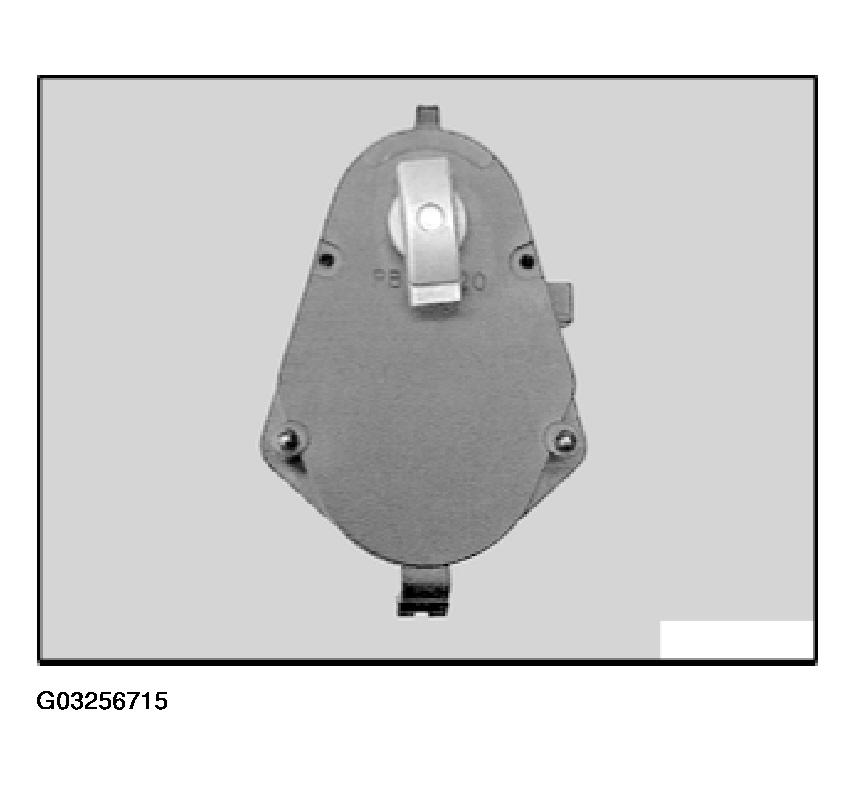

Fig 2: Identifying Installed Position Of Rear Compartment Flap Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
