64 11 845 Replacing servodrive of defrosting flaps (automatic A/C)

Remove trim for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.

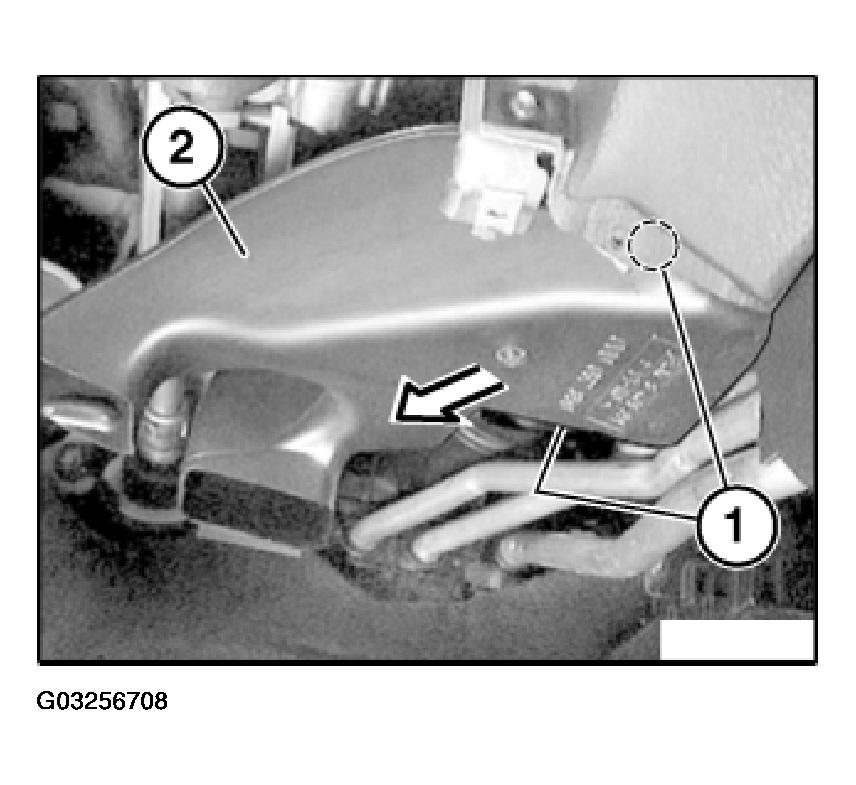

Fig 1: Removing Left Footwell Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

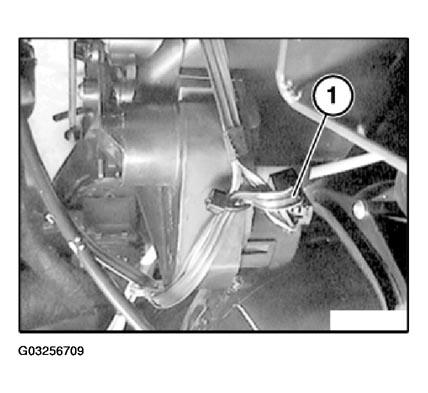

Fig 2: Disconnecting Servodrive Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip lock (1) and pull out servodrive (2) in direction of arrow.

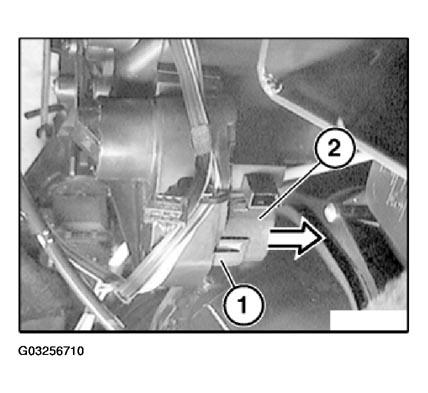

Fig 3: Removing Defrosting Flaps Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of defrosting flaps to position of servodrive.

Fig 4: Identifying Installed Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
