64 11 839 Replacing servodrive of footwell flap (automatic A/C)

Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

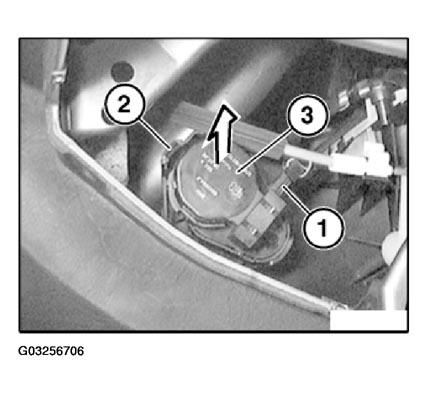

Fig 1: Removing Footwell Flap Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of footwell flap to position of servodrive.

Fig 2: Identifying Installed Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
