64 11 829 Replacing servodrive of ventilation flaps (automatic A/C)

Remove trim for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.

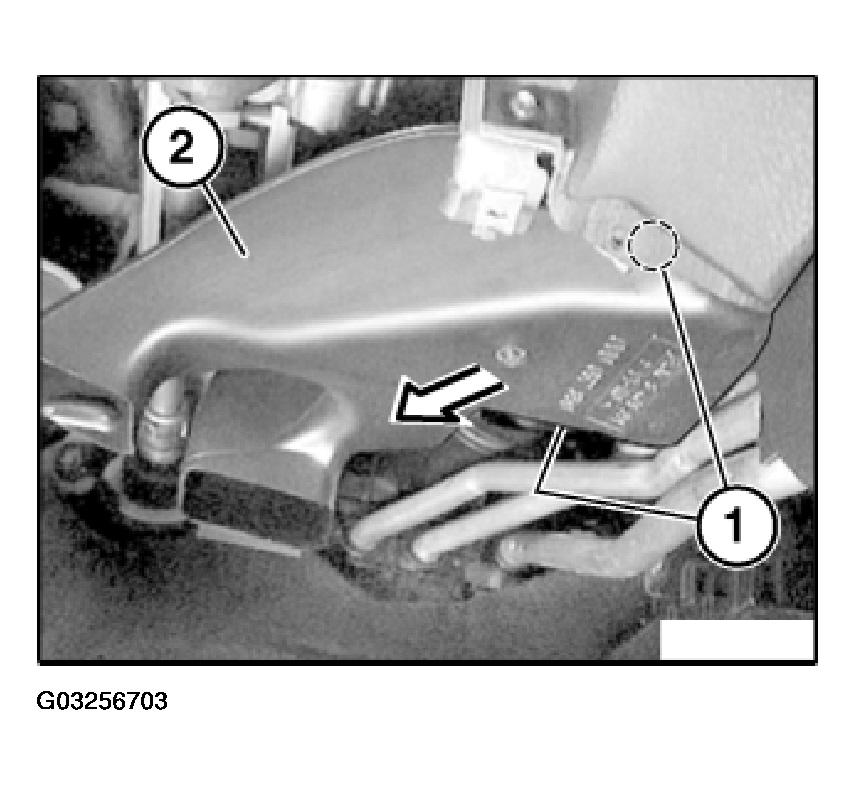

Fig 1: Removing Left Footwell Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

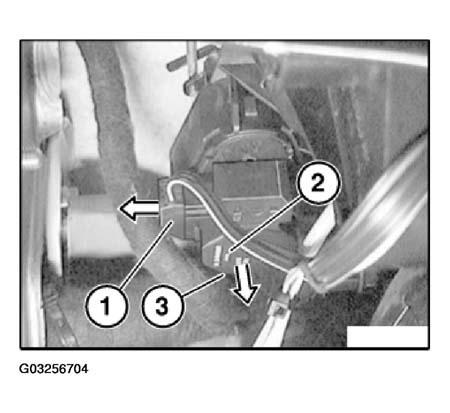

Fig 2: Removing Ventilation Flap Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of ventilation flaps to position of servodrive.

Fig 3: Identifying Installed Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
