64 11 826 Replacing servodrive of recirculated air flaps (A/C control)

Remove trim for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Remove side carpet on right side of center console.

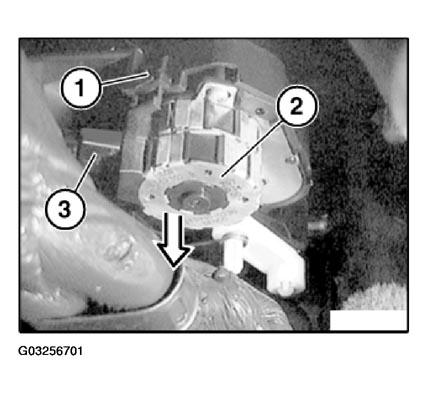

Unclip lock(1).

Pull out servodrive (2) in direction of arrow and disconnect plug connection (3).

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of recirculated air flaps to position of servodrive.

Fig 2: Identifying Installed Position Of Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
