64 11 794 Removing and installing/replacing the controller for the rear fan

WARNING: This page is about a different variant/trim than selected.

Unclip cover (1) on right on storage tray.

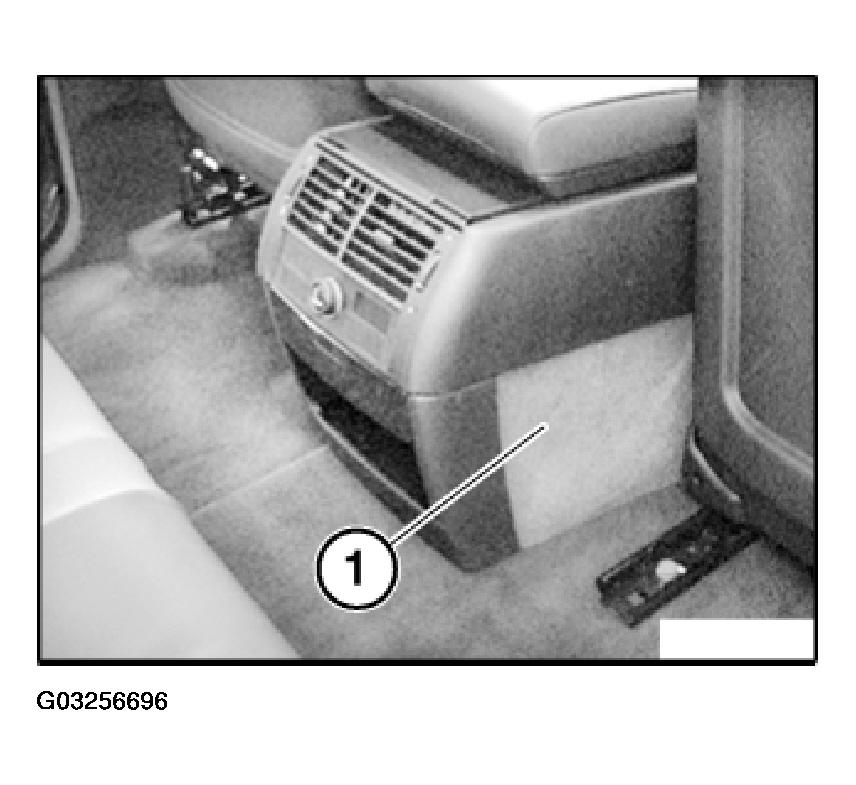

Fig 1: Removing Cover On Right On Storage Tray
G03256696Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1).

Release screws (2) and pull out controller for rear compartment fan (3).

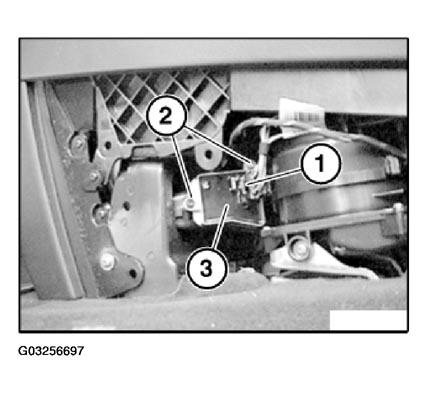

Fig 2: Removing Rear Fan Controller
G03256697Courtesy of BMW OF NORTH AMERICA, INC.
