64 11 749 Removing and installing heater control (automatic air conditioning): Procedure

WARNING: This page is about a different variant/trim than selected.

Unlock heating controls (1) with special tool 00 9 340 and pull out in direction of arrow.

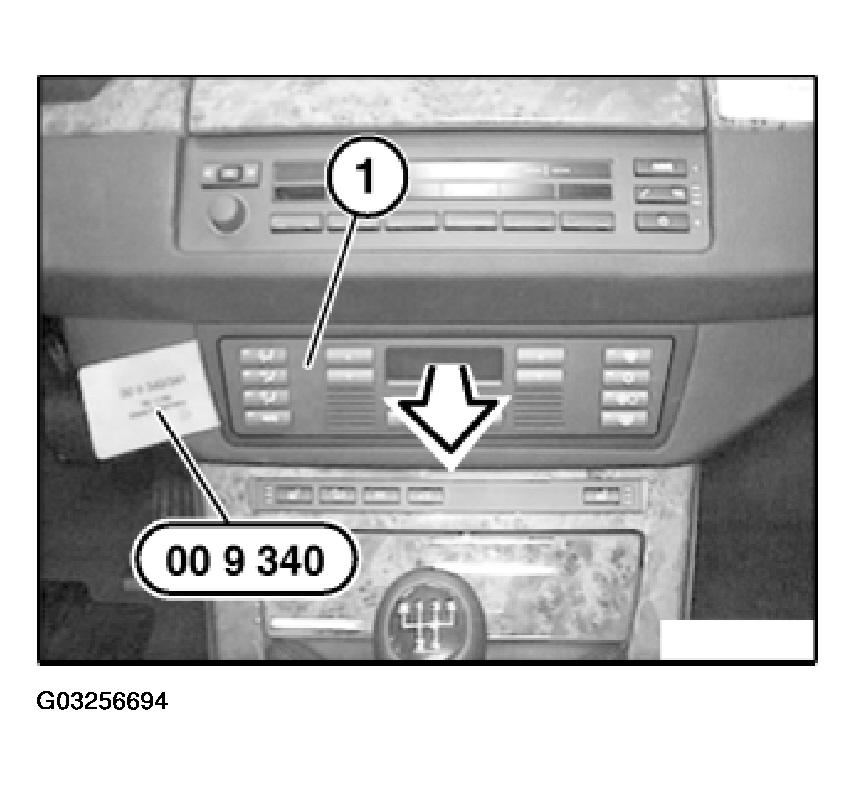

Fig 1: Removing Heating Controls (Automatic Air Conditioning)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure that heating controls (1) are correctly seated.

Disconnect plug connections and remove heating controls (1).
