64 11 748 Removing and installing heater controls (A/C control): Procedure

WARNING: This page is about a different variant/trim than selected.

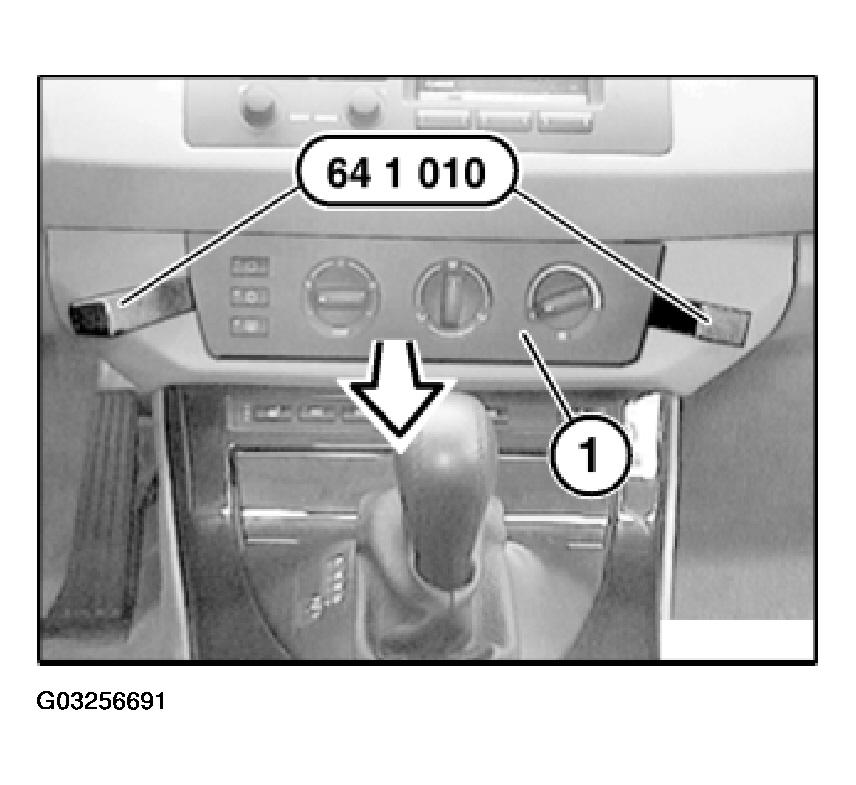

Unlock heating controls (1) with special tool 64 1 010 and pull out in direction of arrow.

Unfasten plug connection.

Fig 1: Removing Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.

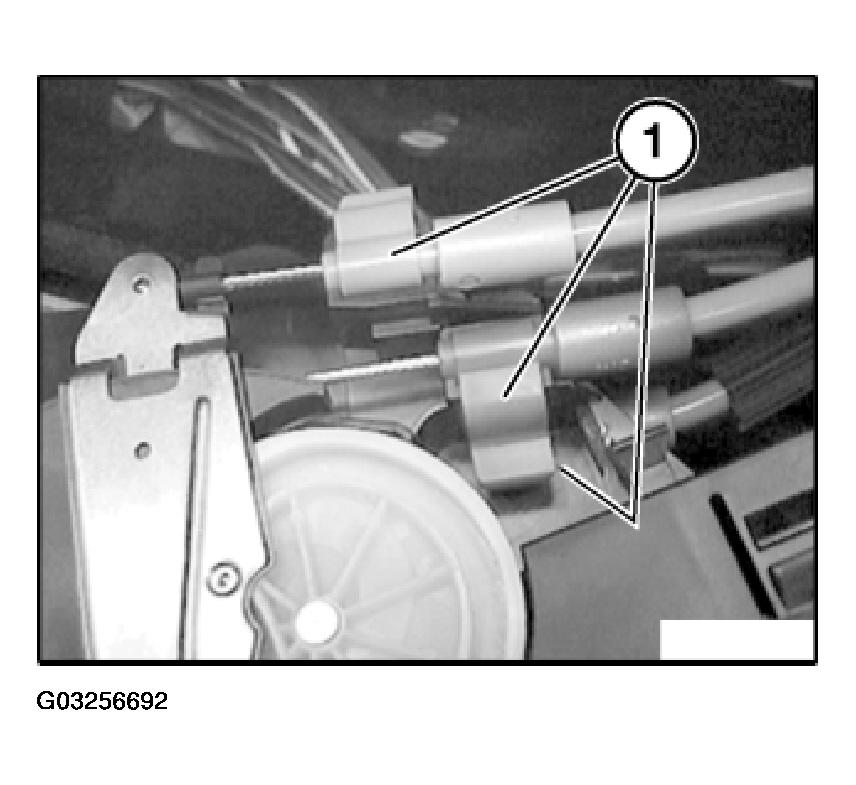

Remove Bowden cables (1).

Installation:

Observe color coding of Bowden cables.

Fig 2: Installing Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

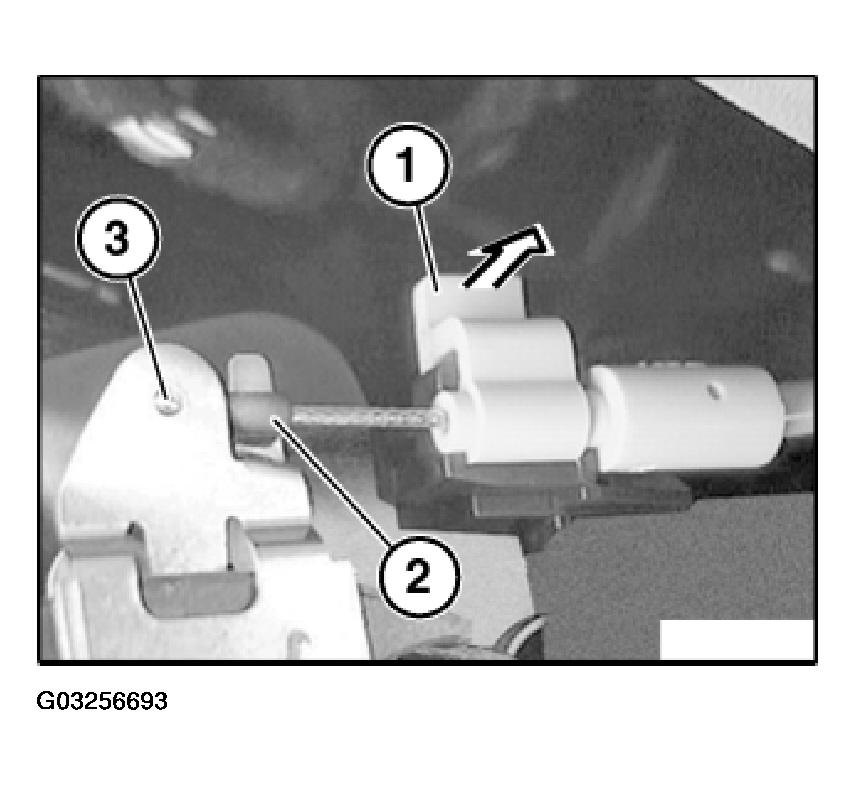

NOTE: Unclip Bowden cable holder (1) in direction of arrow.
Remove eye (2) from deflector (3).

Fig 3: Removing Bowden Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.
