64 11 321 Replacing front plate (automatic A/C)

WARNING: This page is about a different variant/trim than selected.

Remove heating controls.

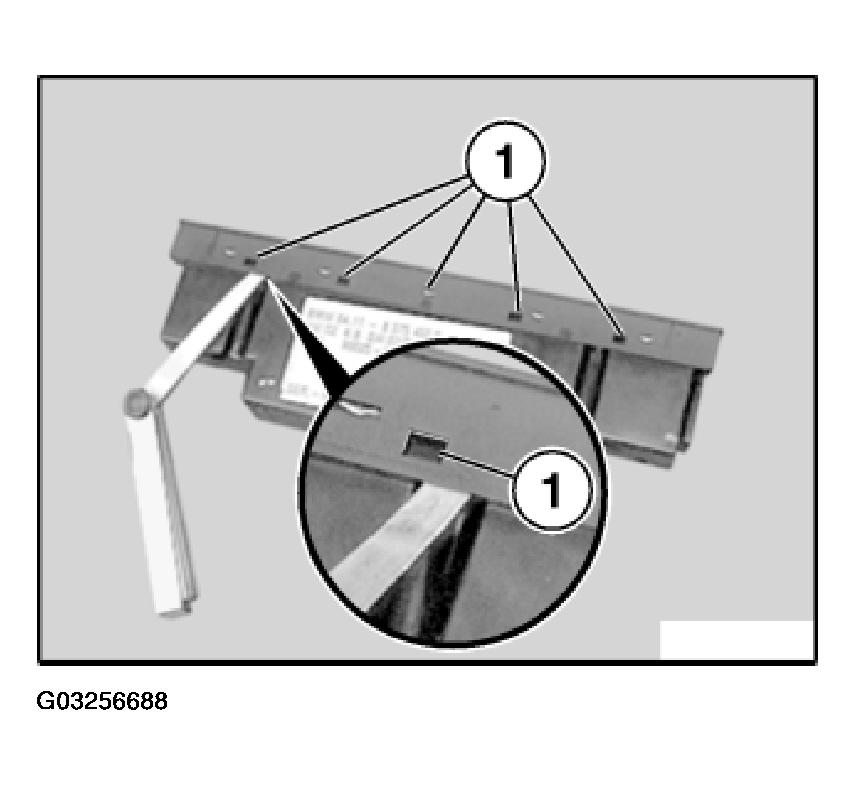

Carefully unclip clips (1) at top and bottom. Remove front plate.

Fig 1: Removing Front Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

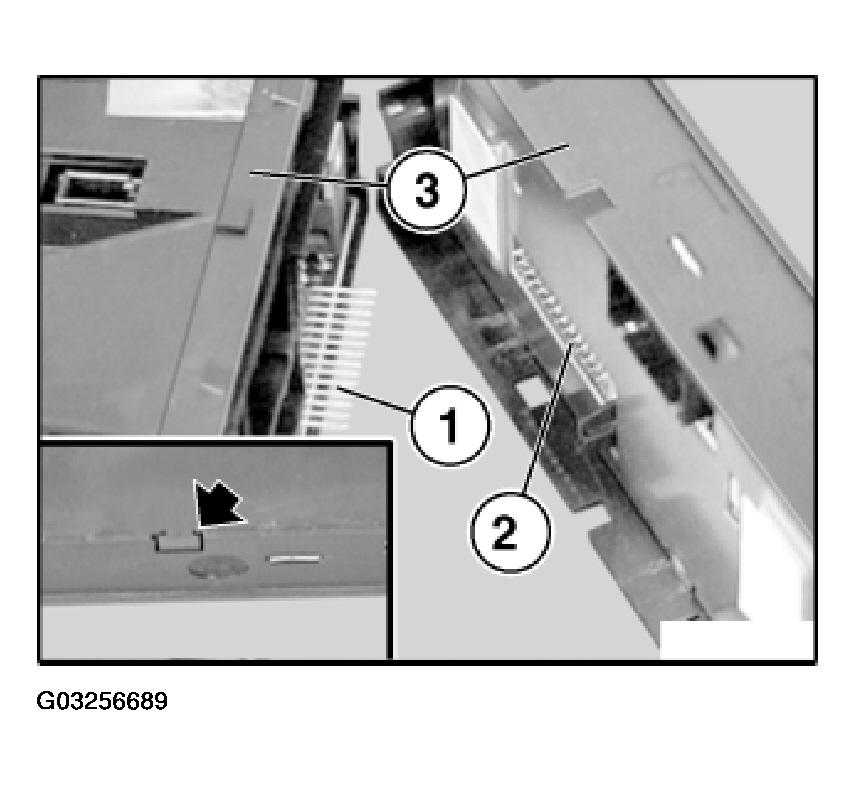

Insert pins (1) straight into bushes (2).

Make sure when pushing front plate together with housing that swallow-tail guides (3) engage each other.

Fig 2: Installing Front Plate

Courtesy of BMW OF NORTH AMERICA, INC.
