64 11 271 Replacing water valve for heater

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Unfasten cable clip (1).

Disconnect connector (2).

Unfasten cable tie (3).

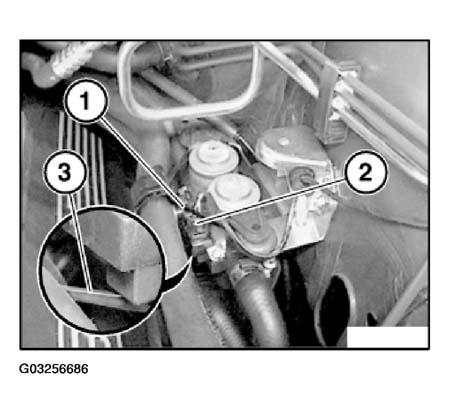

Fig 1: Unfastening Water Valve Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out water valve for heater (1) towards top.

Release hose clamps (2) and detach water hoses.

Remove water valve for heater (1).

Fig 2: Removing Water Valve

Courtesy of BMW OF NORTH AMERICA, INC.

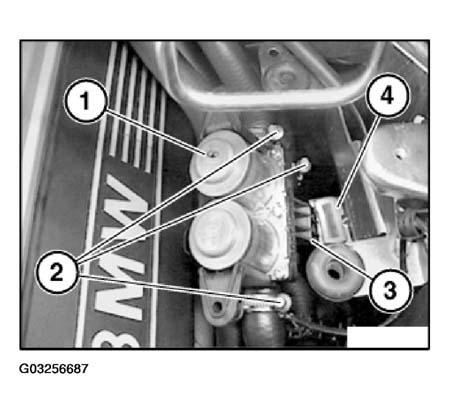

Installation:

If necessary, replace grommets or rubber mount (4).

Feed pilot pin (3) into rubber mount (4).
