64 11 227 Replacing limit switch for fan of heater/air conditioner (climate control)
WARNING: This page is about a different variant/trim than selected.
Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .
Remove trim on center console, refer to 51 16 220 REPLACING TRIMS FOR CENTER CONSOLE .

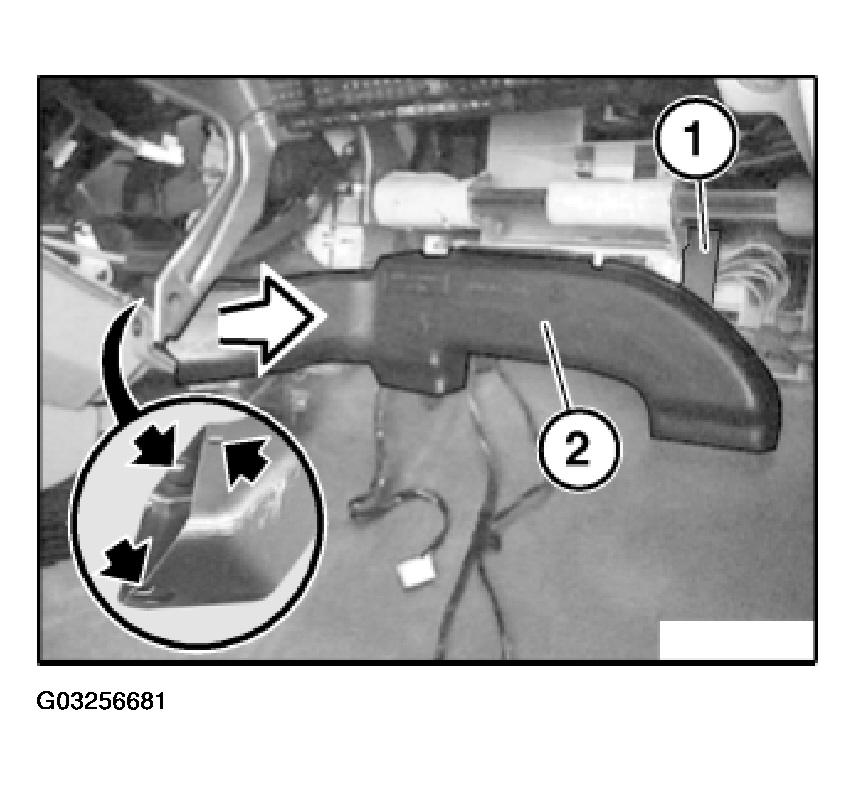

Unhook holder (1).
Unclip heating duct for right footwell (2) and remove in direction of arrow.
Installation:
Ensure heating channel for right footwell (2) is correctly seated.

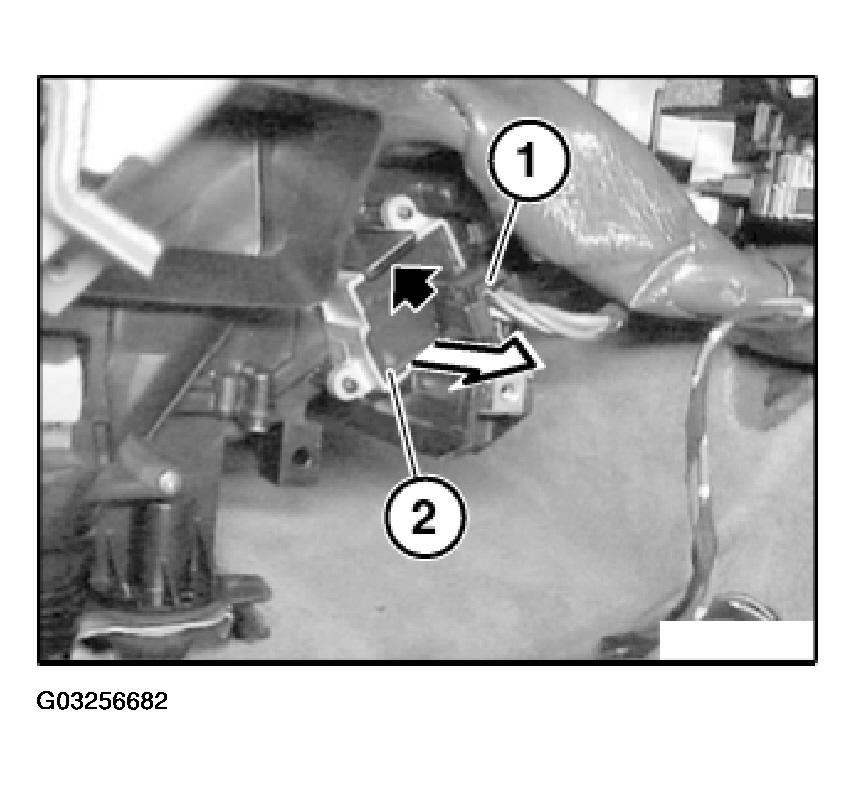

Disconnect plug connection (1).
Unlock limit switch for fan (2) and pull out in direction of arrow.
