64 11 213 Removing and installing/replacing heater - A/C fan

WARNING: This page is about a different variant/trim than selected.

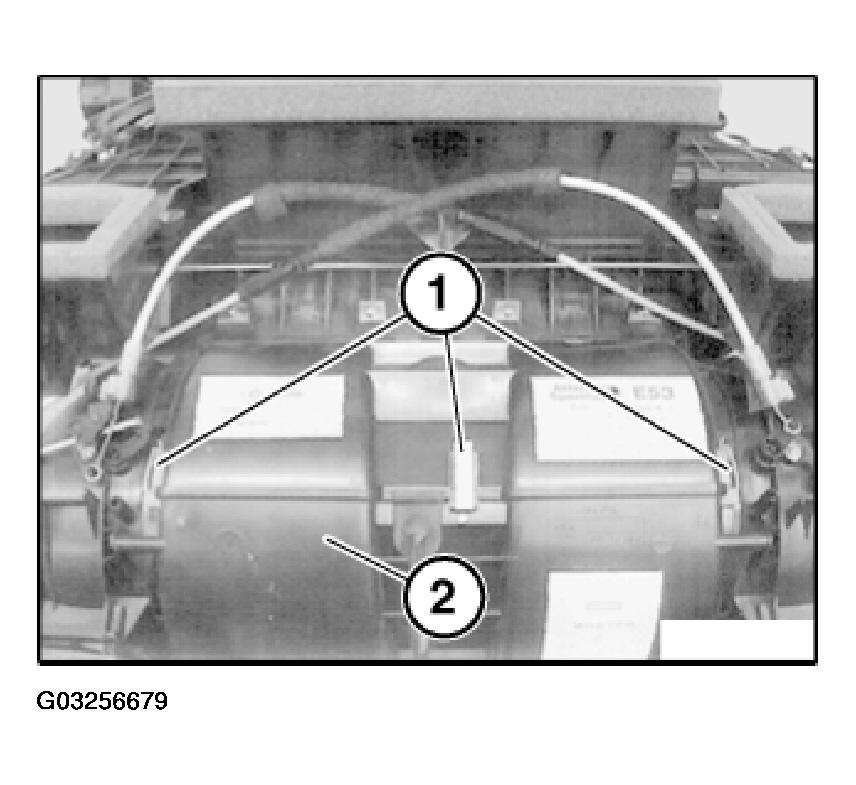

NOTE: For purposes of clarity, illustration shows heater/air conditioner removed.

Unclip retainers (1).

Remove cover (2).

Fig 1: Removing Heater - A/C Fan

Courtesy of BMW OF NORTH AMERICA, INC.

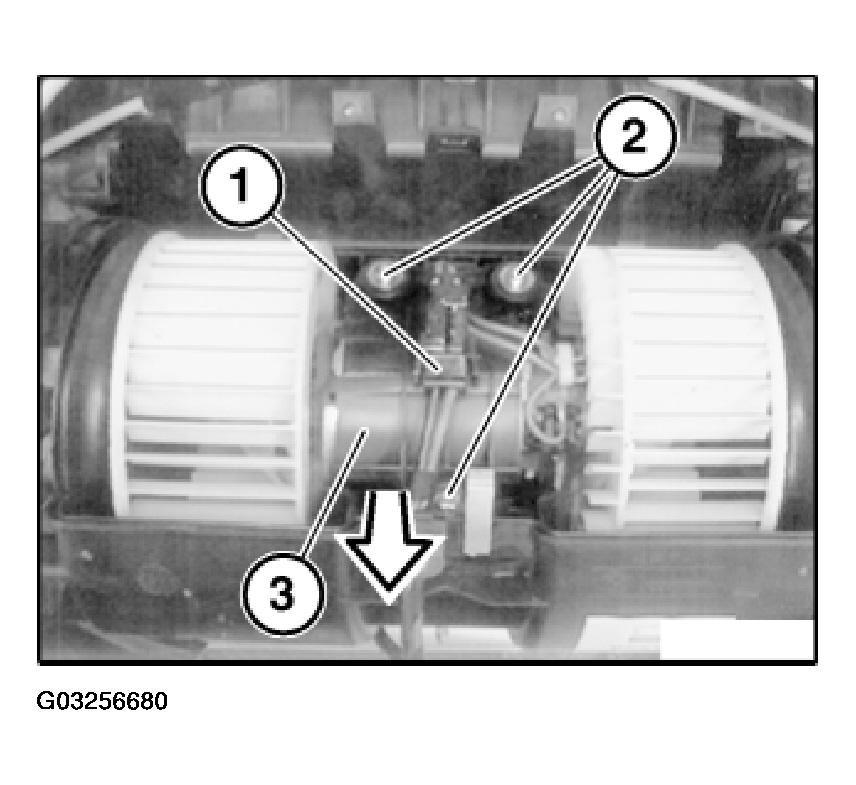

NOTE: For purposes of clarity, illustration shows heater/air conditioner removed.

Disconnect plug connection (1).

Loosen screws (2).

Remove heater - A/C fan (3) in direction of arrow.

Fig 2: Disconnecting Heater - A/C Fan Connections

Courtesy of BMW OF NORTH AMERICA, INC.
