64 52 520 Removing and installing/replacing complete A/C compressor (M62)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Risk of damage!

Follow instructions for compressor replacement without fail, refer to 64 52 ... INSTRUCTIONS FOR COMPRESSOR REPLACEMENT .

NOTE: A/C system is drawn off.

Drain coolant, refer to 17 00 005 DRAINING AND TOPPING UP COOLANT (M62) .

Remove A/C compressor drive belt, refer to 11 28 050 REPLACING DRIVE BELT FOR A/C COMPRESSOR (M62) .

Remove intake filter housing, refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING .

Detach plastic tube (1) on shut-off valve and on pump and remove.

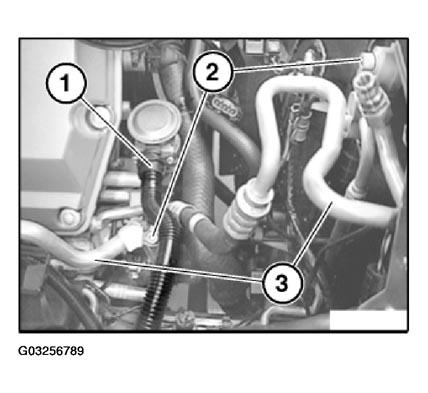

Fig 1: Removing Tube From Shut-Off Valve & Pump
G03256789Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and detach lines (3).

Installation:

Replace sealing rings.

Detach water hose (1) from thermostat housing cover.

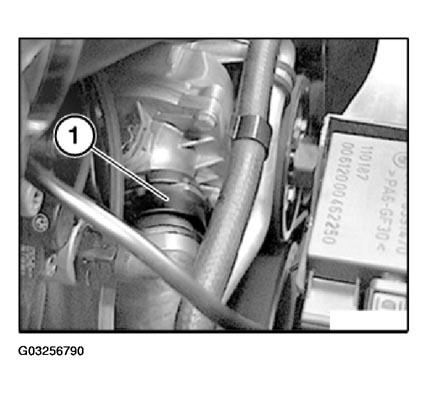

Fig 2: Detaching Water Hose From Thermostat Housing Cover
G03256790Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Detach water hose (2) from radiator and remove.

Release screw (3) and detach mounting plate (4) from radiator.

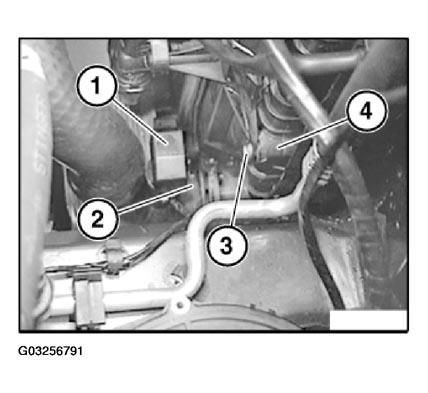

Fig 3: Removing Mounting Plate
G03256791Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

NOTE: Cover frame rail in area of A/C compressor.

Disconnect plug connection (1).

Release screws (2) and lift out A/C compressor (3).

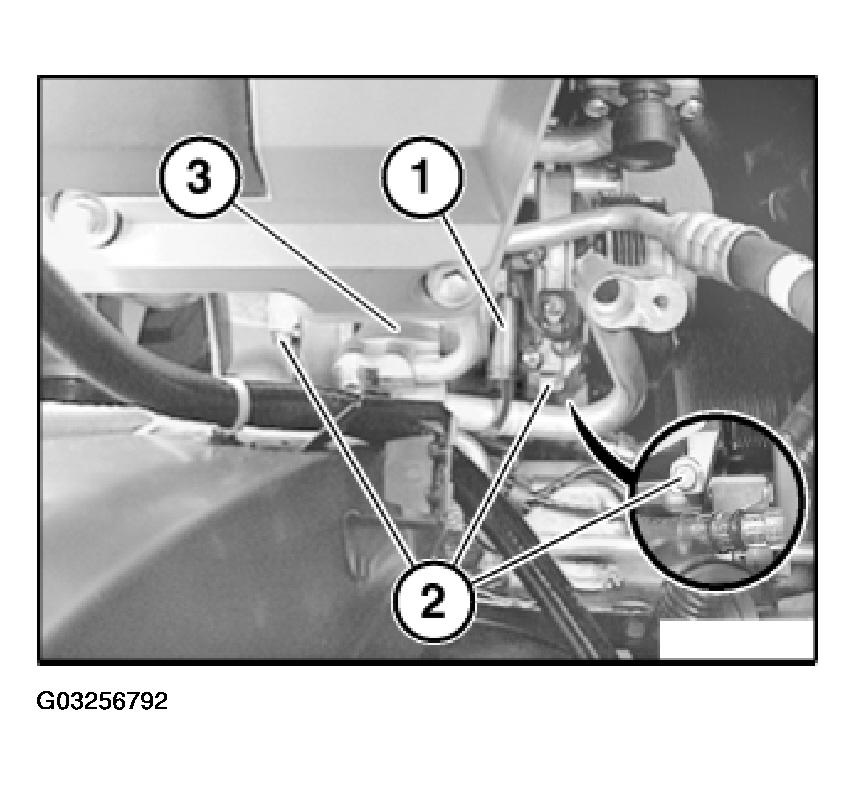

Fig 4: Removing A/C Compressor
G03256792Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and detach lines (2).

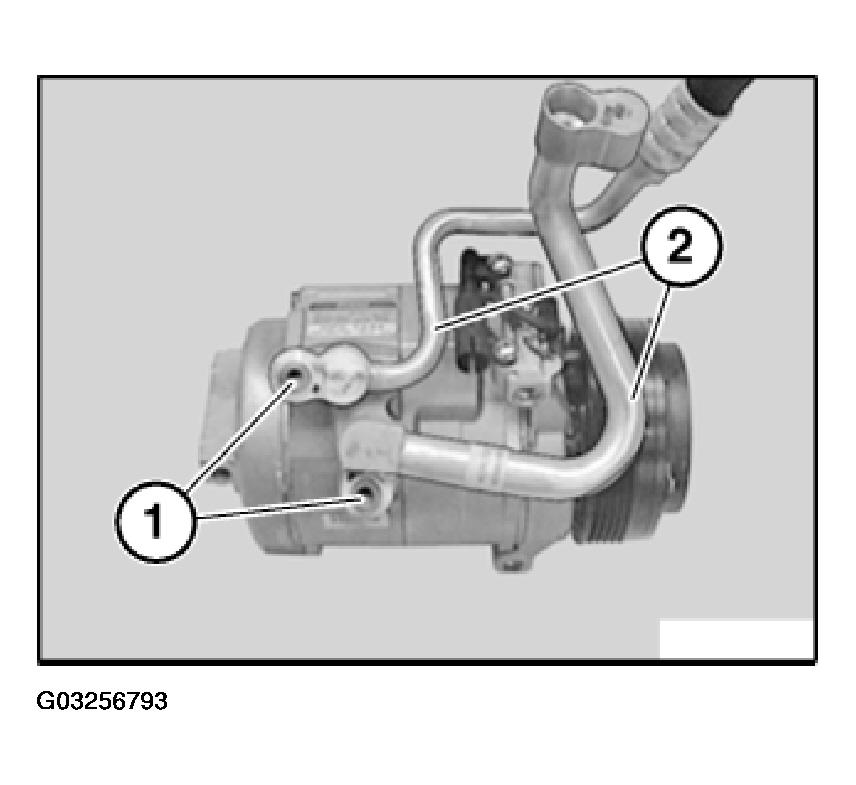

Fig 5: Removing A/C Lines
G03256793Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Observe tightening torque, refer to 64 52 1AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - X5 .
