61 61 270 Removing and installing mounting bracket for windshield wiper system completely with motor: Procedure

WARNING: This page is about a different variant/trim than selected.

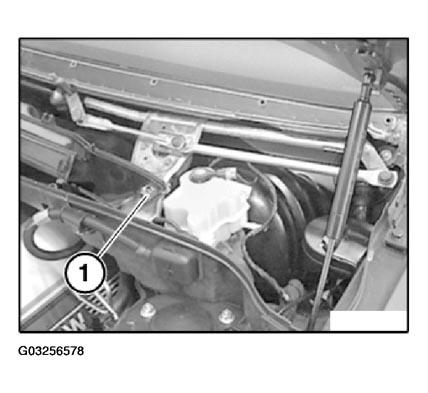

Pull out air funnel (1) on microfilter housing.

Fig 1: Removing Microfilter Housing Air Funnel

Courtesy of BMW OF NORTH AMERICA, INC.

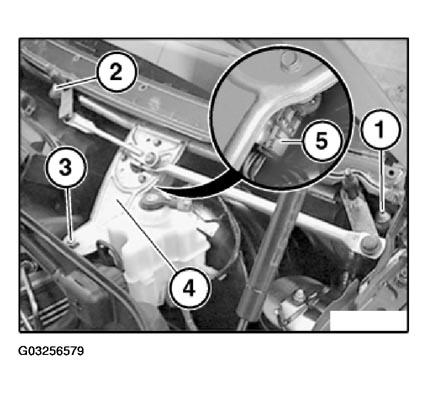

Remove screws (1) and (2).

Fig 2: Removing Windshield Wiper Mounting Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damping ring upper/lower section.

Tighten screws (1) and (2) in specified sequence.

Release nut (3) with special tool 61 6 250.

Installation:

If necessary, replace rubber buffer.

Fit nut (3) loosely.

Remove bracket for windshield wiper system (4) and disconnect plug connection (5).

Installation:

Before installing wiper arms, allow wiper motor to return to its rest position.

To ensure the wiper system works properly, check and correct the contact angle of the wiper arms. Refer to 61 61 010 CHECKING/ADJUSTING APPROACH ANGLE OF WINDSHIELD WIPER ARMS ON FRONT WINDSCREEN .

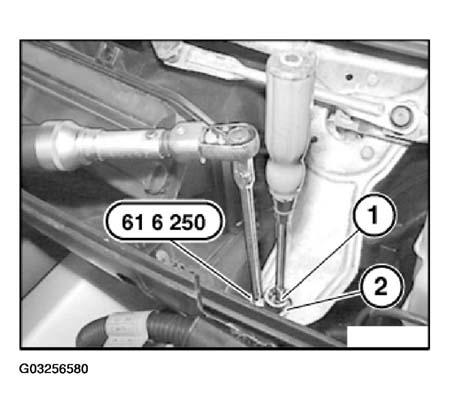

In event of deviations from specified value, correct contact angle using adjusting screw (1).

Fig 3: Correcting Contact Angle Using Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Check contact angle of wiper arms again.

Grip adjusting screw (1) and tighten nut (2) with special tool 61 6 250.

Secure nut (2) with locking varnish.
