61 61 100 Removing and installing/replacing both windshield wiper arms: Procedure

WARNING: This page is about a different variant/trim than selected.

Remove cover (1).

Fig 1: Removing Windshield Wiper Arm Nut Cover

Courtesy of BMW OF NORTH AMERICA, INC.

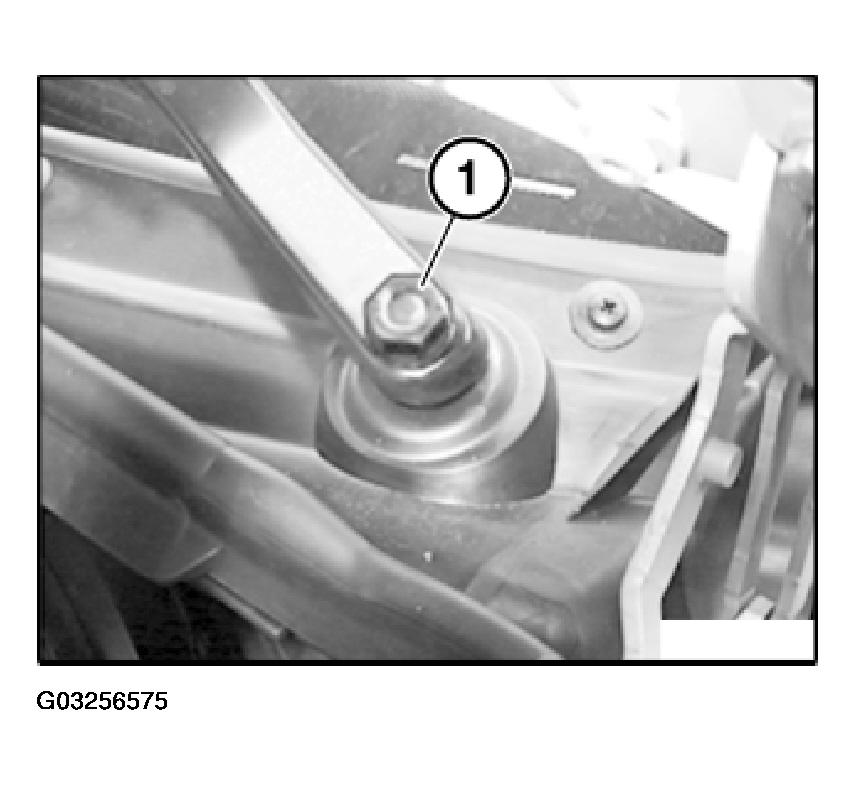

Unscrew nut (1).

Installation:

After waiting 15 minutes, retighten nut to appropriate torque.

Fig 2: Removing Windshield Wiper Arm Nut

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not bend wiper arm during removal (risk of breakage).

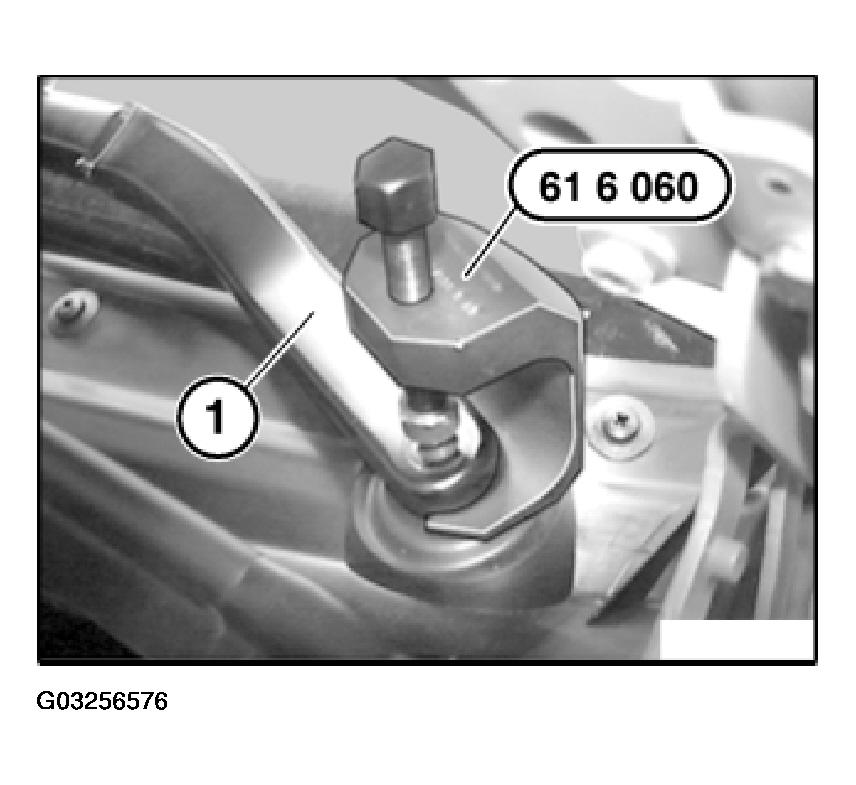

Detach windshield wiper arm with special tool 61 6 060.

Fig 3: Detaching Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove wiper blade.

Installation:

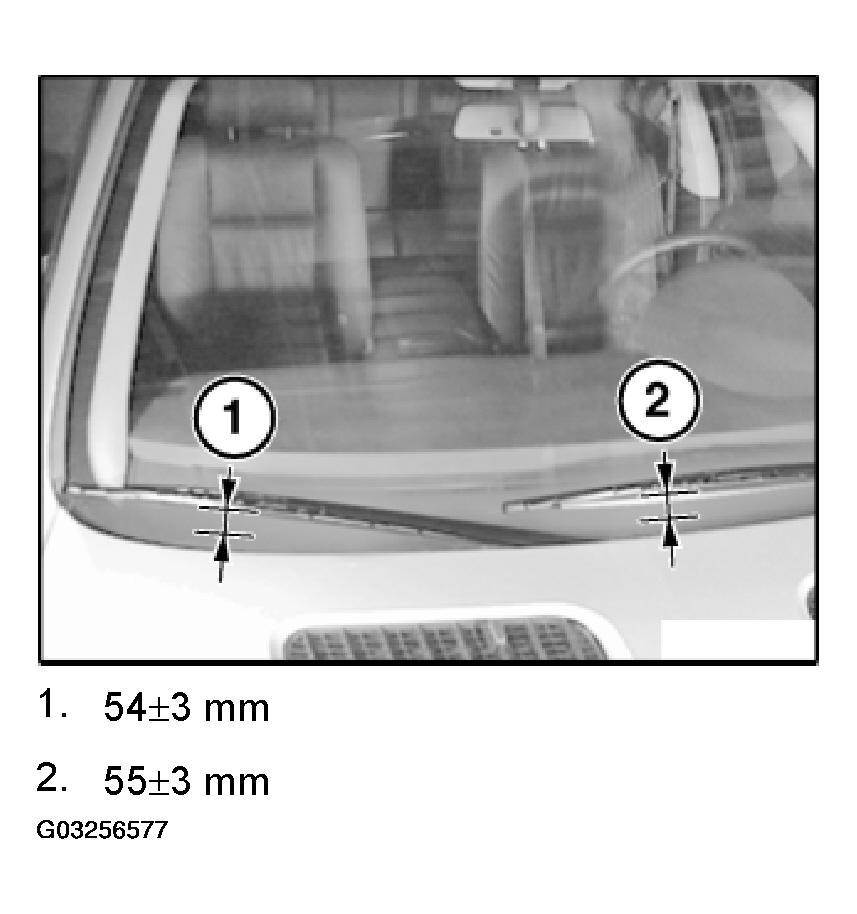

Adjust position of wiper arm in question in rest position (measured between wiper lip and top edge of cowl panel cover).

Fig 4: Adjusting Wiper Arm Position

Courtesy of BMW OF NORTH AMERICA, INC.

Then tighten down wiper arm and check position of relevant wiper arm again.
