61 71 015 Removing and installing/replacing a jet nozzle in windshield washer system: Procedure

WARNING: This page is about a different variant/trim than selected.

Unclip plug connection (1) and disconnect.

Detach angle (2) or T-piece from jet nozzle.

Fig 1: Removing T-Piece From Jet Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock jet nozzle (1) with a suitable screwdriver (2).

Lever out jet nozzle (1) with special tool 00 9 317 and remove.

Installation:

Ensure hose is laid without kinks.

Adjust jet nozzle.

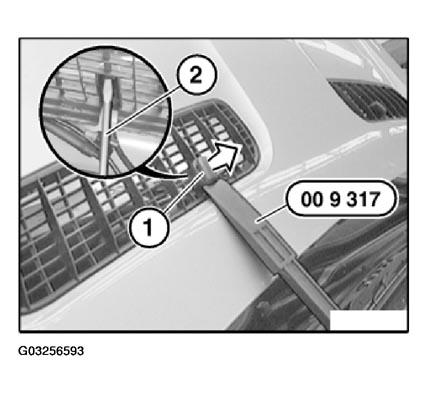

Fig 2: Removing Jet Nozzle In Windshield Washer System

Courtesy of BMW OF NORTH AMERICA, INC.
