61 71 061 Replacing fluid tank for windshield washer system

WARNING: This page is about a different variant/trim than selected.

NOTE: Drain fluid tank for windshield washer system

Unscrew nuts (1).

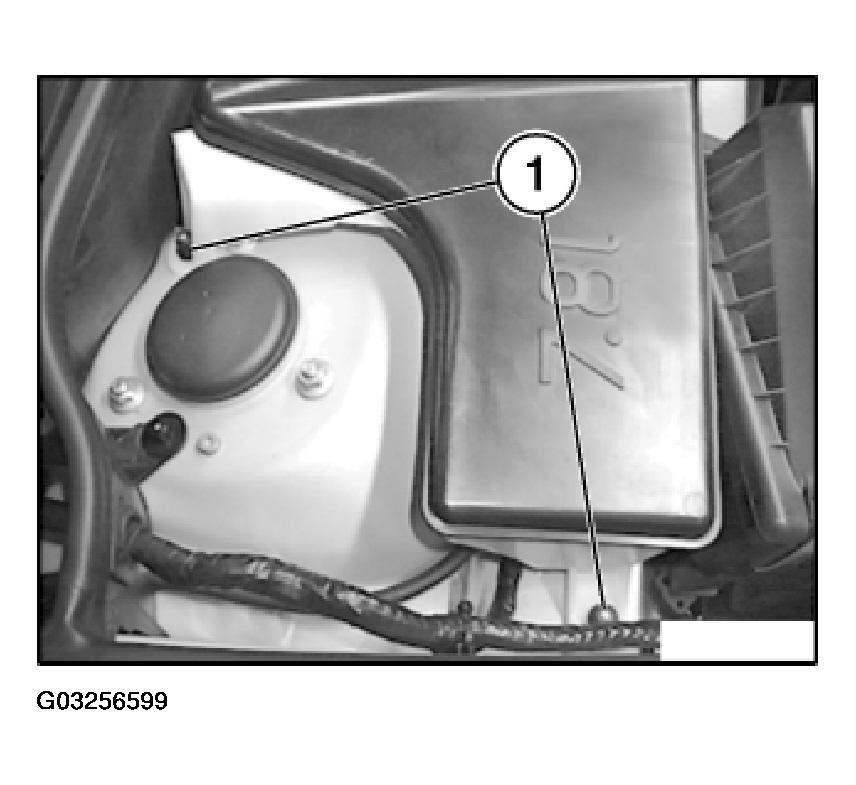

Fig 1: Removing Windshield Washer Fluid Tank Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed lug (1) into tab.

Press fluid tank for windshield washer system downwards until it is heard snapping into place.

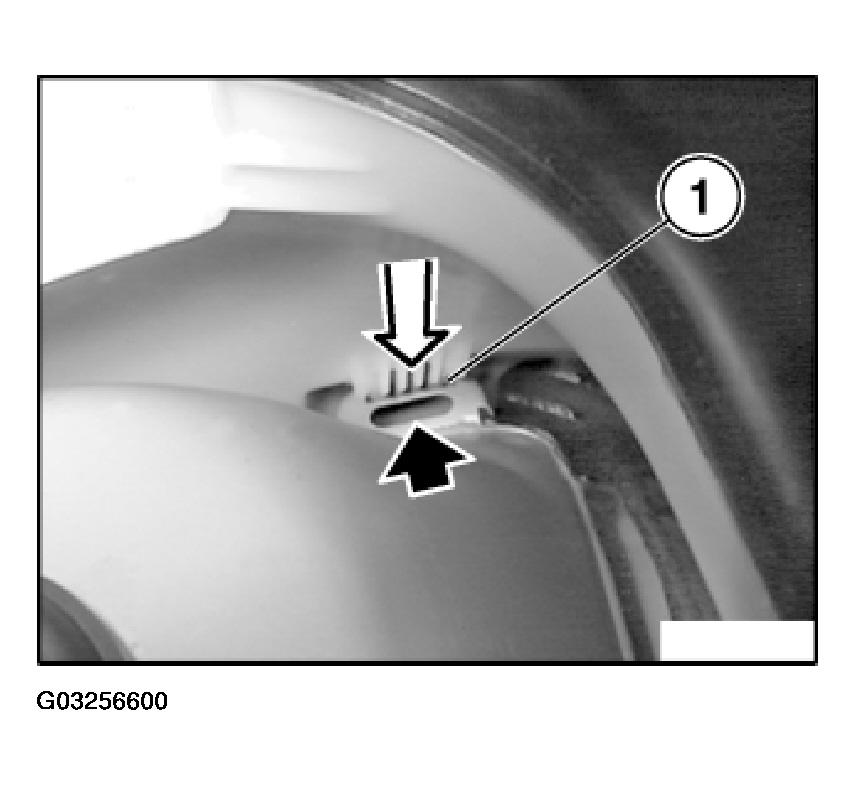

Fig 2: Fitting Fluid Tank Feed Lug Into Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

Unlock hose (2) and detach.

Raise fluid tank for windshield washer system.

Detach hoses (3) and lift out fluid tank for windshield washer system.

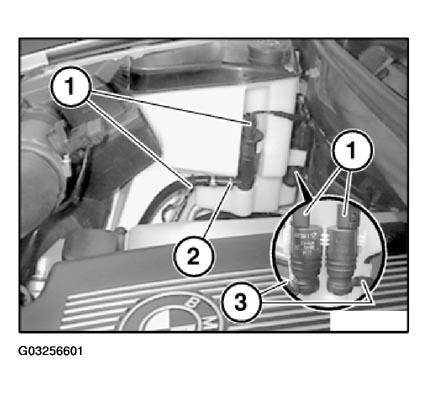

Fig 3: Removing Windshield Washer System Fluid Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure hoses are laid without kinks.

Fill fluid tank for windshield washer system.

Pull washer pumps (1) vertically upwards and remove.

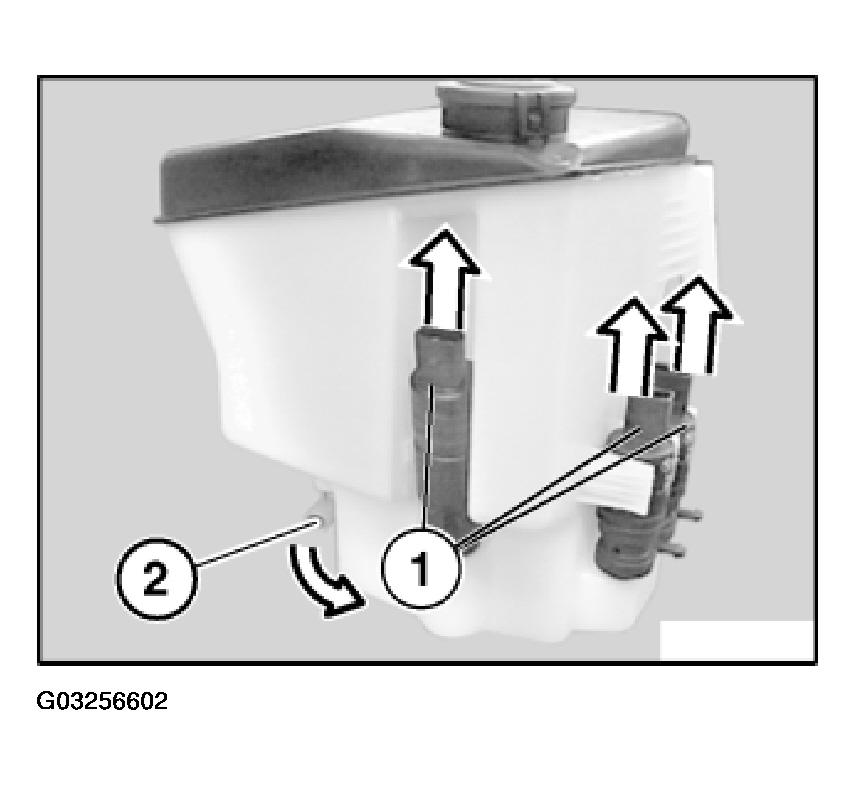

Fig 4: Removing Washer Pumps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat sealing rings of washer pump with anti-friction agent.

Replace sealing rings/strainers on washer pumps.

Turn level switch (2) approx. 90° in direction of arrow and pull out.

Remove cap and strainer for fluid tank of windshield washer system.
