61 13 . . Unlocking and disconnecting different plug connections

WARNING: This page is about a different variant/trim than selected.

NOTE: Examples of unlocking and disconnecting different plug connections.

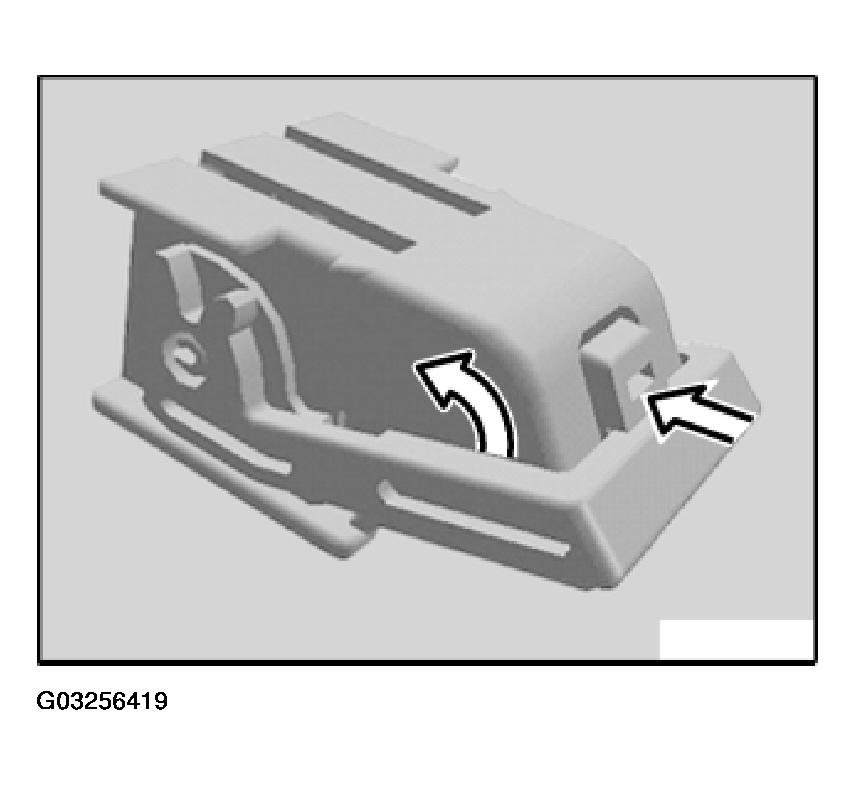

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Disconnect Plug Connection (1 Of 9)

G03256419

Courtesy of BMW OF NORTH AMERICA, INC.

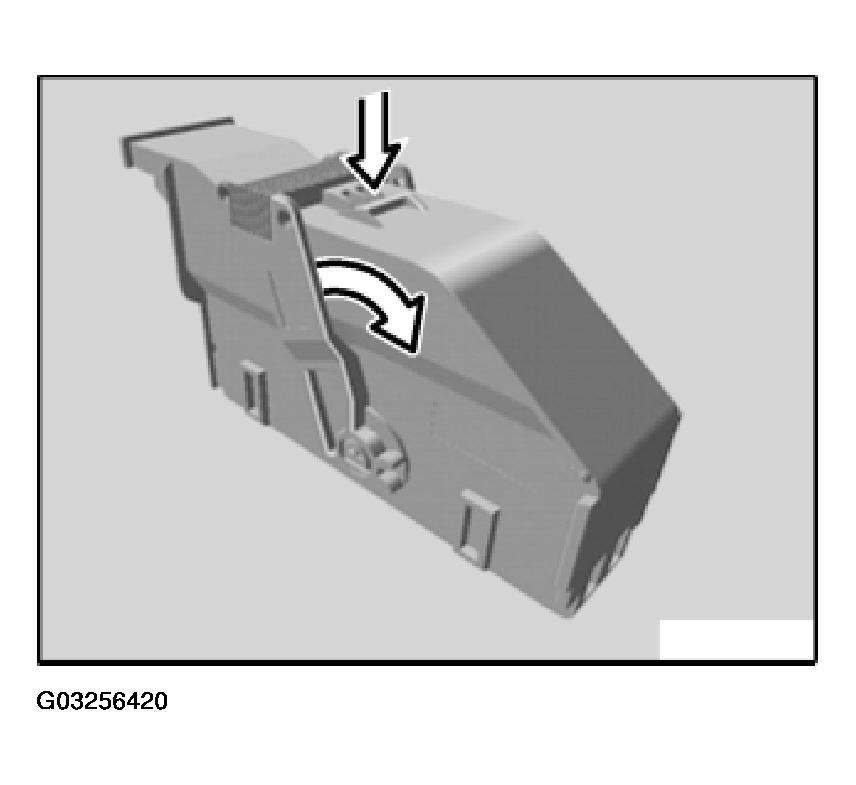

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Disconnect Plug Connection (2 Of 9)

G03256420

Courtesy of BMW OF NORTH AMERICA, INC.

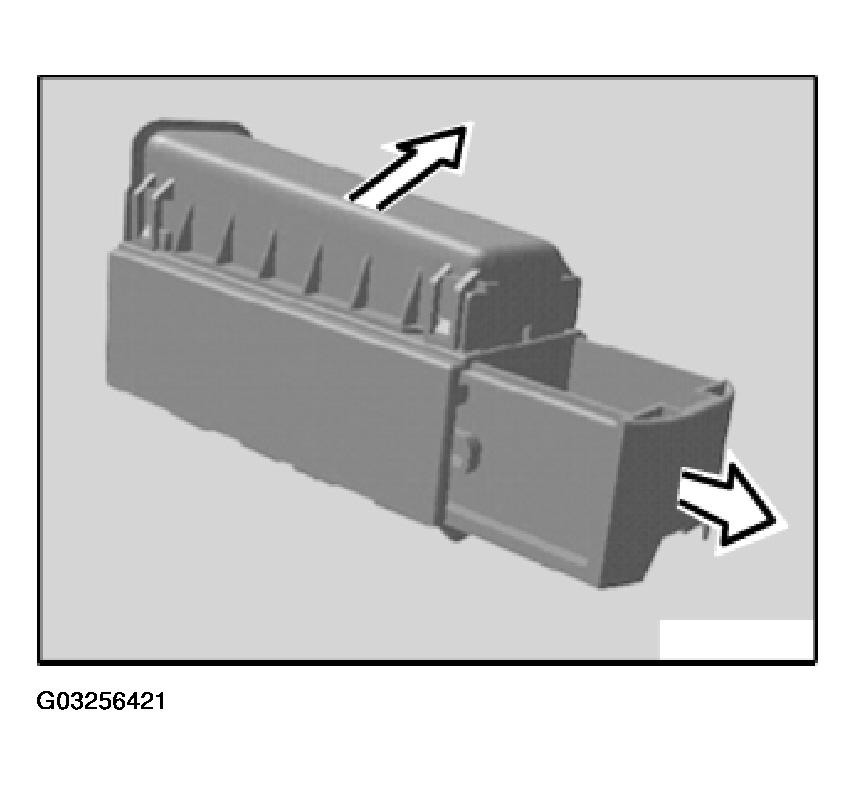

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnect Plug Connection (3 Of 9)

G03256421

Courtesy of BMW OF NORTH AMERICA, INC.

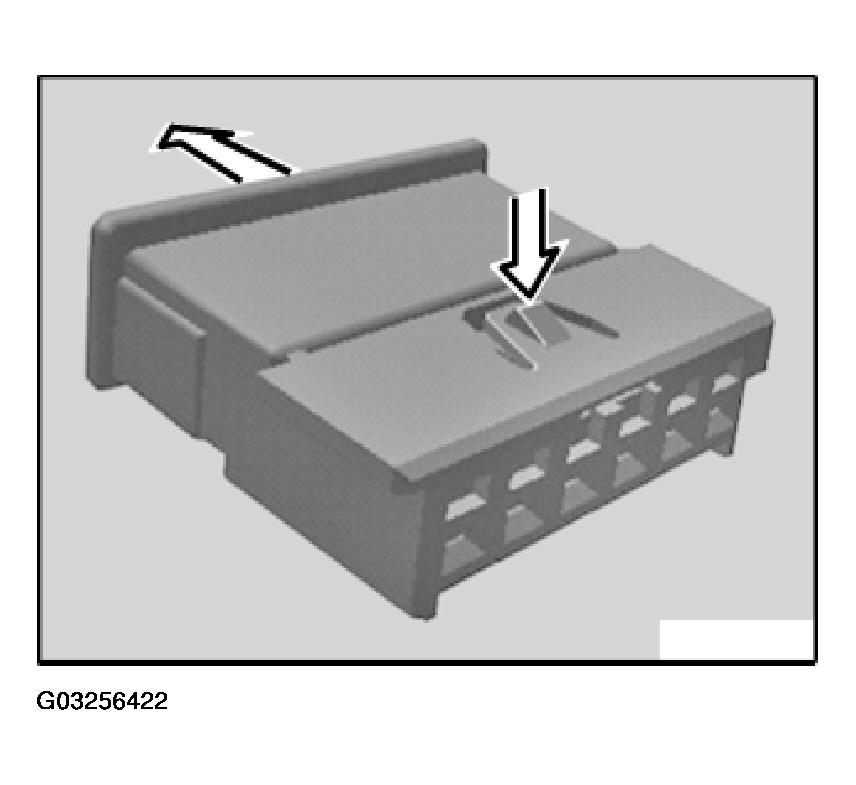

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Disconnect Plug Connection (4 Of 9)

G03256422

Courtesy of BMW OF NORTH AMERICA, INC.

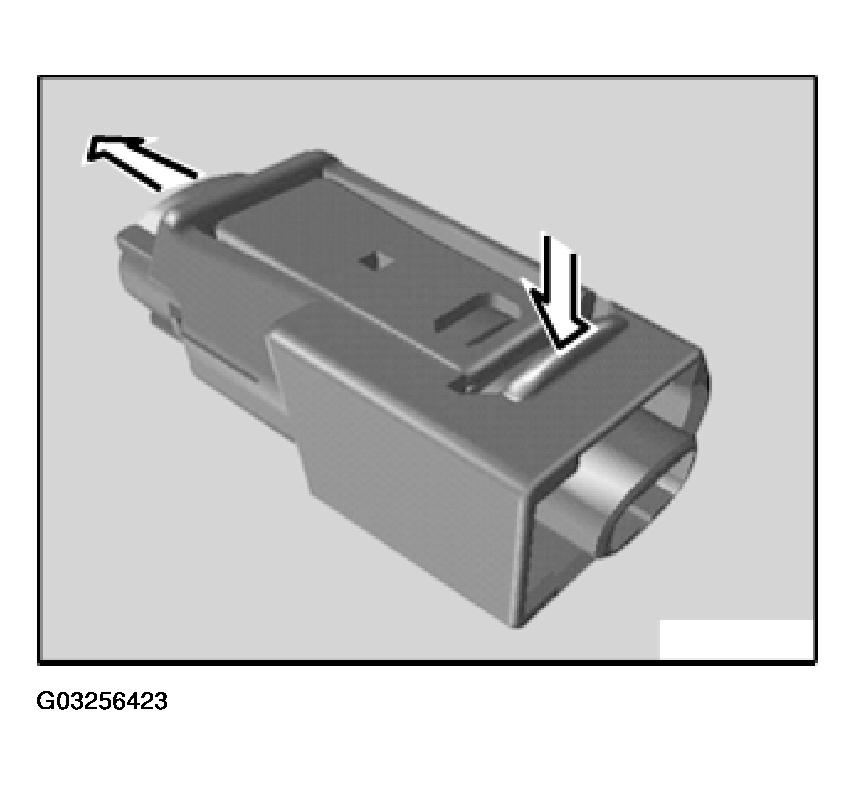

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Disconnect Plug Connection (5 Of 9)

G03256423

Courtesy of BMW OF NORTH AMERICA, INC.

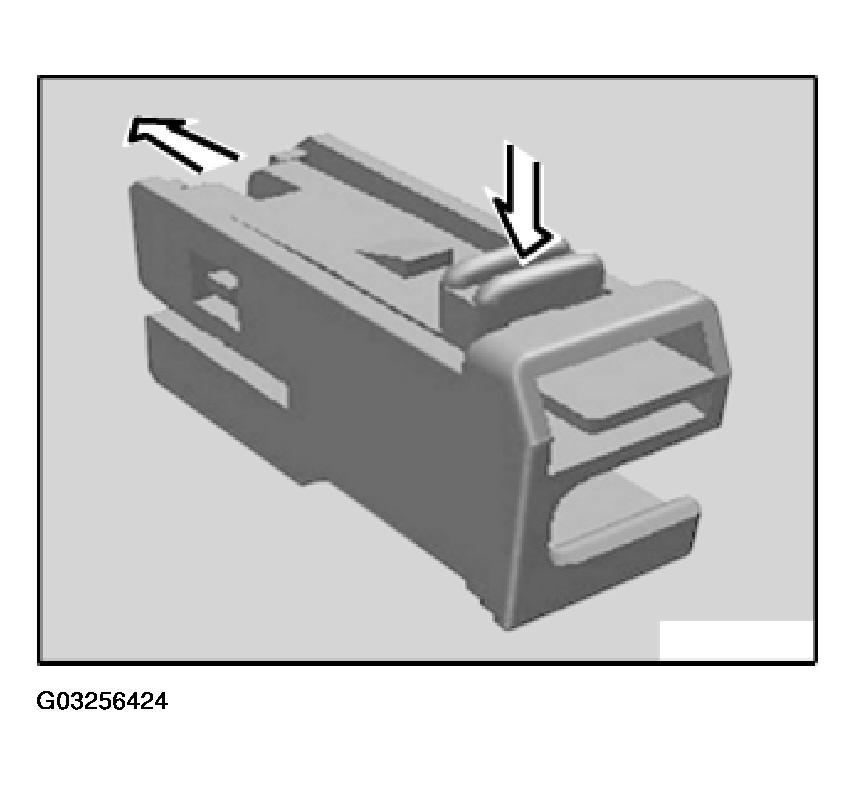

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Disconnect Plug Connection (6 Of 9)

G03256424

Courtesy of BMW OF NORTH AMERICA, INC.

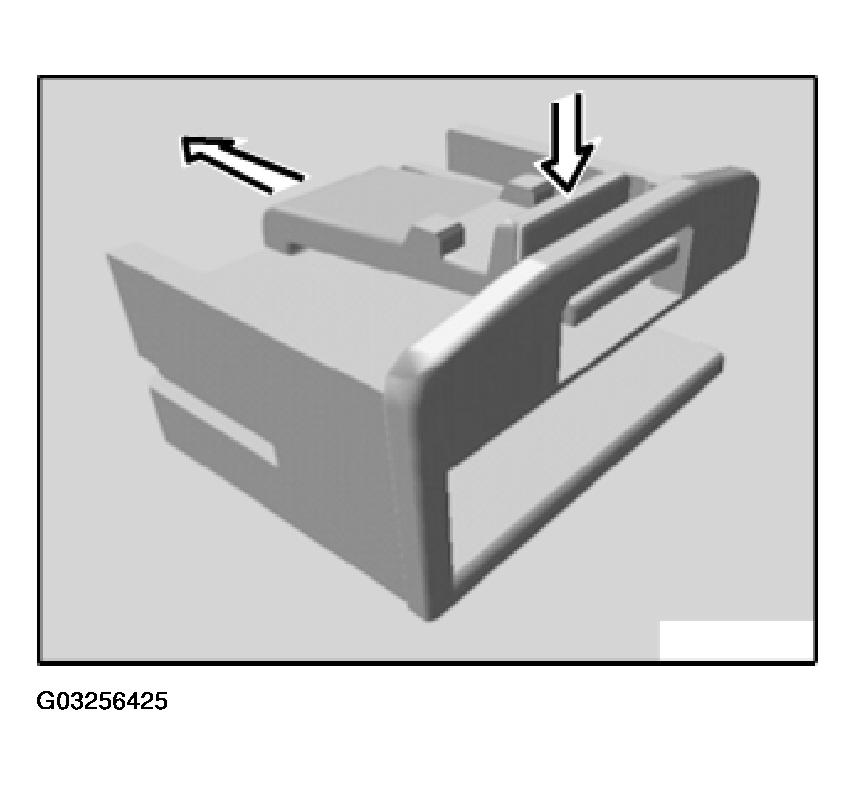

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Disconnect Plug Connection (7 Of 9)

G03256425

Courtesy of BMW OF NORTH AMERICA, INC.

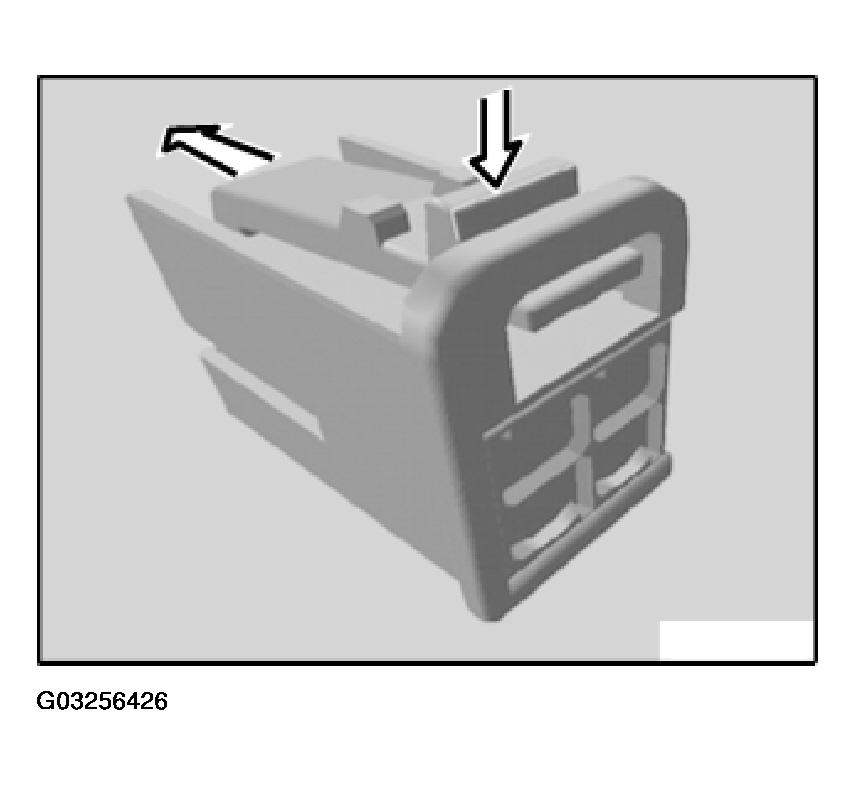

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Disconnect Plug Connection (8 Of 9)

G03256426

Courtesy of BMW OF NORTH AMERICA, INC.

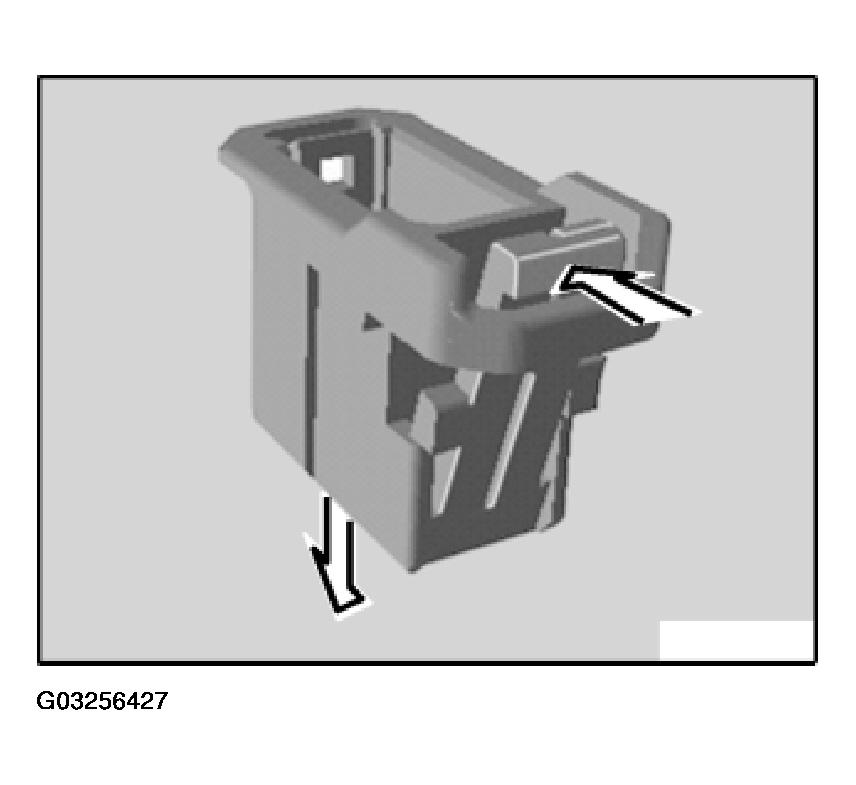

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Disconnect Plug Connection (9 Of 9)

G03256427

Courtesy of BMW OF NORTH AMERICA, INC.
