61 31 992 Replacing level switch for windshield washer system

WARNING: This page is about a different variant/trim than selected.

Disconnect plug connection (1).

Turn windshield washer system level switch (2) approx. 90° in direction of arrow and pull out towards bottom.

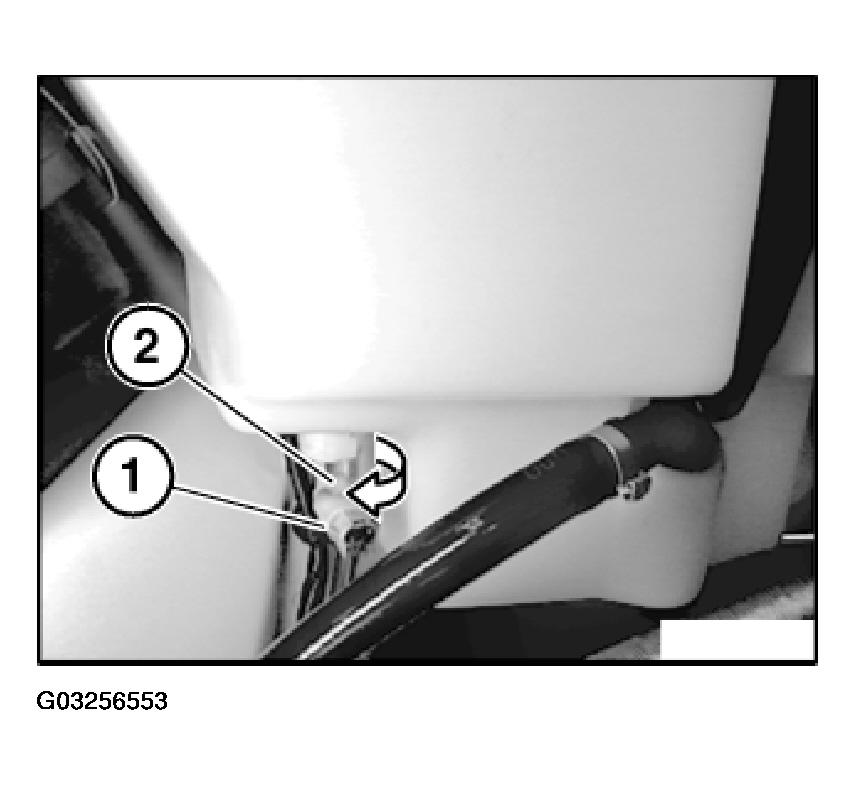

Fig 1: Replacing Windshield Washer System Level Switch
G03256553Courtesy of BMW OF NORTH AMERICA, INC.
