61 31 224 Replacing switch on impact cushion for left or right airbag
WARNING: This page is about a different variant/trim than selected.
Remove airbag unit from steering wheel, for 2002 models refer to DRIVER-SIDE AIR BAG MODULE , or for 2003 models refer to DRIVER-SIDE AIR BAG MODULE .

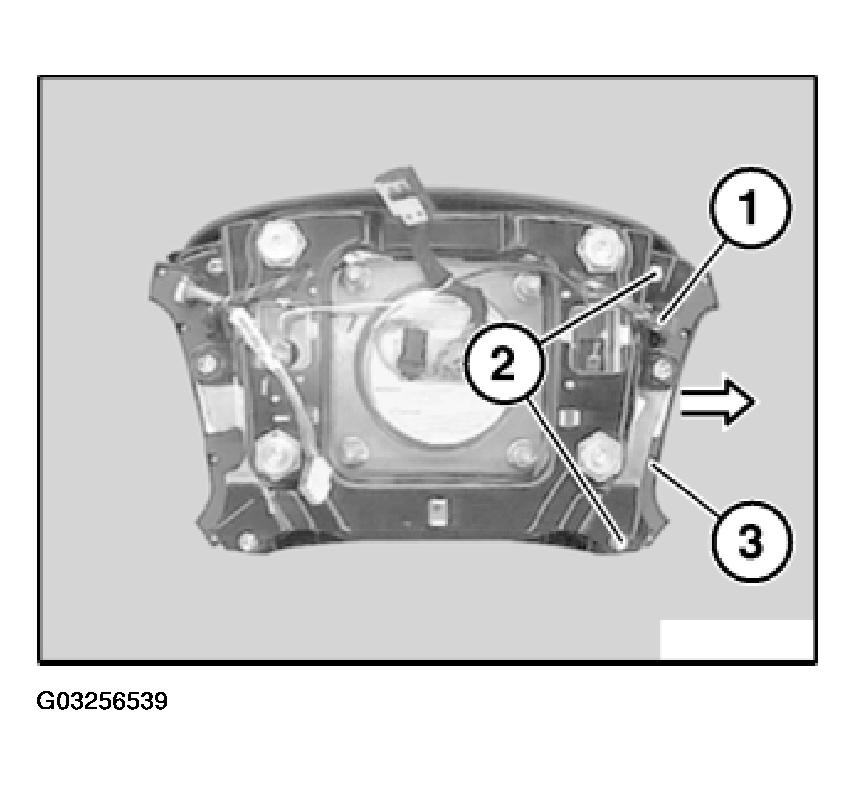

Illustration shows removal of switch on impact cushion for airbag on left
Disconnect plug connection (1).
Loosen screws (2).
Remove switch on impact cushion for airbag (3) in direction of arrow.
