61 31 175 Removing and installing/replacing switch for slide/tilt sunroof

WARNING: This page is about a different variant/trim than selected.

Remove front ceiling light, refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (FRONT AND REAR) .

Press out switch for sunroof (1) from inside.

Disconnect plug connection.

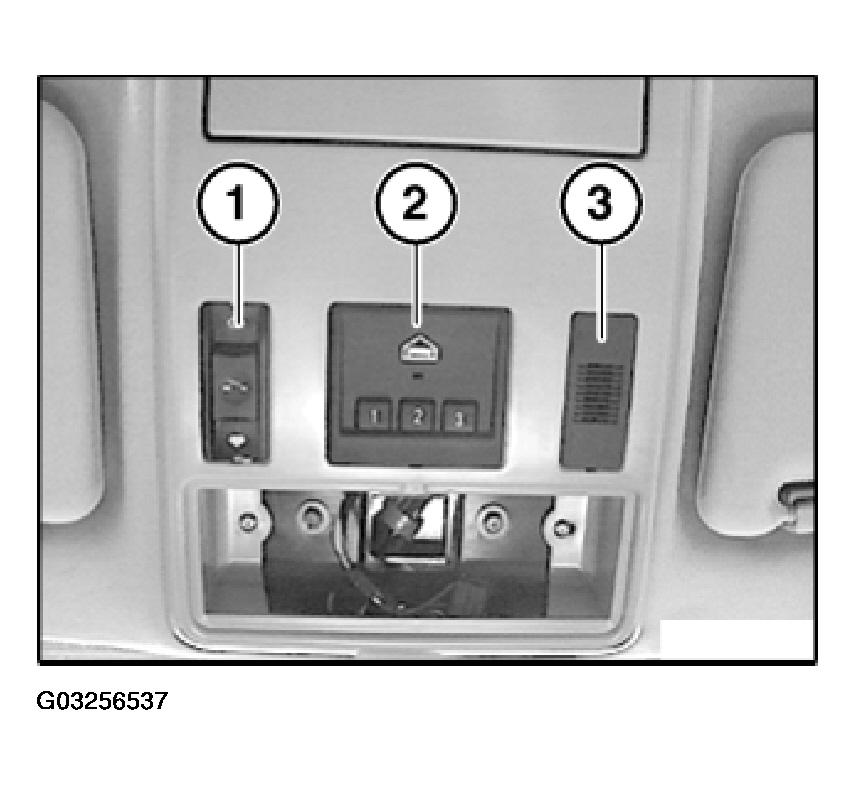

Fig 1: Removing And Installing/Replacing Slide/Tilt Sunroof Switch
G03256537Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Initialize sunroof.

(2)=Remote control for garage door opening.

(3)=Hands-free microphone.
