Front Door

WARNING: This page is about a different variant/trim than selected.

Lever out door switch center (1) in direction of arrow.

Disconnect associated plug connection(s) and remove door switch center (1).

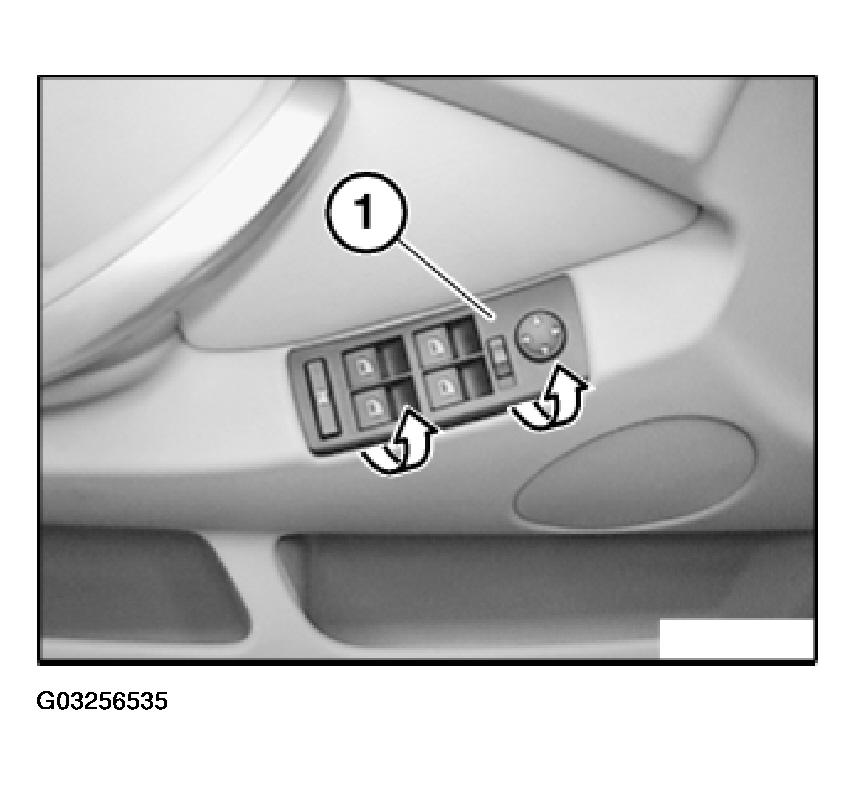

Fig 1: Removing Rocker Switch For Front Side Window Operation (Door Switch Center)
G03256535Courtesy of BMW OF NORTH AMERICA, INC.
