61 31 035 Removing and installing/replacing stalk for steering column adjustment

Remove lower section of steering column trim, refer to STEERING COLUMN TRIM (LOWER SECTION) .

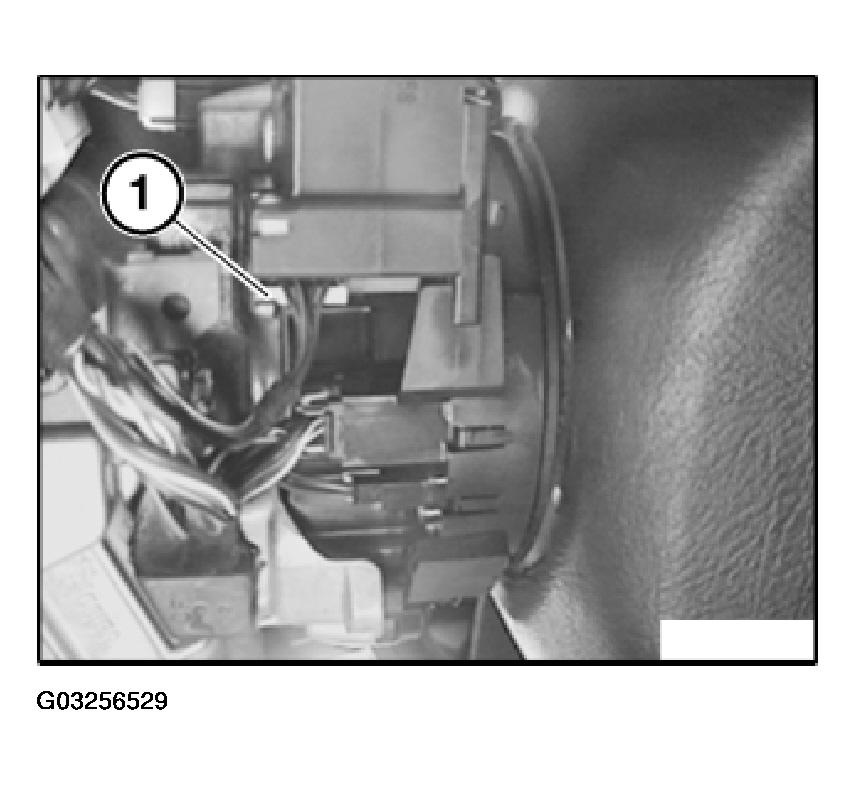

Disconnect plug connection (1).

Fig 1: Disconnecting Steering Column Adjustment Stalk Harness Connector

Courtesy of BMW OF NORTH AMERICA, INC.

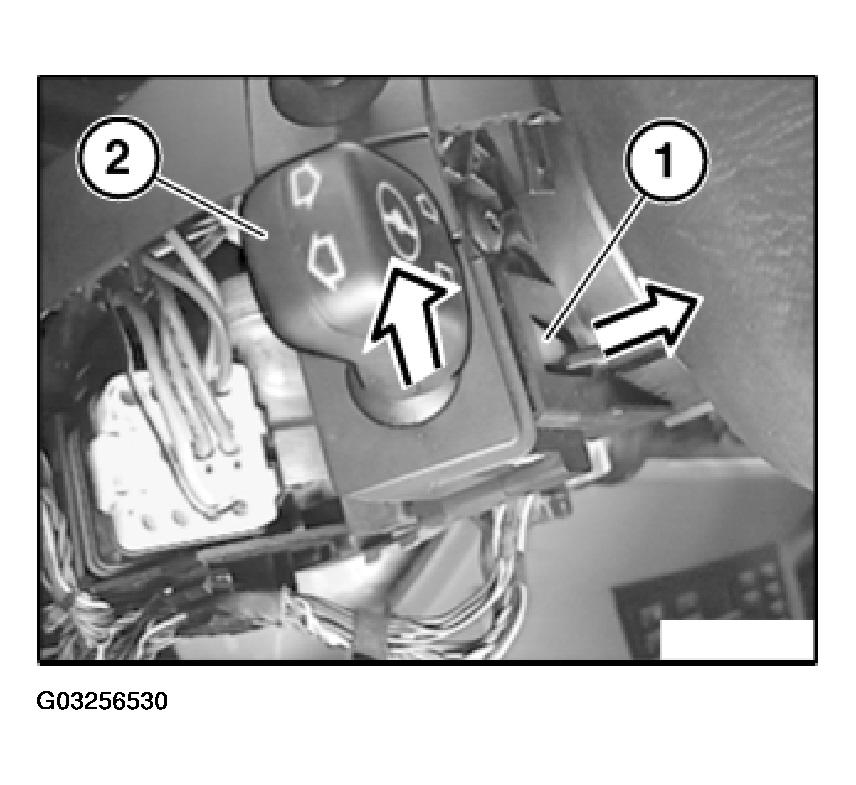

Raise lock (1) in direction of arrow and pull out stalk for steering column adjustment (2) in direction of arrow.

Fig 2: Removing Steering Column Adjustment Stalk

Courtesy of BMW OF NORTH AMERICA, INC.
