61 31 020 Removing and installing ignition switch

WARNING: This page is about a different variant/trim than selected.

Remove top section of steering column casing, refer to STEERING COLUMN TRIM (UPPER SECTION) .

Remove lower section of steering column trim, refer to STEERING COLUMN TRIM (LOWER SECTION) .

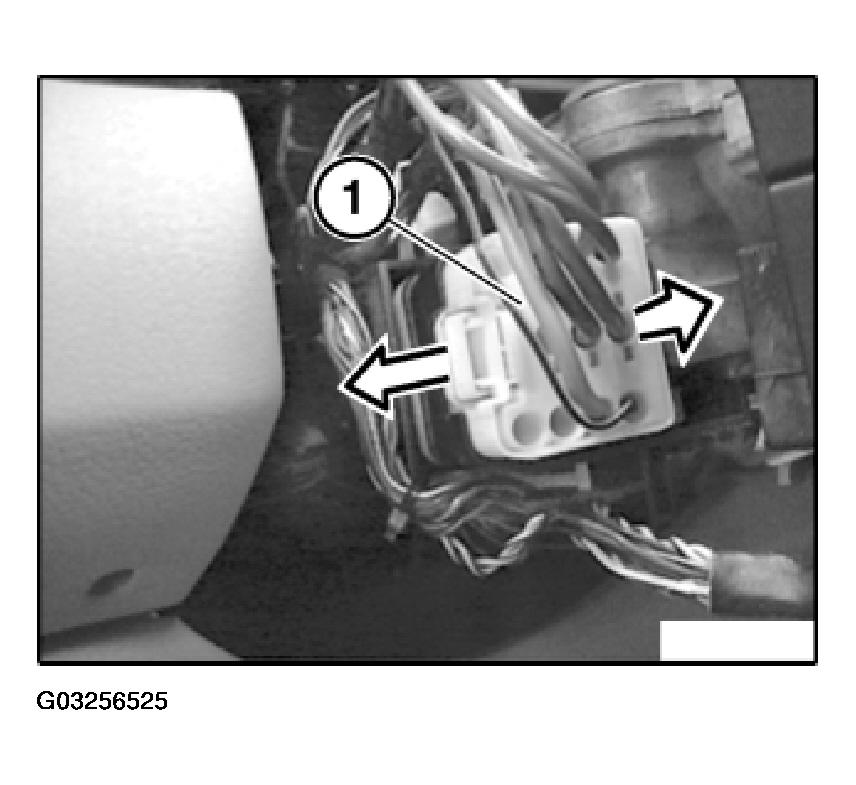

Unlock plug connection (1) and disconnect.

Fig 1: Disconnecting Ignition Switch Harness Connector

Courtesy of BMW OF NORTH AMERICA, INC.

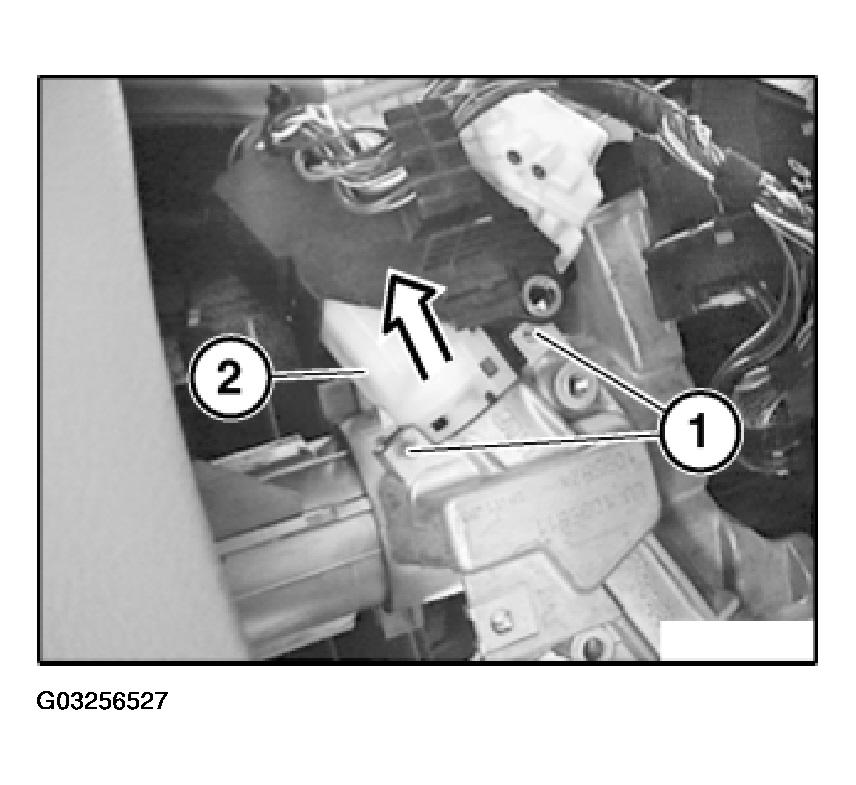

Loosen screws (1).

Move fixture (2) for wiring harness slightly.

Fig 2: Loosening Wiring Harness Fixture Screws

Courtesy of BMW OF NORTH AMERICA, INC.

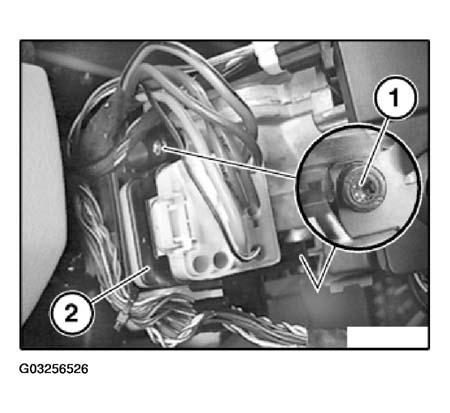

Remove sealing varnish and release headless setscrews (1).

Fig 3: Removing Ignition Switch Headless Setscrews

Courtesy of BMW OF NORTH AMERICA, INC.

Detach ignition switch (2) in direction of arrow.

Installation:

Secure headless setscrews with sealing varnish.
