61 31 005 Removing and installing/replacing fixture for steering column stalk

WARNING: This page is about a different variant/trim than selected.

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

With steering wheel removed, do not under any circumstances turn/twist fixture for steering column stalk!

Necessary preliminary tasks:

Remove steering wheel, refer to STEERING WHEEL .
Remove lower section of steering column trim, refer to STEERING COLUMN TRIM (LOWER SECTION) .
Remove top section of steering column casing, refer to STEERING COLUMN TRIM (UPPER SECTION) .

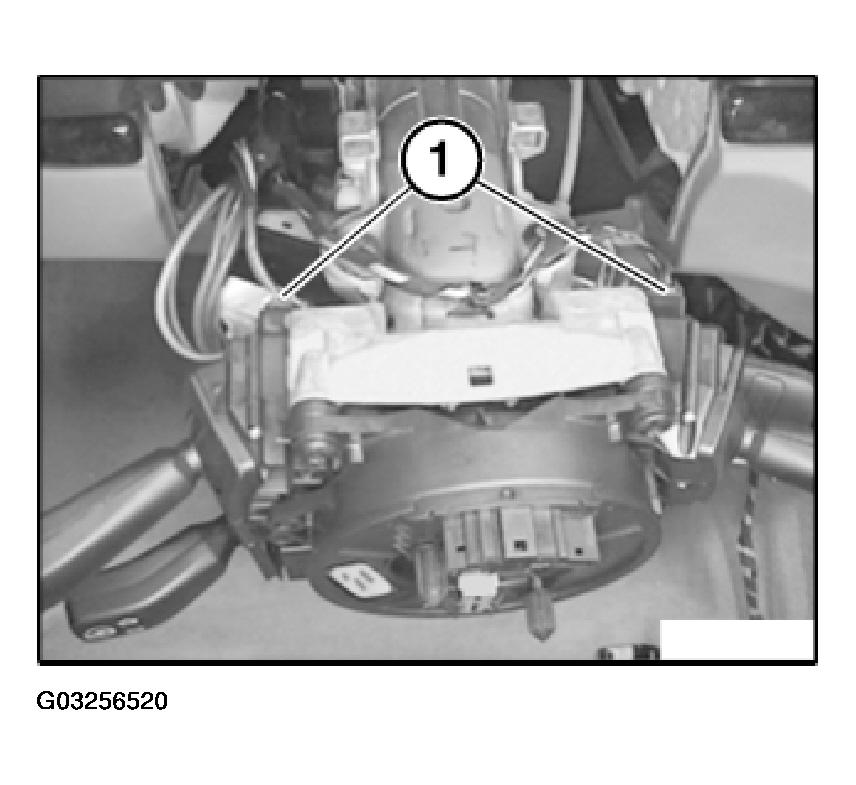

Unlock and disconnect plug connections (1) on turn indicator/headlight dipping stalk and on windscreen wiper stalk.

Fig 1: Disconnecting Turn Indicator/Headlight Dipping Stalk Harness Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

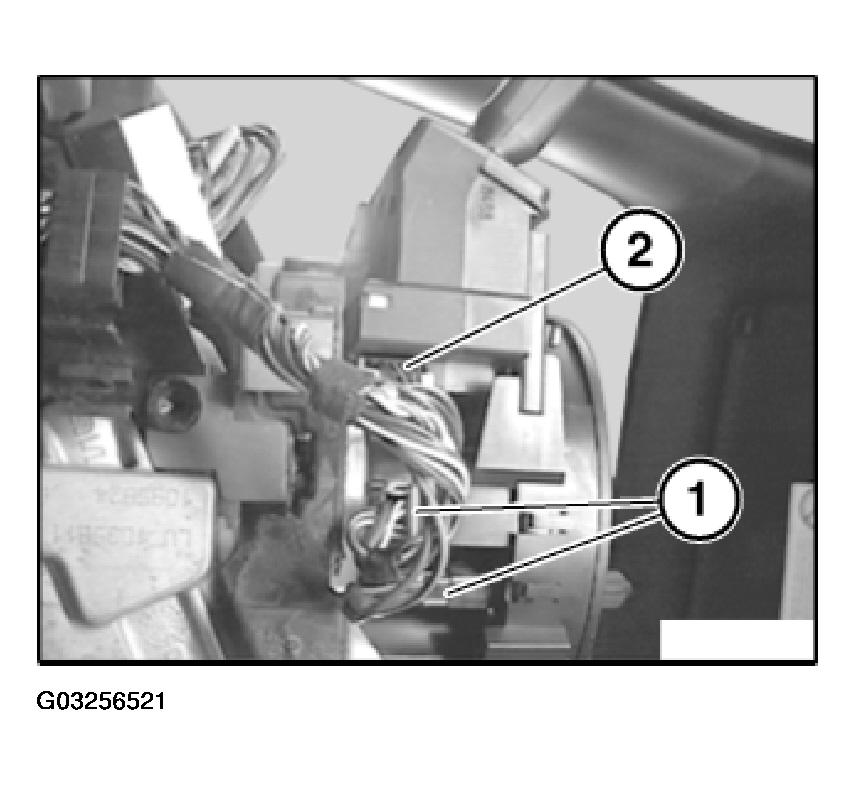

Unlock and disconnect plug connections (1) on fixture for steering column stalk.

If necessary, unlock and disconnect plug connection (2) on steering column adjustment stalk.

Fig 2: Disconnecting Steering Column Adjustment Stalk Harness Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

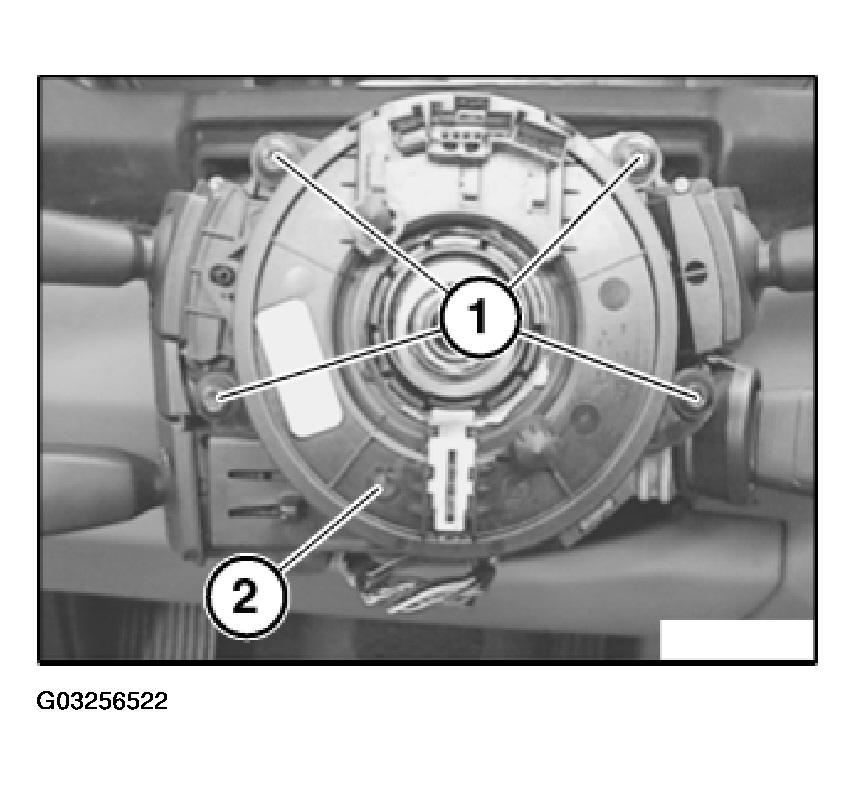

Release screws (1).

Remove fixture for steering column stalk (2).

Fig 3: Removing Steering Column Stalk Screws

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: When removed, the cover (1) of the fixture for the steering column stalk (2) is secured against turning/twisting by the lock (3).

Do not under any circumstances twist the cover (1) out of its centered position against the fixture for the steering column stalk (2).

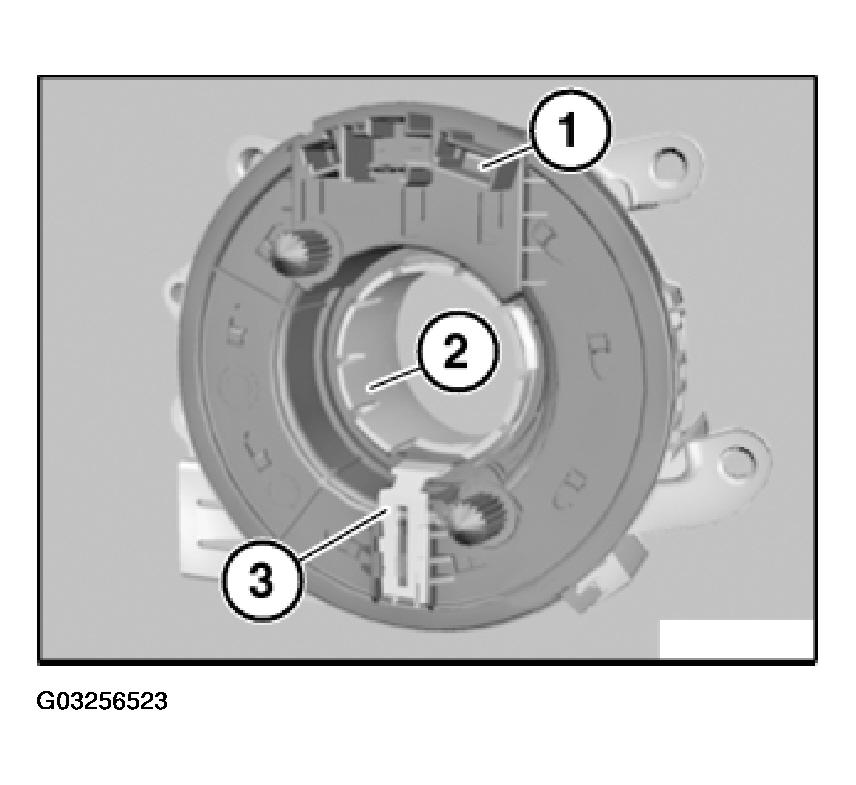

Fig 4: Identifying Steering Column Stalk Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

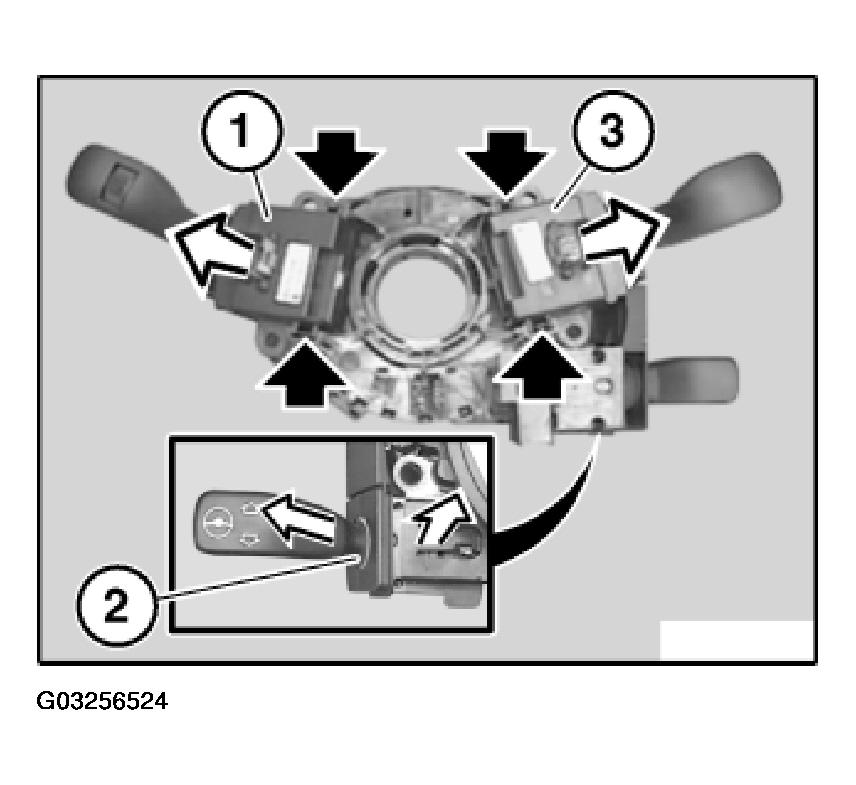

Unlock clips and pull out stalk for windscreen wipers (1).

NOTE: If necessary, remove steering column adjustment stalk (2).

Raise lock in direction of arrow and pull out stalk for steering column adjustment (2) in direction of arrow.

Unlock clips and pull out turn indicator/dimmer stalk (3) towards top.

Fig 5: Removing Windscreen Wipers, Turn Indicator/Dimmer Stalk & Steering Column Adjustment Stalk

Courtesy of BMW OF NORTH AMERICA, INC.
