61 62 110 Removing and installing/replacing spray nozzle for rear window washer unit: Procedure

WARNING: This page is about a different variant/trim than selected.

Lever spray nozzle for rear window washer system (1) with special tool 00 9 317 out of spray nozzle holder (2).

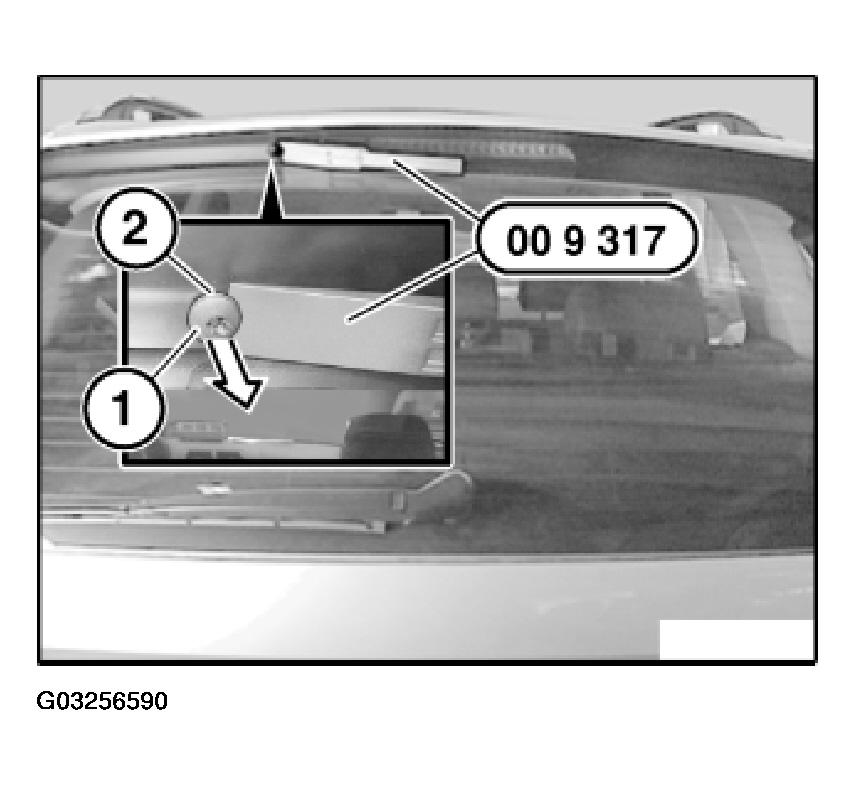

Fig 1: Removing Spray Nozzle For Rear Window Washer Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert lug (2) of spray nozzle for rear window washer system (1) into groove of spray nozzle holder.

Replacement only:

Adjusting spray nozzle on rear window washer unit.

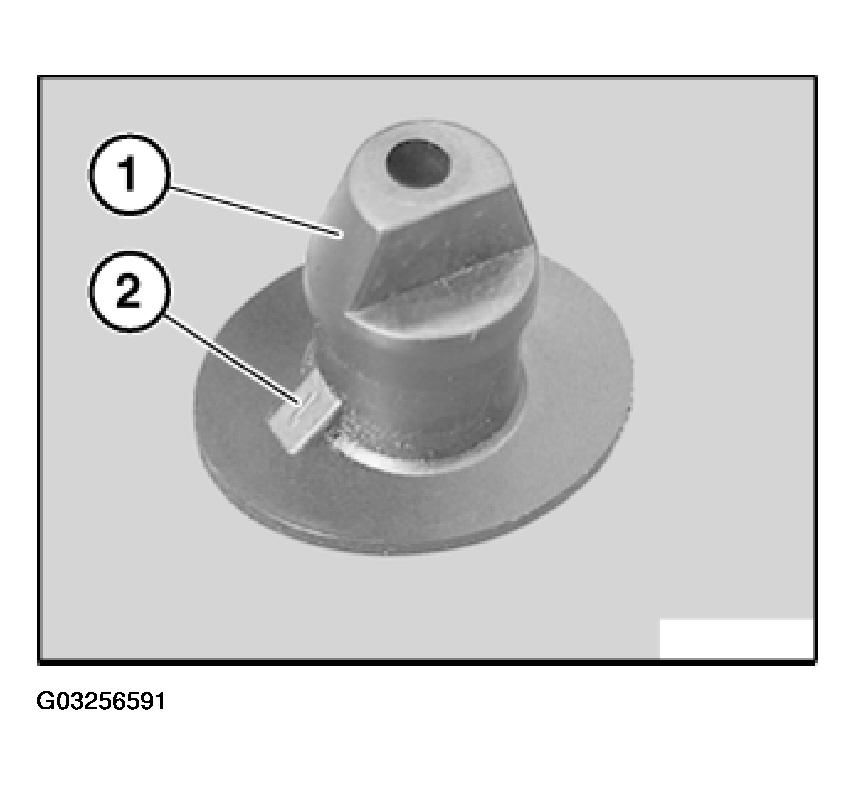

Fig 2: Installing Spray Nozzle For Rear Window Washer System

Courtesy of BMW OF NORTH AMERICA, INC.
