61 62 100 Adjusting jet nozzle for rear window washer unit

WARNING: This page is about a different variant/trim than selected.

NOTE: The spray must meet the contact point (1).

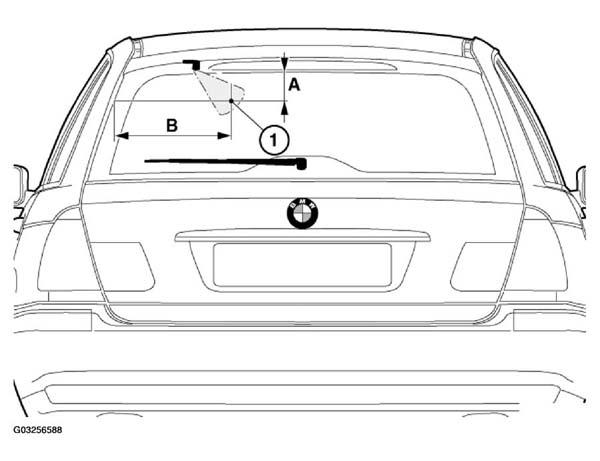

Fig 1: Identifying Rear Window Washer Spray Pattern

Courtesy of BMW OF NORTH AMERICA, INC.

MEASUREMENT

IMPORTANT: Do not insert any pointed objects in nozzle (risk of damage).

Mark contact point with crepe tape. Adjust jet nozzle with offset screwdriver (3.5 mm) in slot.

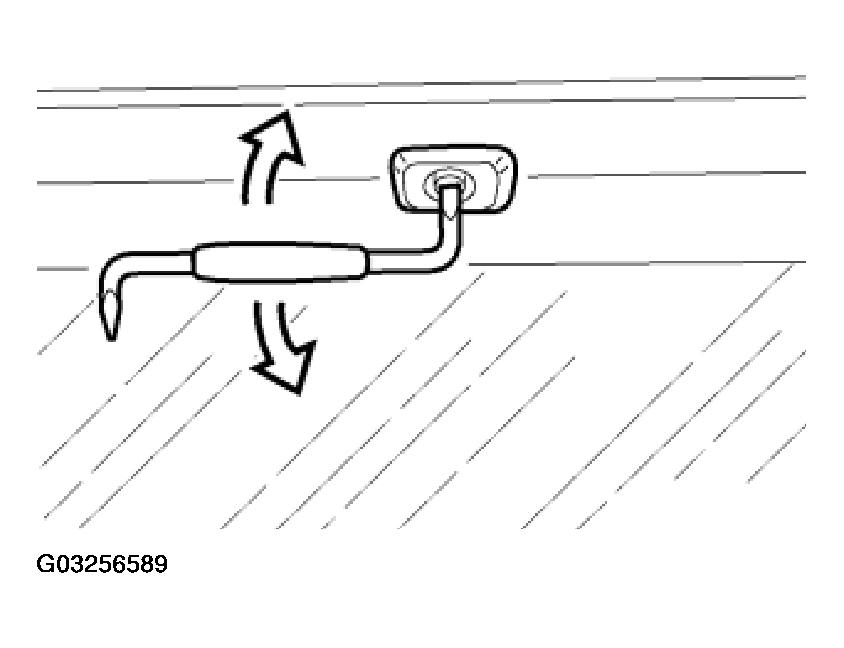

Fig 2: Adjusting Jet Nozzle With Offset Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
